Steel DIN 3 Rail

7.5mm Deep, 1m Long

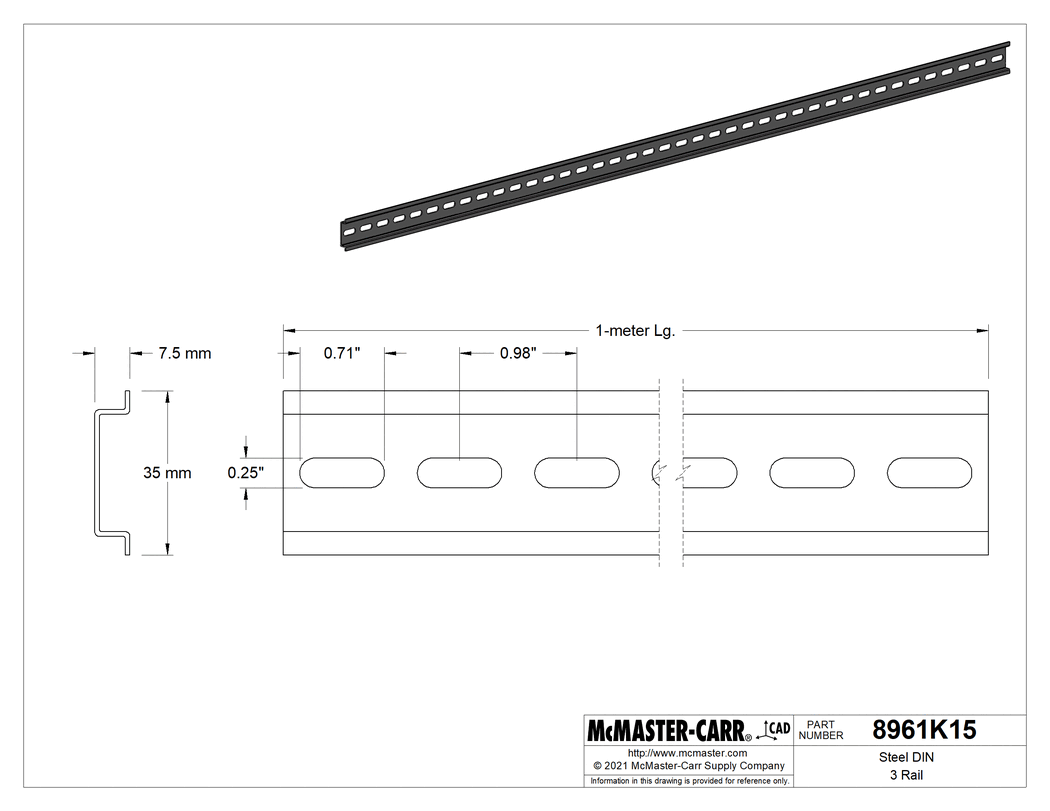

Technical Drawing of Steel DIN 3 Rail, 7.5mm Deep, 1M Long.

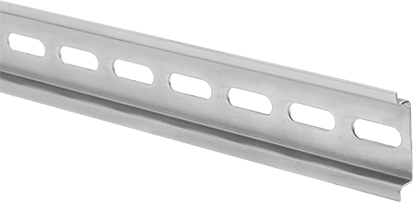

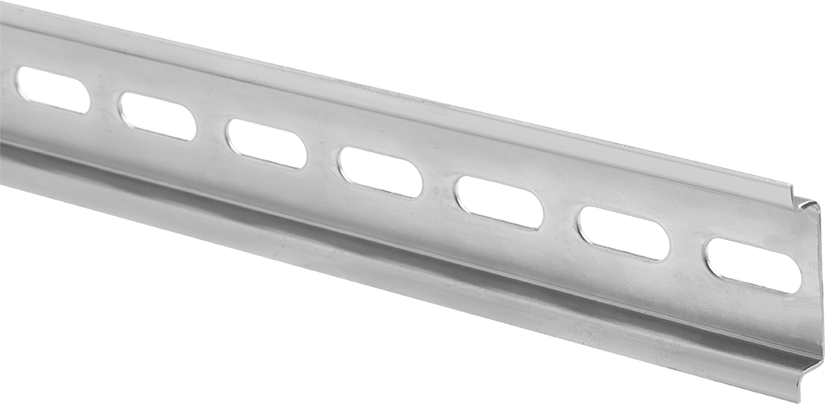

Image of Product. Side1 orientation. Contains SizingReference. Steel DIN 3 Rail, 7.5mm Deep, 1M Long.

2-D PDF

00000 each

8961K15

In stock

8961K15

00000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

DIN Rail Trade Size	3
Height	35 mm
Length	1 m
Depth	7.5 mm
Material	Zinc-Plated Steel
Mounting Fasteners Included	No
Mounting Holes
Diameter	6.3 mm
Center-to-Center	25 mm
Specifications Met	EN 50022, EN 60715
Country of Origin	Italy
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	830241.8075
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

Mount terminal blocks, relays, and other devices onto flat surfaces. These rails are often used in electrical enclosures, server racks, and equipment cabinets.

Zinc-Plated Steel—Strong and durable. These rails have zinc plating to protect them from occasional exposure to moisture.

DIN Rail Trade Size—We gave each type of rail a trade size to help you quickly find compatible parts. DIN 3 is the most common type of rail—it's also called top hat or standard rail. DIN 2 is a smaller version of DIN 3, so it's also known as mini rail. DIN 1 is also known as G-section rail.
