    Wire-Lockable Rounded Head Screws

    6-32 Thread Size, 1/2" Long

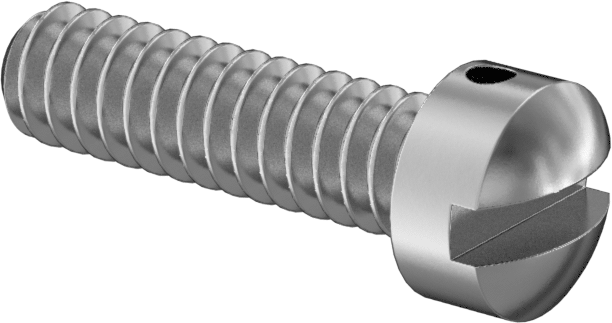

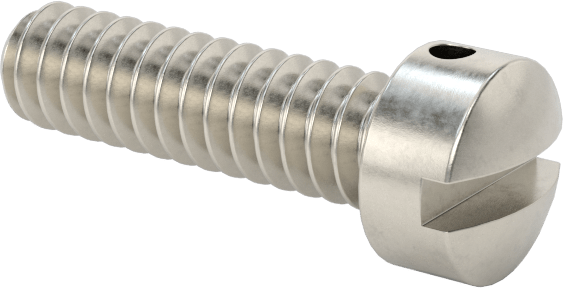

    Image of Product. Front orientation. Wire-Lockable Rounded Head Screws, 6-32 Thread Size, 1/2" Long.

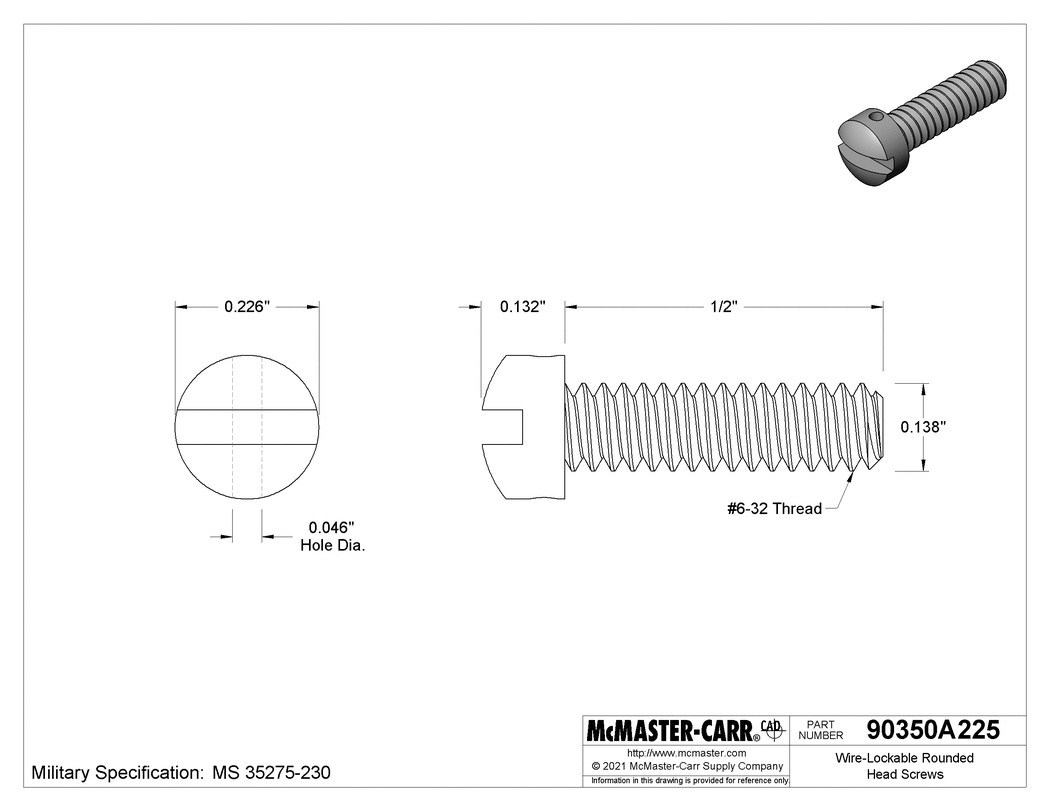

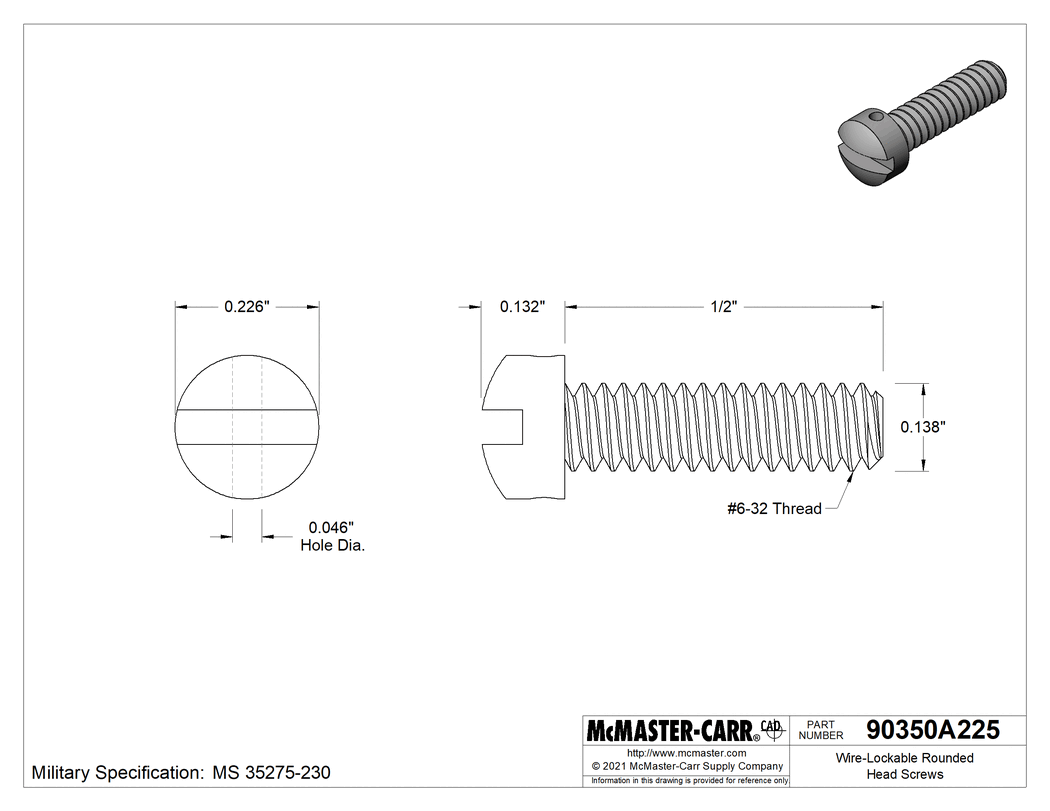

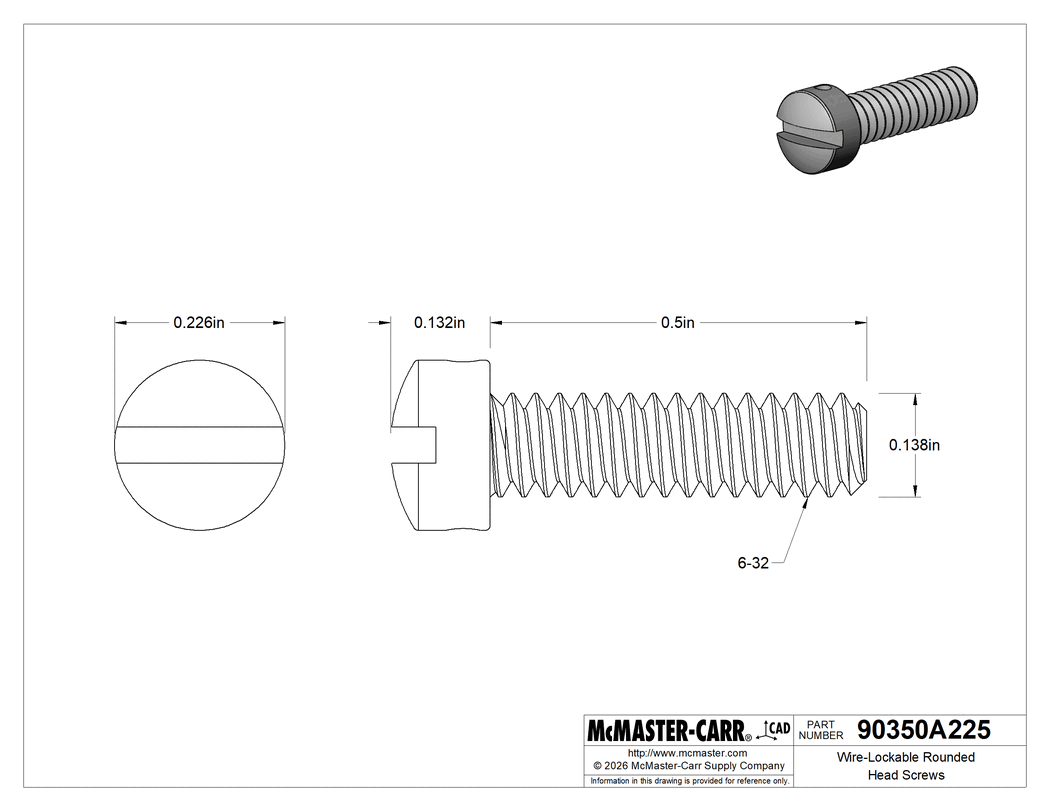

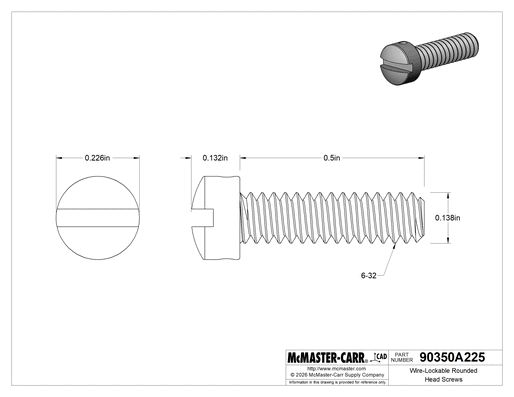

    Technical Drawing of Wire-Lockable Rounded Head Screws, 6-32 Thread Size, 1/2" Long.

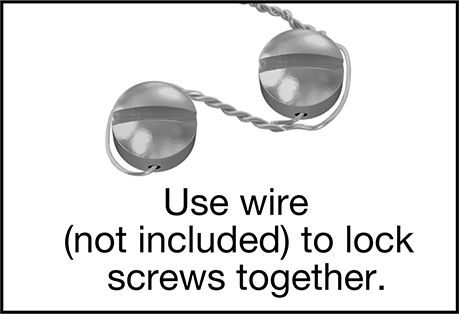

    Image of ProductInUse. Front orientation. Contains Annotated, Border. Wire-Lockable Rounded Head Screws, 6-32 Thread Size, 1/2" Long.
    2-D PDF
    000000 per pack of 10
    90350A225
    Delivers tomorrow 7-9 am
    90350A225
    000000 per pack of 10
    Pack of 10
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Locking Type

    Wire

    Thread

    Size

    6-32

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Fillister

    Profile

    High, Narrow

    Height

    0.132"

    Diameter

    0.226"

    Drive Style

    Slotted

    Material

    18-8 Stainless Steel

    Length

    1/2"

    Hole Diameter

    0.046"

    Threading

    Fully Threaded

    Tensile Strength

    80,000 psi

    Specifications Met

    Fed. Spec. QQ-P-35, NASM35275

    Military Specification

    AN500AD6-8, MS35275-230

    Certification

    Mil. Spec.

    Hardness

    Not Rated

    Passivation

    Passivated

    Performance

    Corrosion Resistant, Vibration Resistant

    Screw Size Decimal Equivalent

    0.138"

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    Stainless Steel Wire

    The best vibration resistance of our rounded head screws. Secure a wire through the hole in the head of these screws to lock them in place. Unlike screws with threadlocker or lock washers, they handle more vibration and movement, but they're more difficult to install. Made of stainless steel, they won't rust or corrode when exposed to moisture and chemicals. With a deeper drive than others, fillister heads reduce the likelihood that basic slotted drivers slip as you hand-tighten them.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

    Military Specification—These screws are manufactured and tested to meet strict U.S. military standards for material and construction.

    Stainless Steel Wire—Thread this stainless steel wire through screws to lock them together.
