    Extra-Wide Truss Head Phillips Screws

    Passivated 18-8 Stainless Steel, 10-32 Thread, 1/2" Long

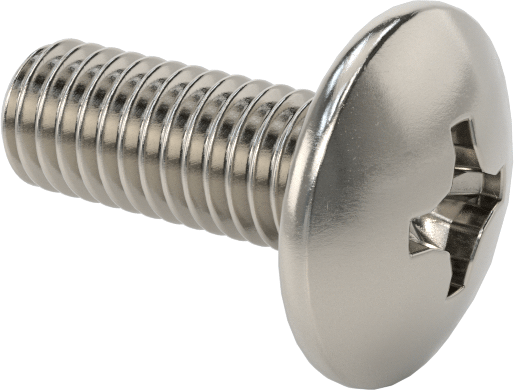

    Image of Product. Front orientation. Extra-Wide Truss Head Phillips Screws, Passivated 18-8 Stainless Steel, 10-32 Thread, 1/2" Long.

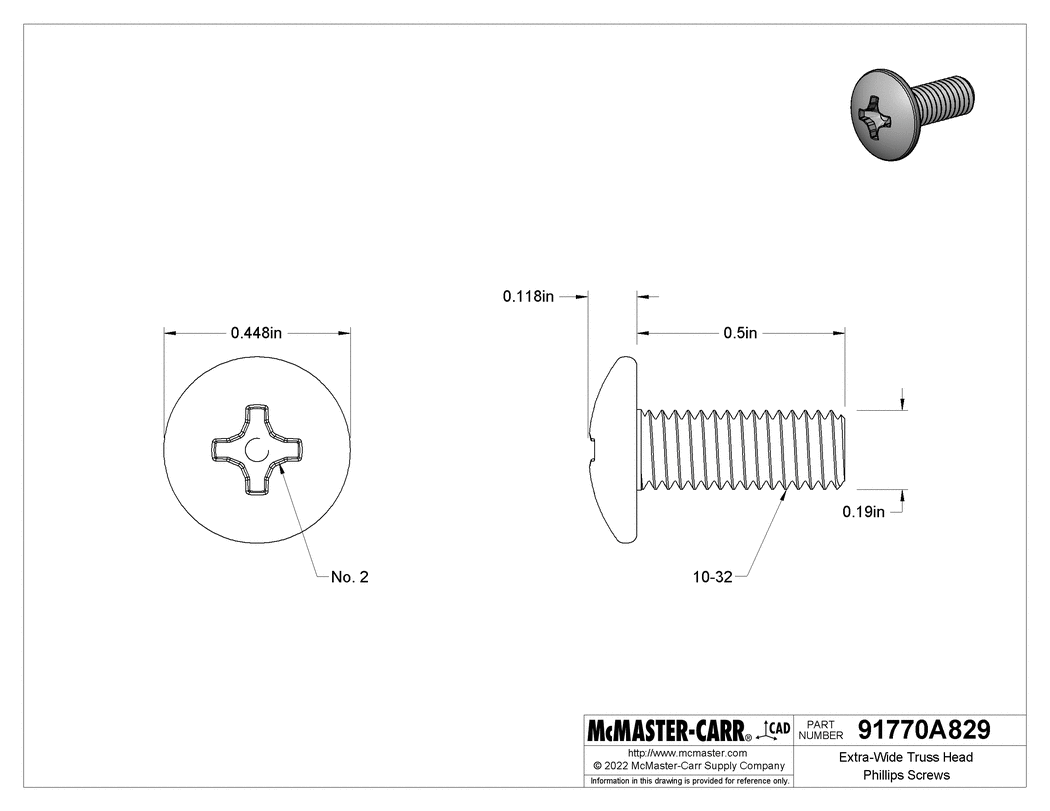

    Technical Drawing of Extra-Wide Truss Head Phillips Screws, Passivated 18-8 Stainless Steel, 10-32 Thread, 1/2" Long.
    Image of Product. Back orientation. Extra-Wide Truss Head Phillips Screws, Passivated 18-8 Stainless Steel, 10-32 Thread, 1/2" Long.

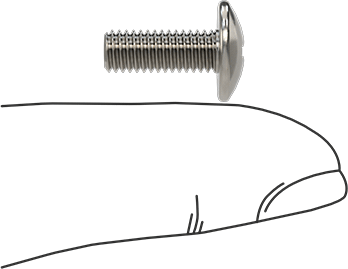

    Image of Product. Side1 orientation. Contains SizingReference. Extra-Wide Truss Head Phillips Screws, Passivated 18-8 Stainless Steel, 10-32 Thread, 1/2" Long.
    2-D PDF
    000000 per pack of 100
    91770A829
    Delivers Monday 7-9 am
    91770A829
    000000 per pack of 100
    Pack of 100
    Delivers Monday 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    10-32

    Direction

    Right Hand

    Spacing

    Fine

    Type

    UNF

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Truss

    Profile

    Wide

    Height

    0.118"

    Diameter

    0.448"

    Drive

    Style

    Phillips

    Size

    No. 2

    Material

    18-8 Stainless Steel

    Length

    1/2"

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    ASME B18.6.3

    Hardness

    Rockwell B70

    Passivation

    Passivated

    Performance

    Corrosion Resistant

    Screw Size Decimal Equivalent

    0.190"

    System of Measurement

    Inch

    Country of Origin

    China, Taiwan, Thailand

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Our most corrosion-resistant truss head Phillips screws. Their wide head spreads out pressure without adding a washer and reduces the risk of crushing thin material, such as sheet metal. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from under the head.

    18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
