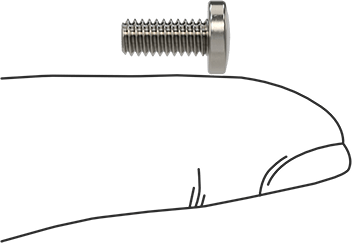

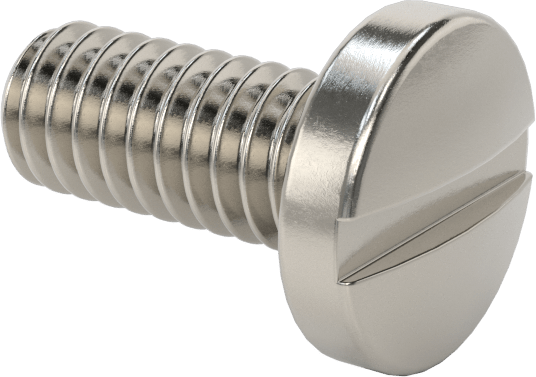

316 Stainless Steel Pan Head Slotted Screws
8-32 Thread Size, 3/8" Long
Thread | |
Size | 8-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.096" |
Diameter | 0.322" |
Drive Style | Slotted |
Material | 316 Stainless Steel |
Length | 3/8" |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B85 |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The most corrosion-resistant pan head slotted screws we offer. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

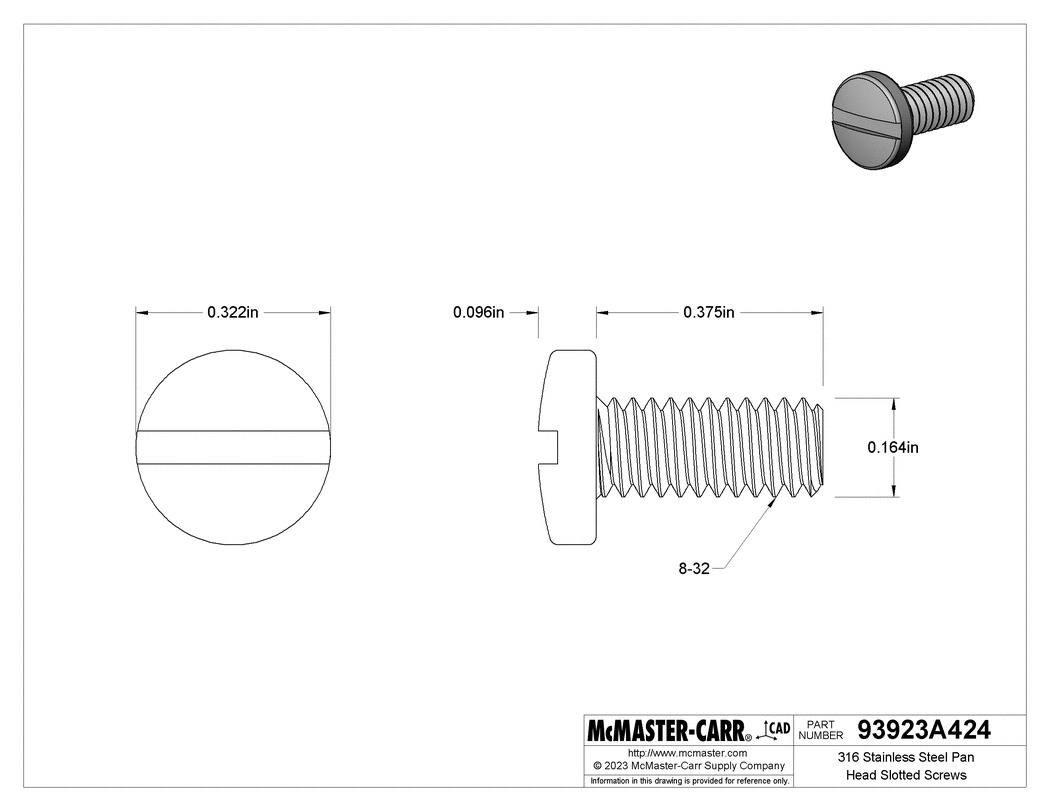

The information in this 3-D model is provided for reference only.
