About Rod Ends
More
About Hinges
More
Miniature Hinges
With leaf heights under 1/4", these tiny hinges are the smallest we offer. All have a nonremovable pin to deter tampering.
For technical drawings and 3-D models, click on a part number.
Door Leaf | Frame Leaf | Each | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Ht. | Wd. | O'all Wd. | Leaf Thick. | Range of Motion | 1-9 | 10-Up | |
Brass—Dull | |||||||||
| 3/16" | 9/32" | 3/16" | 9/32" | 9/16" | 0.036" | 180° | 0000000 | 00000 | 00000 |

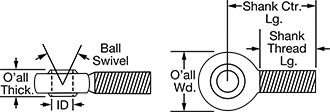

Internally Threaded Ultra-Precision Ball Joint Rod Ends
Made to extremely tight tolerances, these rod ends are for applications that require positioning accuracy, such as accelerators and other types of control linkages. Rod ends are steel and generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They have a heat-treated steel ball for added strength and a brass insert for smooth operation.
Zinc- and cadmium-plated rod ends provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Shank Thread Direction | Each | |
| 8-32 | 5/32" | 12° | 9/16" | 9/32" | 7/8" | 3/8" | 1,700 | Cadmium-Plated Carbon Steel | Right Hand | 0000000 | 000000 |

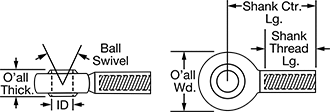

Ultra-Precision Ball Joint Rod Ends
Made to extremely tight tolerances, these rod ends are for applications that require positioning accuracy, such as accelerators and other types of control linkages. Rod ends are steel and generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They have a heat-treated steel ball for added strength and a brass insert for smooth operation.
Zinc- and cadmium-plated rod ends provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Shank Thread Direction | Each | |
| 8-32 | 5/32" | 12° | 9/16" | 9/32" | 1 1/8" | 5/8" | 650 | Cadmium-Plated Carbon Steel | Right Hand | 0000000 | 000000 |
