Message Type Message Type |
|---|
 |  |
| Identification | Made to Order |
Message Message |
|---|
|
Language Language |
|---|
|
Mount Type Mount Type |
|---|
 |  |
| Adhesive | Wraparound |
For Minimum Pipe OD For Minimum Pipe OD |
|---|
|
For Pipe OD For Pipe OD |
|---|
Message Contains Message Contains |
|---|
|
Material Material |
|---|
|
Visibility Visibility |
|---|
|
Minimum Temperature Minimum Temperature |
|---|
|
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration,Evaluation, Authorization and Restriction of Chemicals) |
|---|
|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
About Selecting Pipe Markers
More

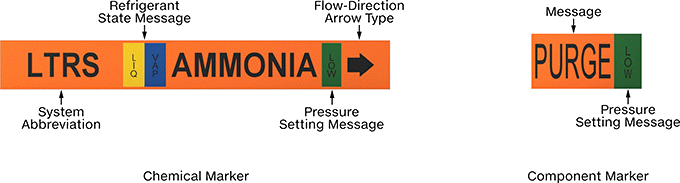

Made-to-Order Adhesive-Back Pipe Markers
Specify the message you need to label the contents of a pipe (two lines maximum, up to 50 characters per line, including spaces). Apply these markers directly onto clean, dry pipes.
ANSI/ASME 13.1 requires that, for a given pipe OD, markers have a minimum character height, identify contents with a message, indicate flow direction with an arrow, and designate hazard classifications with a specific marker color. In order to meet the standard, pair these markers with an adhesive-back arrow pipe marker and choose the color that best identifies the hazardous properties of the contents according to the ANSI/ASME designations.
For technical drawings and 3-D models, click on a part number.
| For Pipe OD | Character Ht. | Ht. | Wd. | Thick. | Flow-Direction Arrow | Material | Temp. Range, °F | Pkg. Qty. | Pkg. | |
Made to Order (English, English/Spanish, Spanish) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Blue with White Message | ||||||||||
| 3/4"-2" | 3/4" | 2" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 00000000 | 000000 |
| 2 1/4"-7 7/8" | 1 1/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 5 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 4" | 24" | 0.003" | No | Vinyl Plastic | -40° to 170° | 1 | 00000000 | 0000 |
Green with White Message | ||||||||||
| 3/4"-2" | 3/4" | 2" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 00000000 | 00000 |
| 2 1/4"-7 7/8" | 1 1/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 5 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 4" | 24" | 0.003" | No | Vinyl Plastic | -40° to 170° | 1 | 00000000 | 0000 |
Orange with Black Message | ||||||||||
| 3/4"-2" | 3/4" | 2" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 00000000 | 00000 |
| 2 1/4"-7 7/8" | 1 1/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 5 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 4" | 24" | 0.003" | No | Vinyl Plastic | -40° to 170° | 1 | 00000000 | 0000 |
Red with White Message | ||||||||||
| 3/4"-2" | 3/4" | 2" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 00000000 | 00000 |
| 2 1/4"-7 7/8" | 1 1/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 5 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 4" | 24" | 0.003" | No | Vinyl Plastic | -40° to 170° | 1 | 00000000 | 0000 |
Yellow with Black Message | ||||||||||
| 3/4"-2" | 3/4" | 2" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 00000000 | 00000 |
| 2 1/4"-7 7/8" | 1 1/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 5 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 4" | 24" | 0.003" | No | Vinyl Plastic | -40° to 170° | 1 | 00000000 | 0000 |
Made-to-Order Snap-On Pipe Markers
Specify the message you need to label the contents of a pipe (two lines maximum, up to 50 characters per line, including spaces). These markers coil around pipes so they stay in place without adhesive. Markers for pipe OD 6" and larger secure with included nylon cable ties.
ASME A13.1 requires that, for a given pipe OD, markers have a minimum character height, identify contents with a message, indicate flow direction with an arrow, and designate hazard classifications with a specific marker color. For messages with multiple marker color options, choose the color that best identifies the hazardous properties of the contents according to the ASME designations.
For technical drawings and 3-D models, click on a part number.
| For Pipe OD | Character Ht. | Ht. | Wd. | Thick. | Flow-Direction Arrow | Material | Temp. Range, °F | Specifications Met | Each | |
Made-to-Order Message (English, English/Spanish, Spanish) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Blue with White Message | ||||||||||
| 1/2"-1" | 1/2" | 6" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 1 1/8"-2 1/4" | 3/4" | 8 1/2" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 2 3/8"-3 1/4" | 1 1/4" | 12" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 3 3/8"-4 1/2" | 1 1/4" | 17" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 4 5/8"-5 7/8" | 1 1/4" | 21" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 6"-7 7/8" | 1 1/4" | 8" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 10" | 24" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 10 1/8"-15" | 3 1/2" | 10" | 32" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
Green with White Message | ||||||||||
| 1/2"-1" | 1/2" | 6" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 1 1/8"-2 1/4" | 3/4" | 8 1/2" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 2 3/8"-3 1/4" | 1 1/4" | 12" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 3 3/8"-4 1/2" | 1 1/4" | 17" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 4 5/8"-5 7/8" | 1 1/4" | 21" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 6"-7 7/8" | 1 1/4" | 8" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 10" | 24" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 10 1/8"-15" | 3 1/2" | 10" | 32" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
Orange with Black Message | ||||||||||
| 1/2"-1" | 1/2" | 6" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 1 1/8"-2 1/4" | 3/4" | 8 1/2" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 2 3/8"-3 1/4" | 1 1/4" | 12" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 3 3/8"-4 1/2" | 1 1/4" | 17" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 4 5/8"-5 7/8" | 1 1/4" | 21" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 6"-7 7/8" | 1 1/4" | 8" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 10" | 24" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 10 1/8"-15" | 3 1/2" | 10" | 32" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
Red with White Message | ||||||||||
| 1/2"-1" | 1/2" | 6" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 1 1/8"-2 1/4" | 3/4" | 8 1/2" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 2 3/8"-3 1/4" | 1 1/4" | 12" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 3 3/8"-4 1/2" | 1 1/4" | 17" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 4 5/8"-5 7/8" | 1 1/4" | 21" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 6"-7 7/8" | 1 1/4" | 8" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 10" | 24" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 10 1/8"-15" | 3 1/2" | 10" | 32" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
Yellow with Black Message | ||||||||||
| 1/2"-1" | 1/2" | 6" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 1 1/8"-2 1/4" | 3/4" | 8 1/2" | 8" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 0000 |
| 2 3/8"-3 1/4" | 1 1/4" | 12" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 3 3/8"-4 1/2" | 1 1/4" | 17" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 4 5/8"-5 7/8" | 1 1/4" | 21" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 6"-7 7/8" | 1 1/4" | 8" | 12" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 8"-10" | 2 1/2" | 10" | 24" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
| 10 1/8"-15" | 3 1/2" | 10" | 32" | 0.02" | Yes | Vinyl Plastic | -40° to 160° | ASME A13.1 | 00000000 | 00000 |
Made-to-Order Washdown Pipe Markers
Specify the message you need to label a pipe (two lines maximum, up to 50 characters per line, including spaces). These fade-resistant pipe markers withstand detergents used in high-pressure cleaning. Wrap them around a pipe and seal in place with the adhesive strip.
ASME A13.1 requires that, for a given pipe OD, markers have a minimum character height, identify contents with a message, indicate flow direction with an arrow, and designate hazard classifications with a specific marker color. Choose the color that best identifies the hazardous properties of the contents according to the ASME designations.
For technical drawings and 3-D models, click on a part number.
| For Pipe OD | Character Ht. | Ht. | Wd. | Thick. | Flow-Direction Arrow | Material | Temp. Range, °F | Specifications Met | Each | |
Made to Order (English, English/Spanish, Spanish) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Blue with White Message | ||||||||||
| 5/8"-1" | 1/2" | 5" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 1 1/8"-2 1/2" | 3/4" | 9" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 2 1/2"-4 3/4" | 1 1/4" | 17" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 5"-7 7/8" | 1 1/4" | 26" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 8"-10" | 1 1/4" | 36" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 11"-12" | 1 1/4" | 43" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 13"-15" | 1 1/4" | 52" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 16"-18" | 1 1/4" | 62" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
Green with White Message | ||||||||||
| 5/8"-1" | 1/2" | 5" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 0000 |
| 1 1/8"-2 1/2" | 3/4" | 9" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 2 1/2"-4 3/4" | 1 1/4" | 17" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 5"-7 7/8" | 1 1/4" | 26" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 8"-10" | 1 1/4" | 36" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 11"-12" | 1 1/4" | 43" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 13"-15" | 1 1/4" | 52" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 16"-18" | 1 1/4" | 62" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
Orange with Black Message | ||||||||||
| 5/8"-1" | 1/2" | 5" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 0000 |
| 1 1/8"-2 1/2" | 3/4" | 9" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 2 1/2"-4 3/4" | 1 1/4" | 17" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 5"-7 7/8" | 1 1/4" | 26" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 8"-10" | 1 1/4" | 36" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 11"-12" | 1 1/4" | 43" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 13"-15" | 1 1/4" | 52" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 16"-18" | 1 1/4" | 62" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
Red with White Message | ||||||||||
| 5/8"-1" | 1/2" | 5" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 0000 |
| 1 1/8"-2 1/2" | 3/4" | 9" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 2 1/2"-4 3/4" | 1 1/4" | 17" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 5"-7 7/8" | 1 1/4" | 26" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 8"-10" | 1 1/4" | 36" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 11"-12" | 1 1/4" | 43" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 13"-15" | 1 1/4" | 52" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 16"-18" | 1 1/4" | 62" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
Yellow with Black Message | ||||||||||
| 5/8"-1" | 1/2" | 5" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 0000 |
| 1 1/8"-2 1/2" | 3/4" | 9" | 8" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 2 1/2"-4 3/4" | 1 1/4" | 17" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 5"-7 7/8" | 1 1/4" | 26" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 8"-10" | 1 1/4" | 36" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 11"-12" | 1 1/4" | 43" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 13"-15" | 1 1/4" | 52" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
| 16"-18" | 1 1/4" | 62" | 12" | 0.007" | Yes | Polyester Plastic | -40° to 250° | ASME A13.1 | 0000000 | 00000 |
Made-to-Order Reflective Pipe Markers
Specify the message you need to label the contents of a pipe in low-light conditions (two lines maximum, up to 50 characters per line, including spaces). Apply these markers directly onto clean, dry pipes.
ANSI/ASME 13.1 requires that, for a given pipe OD, markers have a minimum character height, identify contents with a message, indicate flow direction with an arrow, and designate hazard classifications with a specific marker color. In order to meet the standard, pair these markers with an adhesive-back arrow pipe marker and choose the color that best identifies the hazardous properties of the contents according to the ANSI/ASME designations.
For technical drawings and 3-D models, click on a part number.
| For Pipe OD | Character Ht. | Ht. | Wd. | Thick. | Flow-Direction Arrow | Material | Temp. Range, °F | Pkg. Qty. | Pkg. | |
Made to Order (English, English/Spanish, Spanish) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Blue with White Message | ||||||||||
| 3/4"-2 1/4" | 3/4" | 1" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 000000 |
| 2 1/2"-7 7/8" | 1 3/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
Green with White Message | ||||||||||
| 3/4"-2 1/4" | 3/4" | 1" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
| 2 1/2"-7 7/8" | 1 3/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
Orange with Black Message | ||||||||||
| 3/4"-2 1/4" | 3/4" | 1" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
| 2 1/2"-7 7/8" | 1 3/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
Red with White Message | ||||||||||
| 3/4"-2 1/4" | 3/4" | 1" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
| 2 1/2"-7 7/8" | 1 3/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
Yellow with Black Message | ||||||||||
| 3/4"-2 1/4" | 3/4" | 1" | 8" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
| 2 1/2"-7 7/8" | 1 3/4" | 2 1/4" | 13" | 0.003" | No | Vinyl Plastic | -40° to 170° | 10 | 0000000 | 00000 |
