    81 Products

    Fixture Tables for Welding

    Image of System. Front orientation. Fixture Tables. Fixture Tables for Welding.
    Use these tables as a foundation for welding setups. They have 5/8" unthreaded holes with 2" center-to-center spacing, so they’re compatible with clamps, stops, V-blocks, and other components. To protect tables and other components from heat and spatter, coat them in welding antispatter.
    Tables
    Image of Product. Front orientation. Fixture Tables. Fixture Tables for Welding, Tables, Slotted.

    Slotted

    Slotted—Slotted tables have reversible plates—when one side becomes worn or damaged, flip them over for a fresh work surface. Swap in a replacement plate when both sides wear down. They’re also precision ground. These tables have leveling feet, which you can adjust up or down to compensate for uneven floors. Slotted tables have space between each plate to give you more clamping options.
    Nitride-Coated Steel Plate—Both sides of these plates are surface ground for flatness and nitrided to resist rust, scratches, and weld spatter. They have long lifespans and require minimal maintenance.
    Fixture Tables
    Replacement
    Top Plates
    Overall
    Slots
    Plates
    Holes
    Lg.
    Wd.
    Ht.
    Load Cap.,
    lb.
    No.
    of
    Wd.
    Ctr.-to-Ctr.
    No.
    of
    Wd.
    Thk.
    No. per
    Plate
    Dia.
    Ctr.-to-Ctr.
    Flatness
    Tolerance
    Material
    Plate Material
    Features
    Each
    Each
    Slotted
    38"22"36"2,00022"8"36 1/4"5/8"575/8"2"0.01"/2 ft.Steel
    		Nitride-Coated SteelLeveling Feet1403N130000000001403N210000000
    46"38"36"5,00052"8"66 1/4"5/8"575/8"2"0.01"/2 ft.Steel
    		Nitride-Coated SteelLeveling Feet1403N12000000001403N21000000
    78"38"36"5,50092"8"106 1/4"5/8"575/8"2"0.01"/2 ft.Steel
    		Nitride-Coated SteelLeveling Feet1403N11000000001403N21000000

    Fixture Squares
    Image of Product. Style A. Front orientation. Fixture Squares. 2" Long, 2" Wide.
    Image of Product. Style B. Front orientation. Contains Annotated. Fixture Squares. 3 3/4" Long, 4" Wide.
    Image of Product. Style C. Front orientation. Contains Annotated. Fixture Squares. 4" Long, 4" Wide.

    Style A

    Style B

    Style C

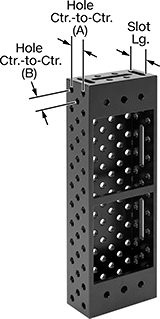

    Image of Product. Style D. Front orientation. Contains Annotated. Fixture Squares. 4" Long, 8" Wide.
    Image of Product. Style E. Front orientation. Contains Annotated. Fixture Squares. 6" Long, 2" Wide.
    Image of Product. Style F (Left Orientation). Front orientation. Contains Annotated. Fixture Squares. 8" Long, 2" Wide, Left-Hand-Side Orientation.

    Style D

    Style E

    Style F (Left

    Orientation)

    Image of Product. Style F (Right Orientation). Back orientation. Contains Annotated. Fixture Squares. 8" Long, 2" Wide, Right-Hand-Side Orientation.

    Style F (Right Orientation)

    Build fixtures on multiple sides of these squares—you can use them individually or stack them.
    Slots
    Holes
    Tolerance
    Style
    Lg.
    Wd.
    Ht.
    Orientation
    No.
    of
    Style
    Lg.
    Wd.
    No.
    of
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Wt.,
    lb.
    Squareness
    per 4"
    Parallel
    Material
    Each
    A2"2"10"—————205/8"1"—50.001"0.002"Nitride-Coated Steel1392N110000000
    B3 3/4"4"3 3/4"—4
    1    		Straight
    Curved    		2"
    2 13/16"    		5/8"
    5/8"    		65/8"2"—5Not RatedNot RatedIron1392N111000000
    C4"4"4"—2Straight2 3/16"5/8"215/8"2"1 7/16"80.001"0.002"Nitride-Coated Steel1392N12000000
    C4"4"8"—2Straight2"5/8"395/8"2"1 7/16"130.001"0.002"Nitride-Coated Steel1392N13000000
    C4"4"12"—2Straight2"5/8"575/8"2"1 7/16"180.001"0.002"Nitride-Coated Steel1392N14000000
    D4"8"24"—2
    4
    2    		Straight
    Straight
    Straight    		4"
    2"
    4"    		5/8"
    5/8"
    5/8"    		1575/8"2"2"53Not RatedNot RatedNitride-Coated Steel1392N11200000000
    D4"8"36"—2
    4
    2    		Straight
    Straight
    Straight    		4"
    2"
    4"    		5/8"
    5/8"
    5/8"    		2355/8"2"2"77Not RatedNot RatedNitride-Coated Steel1392N11300000000
    E6"2"12"—2Straight4"5/8"265/8"1"1"70.002"0.006"Iron1392N15000000
    F8"2"20"Left-Hand Side4
    2
    1    		Straight
    Curved
    Curved    		2"
    2 13/16"
    5 5/8"    		5/8"
    5/8"
    5/8"    		435/8"1"1"15Not RatedNot RatedIron1392N115000000
    F8"2"20"Right-Hand Side4
    2
    1    		Straight
    Curved
    Curved    		2"
    2 13/16"
    5 5/8"    		5/8"
    5/8"
    5/8"    		435/8"1"1"15Not RatedNot RatedIron1392N114000000
    V-Blocks
    Mount V-blocks to the table to hold round workpieces in place.
    Multiple Studs—V-blocks with multiple studs slot into at least two grid holes, which keeps them from shifting when you move workpieces in or out. They have two rows of mounting holes, so you can position them at a 45° or 90° angle on your grid.
    Pivoting—Pivoting V-blocks can hold both the outer and inner diameter of your workpiece. They can go from cradling the outside of a pipe at 60°, to lying completely flat, to gripping the inside of a pipe at a 60° angle.
    Head
    For Max. Workpiece
    Dia.
    Dia.
    Lg.
    Wd.
    Ht.
    Lg.
    Wd.
    Ht.
    V
    Angle
    V Dp.
    V Wd.
    Stud
    Dia.
    Material
    Machinable
    Includes
    Each
    Single Stud

    Image of Product. Fixed with Single Stud. Front orientation. Contains Annotated. V-Blocks. Single Stud, Fixed.

    Fixed with Single Stud

    Fixed
    2 1/2"1 5/8"——21/32"———120°13/32"1 7/16"5/8"Black-Oxide SteelNo—1403N67000000
    8"3 3/16"——1 13/32"———150°19/32"3 1/16"5/8"Black-Oxide SteelNo—1403N6800000

    Image of Product. Pivoting with Single Stud. Front orientation. Contains Annotated. V-Blocks. Single Stud, Pivoting.

    Pivoting with Single Stud

    Pivoting
    4"—2 1/8"2"1 1/8"———60°27/32"1"5/8"Zinc-Plated SteelNo—1365N2100000

    Pair
    Multiple Studs

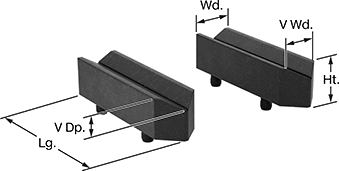

    Image of Product. Fixed with Multiple Studs. Front orientation. Contains Annotated. V-Blocks. Multiple Studs, Fixed.

    Fixed with Multiple Studs

    Fixed
    4"————8 1/4"2 1/4"2"120°1/2"1 11/16"5/8"Black-Oxide SteelNoFour Mounting Studs8907N111000000


    T-Slot Fixture Tables

    Image of ProductInUse. Front orientation. Contains Annotated. Fixture Tables. T-Slot Fixture Tables.
    Image of Product. Front orientation. Fixture Tables. T-Slot Fixture Tables, Tables, Style A.
    Image of Product. Front orientation. Fixture Tables. T-Slot Fixture Tables, Tables, Style B.

    Tables

    Style A

    Tables

    Style B

    Build custom workspaces with no drilling or tapping required. Slide in T-slot bolts or T-slot nuts with setup studs to mount work holders, light machinery, collaborative robots, and more. The T-shaped slots on these tables are spaced 50 mm apart. This is a common layout in modular workbenches used for prototyping, automation, and optical sensor setups. Adjust the leveling feet to compensate for uneven floors and create a stable base. Since tables are made of aluminum, they're nonmagnetic and won’t interfere with robotic sensors, control systems, or communication signals. They’re also lightweight and corrosion resistant for easy handling and frequent cleaning.
    Tables
    Image of Product. Front orientation. Fixture Tables. T-Slot Fixture Tables, Tables, Style A.
    Image of Product. Front orientation. Fixture Tables. T-Slot Fixture Tables, Tables, Style B.
    Image of Specification. Side1 orientation. ZoomedIn view. Contains Annotated, Border. Fixture Tables. T-Slot Fixture Tables, Tables.

    Style A

    Style B

    Style A—Store tools and accessories on the bottom shelf.
    Style B—The back panel adds a vertical fixturing surface for mounting components on another axis.
    Casters—Make tables mobile.
    Fixture Tables
    Casters
    Overall
    Shelves
    T-Slots
    Lg.,
    mm
    Wd.,
    mm
    Ht.,
    mm
    Wt. Cap.,
    lb.
    Movement
    No.
    of
    Clearance,
    mm
    No.
    of
    Wd.,
    mm
    Ctr.-to-Ctr.,
    mm
    Mounting
    Slot Ht., mm
    Back Panel
    Height, mm
    Plate Thk.,
    mm
    Parallel
    Tolerance
    Frame
    Material
    Plate
    Material
    Features
    Each
    Each
    Style A
    1,000500750495Fixed1452108507—12Not RatedAluminum
    		AluminumLeveling Feet7710N14000000000———0
    1,5007507501,045Fixed1452158507—12Not RatedAluminum
    		AluminumLeveling Feet7710N15000000002445T41000000
    1,5001,0007501,045Fixed1452208507—12Not RatedAluminum
    		AluminumLeveling Feet7710N16000000002445T4100000

    Style B
    1,0005001,300440———208507500120.3 mmAluminum
    		AluminumLeveling Feet7710N2400000000———0
    1,5007501,300880———208507500120.3 mmAluminum
    		AluminumLeveling Feet7710N25000000002445T4100000

    Accessories for Fixture Tables
    Robot Mounts
    Image of Product. Front orientation. Robot Mounts.
    Secure your robot arm to tables.
    Robot Mounting Location
    For Robot Arm Mfr.
    (Series/Model No.)
    Wd.,
    mm
    Lg.,
    mm
    Thk.,
    mm
    Static Load
    Cap.
    T-Slotted Fixture
    Table Mount Type
    Mount
    Type
    Mounting Hole Thread Size
    (No. of Holes)
    Mounting Fasteners
    Included
    Each
    Anodized Aluminum
    FANUC (CRX 5iA)22522522.5Not RatedT-Slot NutBolt OnM8 (4)No8191N120000000
    FANUC (CRX 10iA, 10iA/L, 20iA)22522522.5Not RatedT-Slot NutBolt OnM8 (4)No8191N13000000
    Universal (UR3, UR3e)18018022.5Not RatedT-Slot NutBolt OnM6 (4)No8191N21000000
    Universal (UR5, UR5e)22522522.5Not RatedT-Slot NutBolt OnM8 (4)No8191N22000000
    Universal (UR10, UR10e, UR16e)22522522.5Not RatedT-Slot NutBolt OnM8 (4)No8191N23000000

    Angle Plates
    Image of Product. Front orientation. Contains Annotated. Angle Plates.
    Mount workpieces in precisely located holes for repeatable setups. These plates ensure accurate right angles and hold workpieces and fixtures perpendicular to tables.
    Hole
    Slot
    Lg.,
    mm
    Wd.,
    mm
    Ht.,
    mm
    No.
    of
    Dia.,
    mm
    Dp.,
    mm
    No.
    of
    Wd.,
    mm
    Lg.,
    mm
    Wt.,
    lb.
    Material
    Each
    Standard Tolerance
    1502213001417847876Aluminum
    		5230A410000000
    22175446756.512———6Aluminum
    		5230A42000000
    2212214461897121278113Aluminum
    		5230A43000000


    Industrial Robot Pedestals

    Image of ProductInUse. Back orientation. Robot Pedestals. Industrial Robot Pedestals.
    Lift your industrial robot so it can reach raised surfaces. These pedestals are often used when a robot needs to transfer heavy parts on or off an assembly line. Made of steel, they’re built to last. They’re also machinable and weldable, so you can modify them to suit the task at hand. Use the mounting holes in the bottom plate to bolt them to your floor or another flat surface. If your surface is uneven, install fasteners or leveling mounts (both not included) in the threaded holes and adjust their depth until the pedestal is level.
    For safe operation, ensure that the maximum speed or potential forces of your robot arm and application are within safe limits for the base’s footprint, center of gravity, and any additional anchoring systems.
    Pedestals
    Image of Product. Back orientation. Robot Pedestals. Industrial Robot Pedestals, Pedestals.
    Image of Product. Top orientation. Robot Pedestal Adapter Kits. Industrial Robot Pedestals.

    T-Slotted

    Framing

    Adapters

    T-Slotted Framing Adapters—Add these mounts to pedestals to attach T-slotted framing components to them. They’re often used to connect teach pendants or build cable management systems. Line these mounts up with the holes in the side of the pedestal, then secure them with the included fasteners.
    Robot Pedestals
    T-Slotted
    Framing Adapters
    Robot
    Mounting Location
    Floor
    Mounting Location
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static Load
    Cap., lb.
    Vert. Force
    Cap., N
    Horizontal Force
    Capacity, N
    Material
    Mount. Fasteners
    Included
    Mount. Hole Dia.
    (No. of Holes)
    Plate
    Lg.
    Plate
    Wd.
    Each
    Each
    For FANUC (LR Mate 200iD/4S)
    24"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N160000000006333N33000000
    30"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N19000000006333N3300000
    36"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N22000000006333N3300000
    42"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N25000000006333N3300000
    48"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N28000000006333N3300000

    For FANUC (LR Mate 200iD/7L)
    24"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N17000000006333N3300000
    30"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N2000000006333N3300000
    36"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N23000000006333N3300000
    42"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N26000000006333N3300000
    48"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N29000000006333N3300000

    Blank Pedestals
    Image of Product. Back orientation. Robot Pedestals. Industrial Robot Pedestals, Blank Pedestals.
    Image of Product. Top orientation. Robot Pedestal Adapter Kits. Industrial Robot Pedestals.

    T-Slotted

    Framing

    Adapters

    These pedestals don’t have mounting holes on top, so you can drill your own for a custom mounting pattern.
    T-Slotted Framing Adapters—Add these mounts to pedestals to attach T-slotted framing components to them. They’re often used to connect teach pendants or build cable management systems. Line these mounts up with the holes in the side of the pedestal, then secure them with the included fasteners.
    Robot Pedestals
    T-Slotted
    Framing Adapters
    Robot
    Mounting Location
    Floor
    Mounting Location
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static Load
    Cap., lb.
    Vert. Force
    Cap., N
    Horizontal Force
    Capacity, N
    Material
    Mount. Fasteners
    Included
    Mount. Hole Dia.
    (No. of Holes)
    Plate
    Lg.
    Plate
    Wd.
    Each
    Each
    24"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N1500000006333N33000000
    30"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N180000006333N3300000
    36"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N210000006333N3300000
    42"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N24000000006333N3300000
    48"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N27000000006333N3300000


    Robot Machine-Tending Stations

    Image of System. Accessories Not Included. Front orientation. Contains Annotated. Robot Workstations. Robot Machine-Tending Stations.

    Accessories Not Included

    Image of Product. Side1 orientation. Contains Annotated. Robot Machine-Tending Stations.
    Hold workpieces at the ideal height and angle for efficient robot pickup. These stations are often used next to robots that load CNC machines, 3D printers, and other production equipment.
    Each station includes a platform, fixture plate, and pedestal. You’ll need to add pegs (sold separately) to create a custom layout that holds parts on the plate. There are also plenty of ways to expand and upgrade these stations. For example, add multiple plates, so you’re ready to go for different jobs. We’ve also stocked dollies, catch pans, and storage racks.
    These stations come with mounting holes on the pedestal's bottom plate to bolt them to your floor. If your floor is uneven, the bottom plate also has threaded holes, so you can level the station with fasteners or leveling mounts (both not included). The platform comes with locating pins and hairpin clips to align and secure the fixture plate.
    Robot Workstations
    Replacement
    Hairpin Clips
    Overall
    Plate
    Floor Mounting Location
    Mounting
    Location
    Ht.
    Wd.
    Lg.
    Lg.
    Wd.
    Thk.
    No. of
    Peg Holes
    Platform
    Material
    Pedestal Material
    Mounting Fasteners
    Included
    Mounting Hole Dia.
    (No. of Holes)
    Mounting
    Plate Lg.
    Mounting
    Plate Wd.
    Each
    Pkg.
    Qty.
    Pkg.
    Floor29 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N1100000000010098395A227000000
    Floor35 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N120000000010098395A22700000
    Floor41 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N130000000010098395A22700000
    Floor47 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N140000000010098395A22700000
    Floor53 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N150000000010098395A22700000
    Floor59 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N160000000010098395A22700000
    Floor65 1/8"21 1/4"22"27 3/4"20 3/4"0.135"384Stainless Steel
    		Gray Powder-Coated SteelNo9/16" (4)11 7/8"11 7/8"7016N170000000010098395A22700000
    Accessories for Robot Workstations
    Fixture Plates
    Image of Product. Front orientation. Part Presentation Plates. Robot Machine-Tending Stations.
    Keep workpieces in position so your robot arm can grab them. You can arrange pegs (sold separately) to hold a variety of differently shaped workpieces. Made of stainless steel, these plates stand up to corrosion, and handle cutouts make them easy to pick up.
    For heavy workpieces, use the included rest pads between the plate and platform to keep the plate from bowing. Each pad needs a peg to hold it in place.
    Overall
    Hole
    Lg.
    Wd.
    Thk.
    Dia.
    Ctr.-to-Ctr.
    No. of
    Holes
    No. of
    Columns
    No. of
    Rows
    Material
    Each
    27 3/4"20 3/4"0.135"9/32"1"3841624Stainless Steel
    		9230N150000000
    Pegs
    Image of Product. Front orientation. Pegs for Part Presentation Plates. Robot Machine-Tending Stations.
    Create custom layouts on fixture plates to hold your workpieces. To keep the pegs secure on the plate, they come with a screw. Push the screw through the backside of the fixture plate hole, then thread the peg on from the front of the plate. Stack these pegs to support taller parts. You’ll need a screw long enough to secure all the pegs in the stack.
    Overall
    Each
    Lg.
    Wd.
    Material
    Stackable
    1-24
    25-Up
    1 1/8"3/8"Aluminum
    		Yes9230N16000000000000

    Collaborative Robot Pedestals

    Image of ProductInUse. Front orientation. Contains Annotated. Robot Pedestals. Collaborative Robot Pedestals.
    Image of ProductInUse. Front orientation. Contains MultipleImages. Robot Pedestals. Collaborative Robot Pedestals.
    Lift your collaborative robot so it can reach raised surfaces. These pedestals are often used to support robots next to conveyor belts, so they can grab boxes to arrange on pallets.
    Add accessories—such as dollies and controller mounts (both sold separately)—to help you move these pedestals or attach components to them.
    Pedestals
    Image of Product. Pedestal. Front orientation. Robot Pedestals. Collaborative Robot Pedestals, Pedestals.
    Image of ProductInUse. Dolly Shown with Dolly Anchors (Sold Separately). Front orientation. Contains Inset. Robot Workstations. Collaborative Robot Pedestals.

    Pedestal

    Dolly Shown with Dolly Anchors (Sold

    Separately)

    Image of Product. Dolly Anchor. Bottom orientation. Robot Workstations. Collaborative Robot Pedestals.

    Dolly Anchor

    Made of steel, these pedestals are built to last. They’re also machinable and weldable, so you can modify them to suit the task at hand. A cable routing hole lets you feed cable, wire, and tubing through the center column to keep your setup neat.
    Mount your robot to the top of these pedestals with bolts (not included). They have standard mounting patterns, so they work with FANUC CRX, Universal Robots (UR), and other common robot arms. Use the mounting holes in the bottom plate to bolt them to your floor or another flat surface. If your surface is uneven, install fasteners or leveling mounts (both not included) in the threaded holes and adjust their depth until the pedestal is level.
    These pedestals are designed for robots moving at collaborative speeds—do not use them when your robot is moving at high speeds.
    Dollies—Attach to pedestals to roll your robot where you need it. The bottom of the pedestal has mounting holes that line up with those on the dolly. Attach them together with the included fasteners. To lock the casters, step on the pedal. Adjust the leveling feet to compensate for uneven floors.
    Dolly Anchors—Secure dollies to the floor for extra stability. You can also use these anchors to mark your robot’s working position—just align the dolly with the anchors. Bolt the anchors to the floor with fasteners (not included), then slide the leveling feet into the notch on each anchor. Tighten the wing nut for more holding power. You’ll need three anchors—one for each leveling foot.
    Robot Pedestals
    Dollies
    Dolly Anchors
    Floor
    Mounting Location
    Overall
    Ht.
    Robot Mount.
    Plate Dia.
    Static Load
    Cap., lb.
    Material
    Mount. Fasteners
    Included
    Plate
    Lg.
    Plate
    Wd.
    Mount. Hole Dia.
    (No. of Holes)
    Each
    Each
    Each
    For FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14)
    12"8"165Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N11100000006333N410000000006333N42000000
    18"8"165Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N1120000006333N41000000006333N4200000
    24"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N340000006333N41000000006333N4200000

    For FANUC (CRX 5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14)
    30"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N350000006333N41000000006333N4200000
    36"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N360000006333N41000000006333N4200000
    42"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N370000006333N41000000006333N4200000
    48"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N380000006333N41000000006333N4200000

    For FANUC (CRX 25iA, 30iA) and Universal Robots (UR20, UR30)
    18"12"400Gray Powder-Coated SteelNo16"16"5/8" (4)6333N11300000000———0———0
    24"12"400Gray Powder-Coated SteelNo16"16"5/8" (4)6333N11400000000———0———0
    30"12"400Gray Powder-Coated SteelNo16"16"5/8" (4)6333N11500000000———0———0

    Accessories for Robot Pedestals
    Controller Mounts
    Image of ProductInUse. Controller Mount Shown with Controller (Not Included). Front orientation. Contains MultipleImages. Robot Controller Mounts. Collaborative Robot Pedestals, FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L, 30iA), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR15, UR16e, UR20, UR30), and Omron (TM 5, TM 12, TM 14).
    Image of Product. Controller Mount. Front orientation. Contains Annotated. Robot Controller Mounts. Collaborative Robot Pedestals, FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L, 30iA), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR15, UR16e, UR20, UR30), and Omron (TM 5, TM 12, TM 14).

    Controller Mount Shown with Controller

    (Not Included)

    Controller Mount

    Controller Mounts—Place your robot controller on these mounts to keep it off the floor and near your robot for neat cord routing. Secure them to your pedestal, then attach your controller to the mount with the included fasteners.
    Overall
    Ht.
    Lg.
    Wd.
    Material
    Each
    FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L, 30iA), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR15, UR16e, UR20, UR30), and Omron (TM 5, TM 12, TM 14)
    4 1/4"16 3/4"11"Gray Powder-Coated Steel6333N450000000

    Angle Mounting Adapters
    Image of ProductInUse. 45° Adapter Shown with Pedestal and Robot Arm (Not Included). Front orientation. Robot Controller Mounts. Collaborative Robot Pedestals, For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14).

    45° Adapter Shown with

    Pedestal and Robot Arm (Not

    Included)

    Image of Product. 15° Adapter. Front orientation. Robot Controller Mounts. Collaborative Robot Pedestals, For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14), 15° Angle.

    15° Adapter

    Image of Product. 45° Adapter. Front orientation. Robot Controller Mounts. Collaborative Robot Pedestals, For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14), 45° Angle.

    45° Adapter

    Angle Mounting Adapters—Adjust the angle of your robot to change where it can reach. For example, use one of these adapters to tilt your robot forward so it can reach items close to the base of its pedestal. Mount them to the top of your pedestal using the included fasteners. You can use these adapters on pedestals up to 24" high.
    Overall
    Angle
    For Max.
    Pedestal Ht.
    Ht.
    Dia.
    Material
    Max. Load
    Cap., lb.
    Pedestal Mounting Location
    Fasteners Included
    Robot Mounting
    Location Plate Dia.
    Each
    For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14)
    15°24"6 3/8"8"Gray Powder-Coated Steel165Yes8"6333N1170000000
    45°24"8 1/16"8"Gray Powder-Coated Steel165Yes8"6333N118000000

    Clamp-On Teach Pendant Holders
    Image of ProductInUse. Pedestal Shown with Teach Pendant Holder (Sold Separately). Front orientation. Teach Pendant Holders. Collaborative Robot Pedestals.
    Image of Product. Front orientation. Teach Pendant Holders. Collaborative Robot Pedestals.

    Pedestal Shown

    with Teach

    Pendant Holder

    (Sold

    Separately)

    Store your teach pendant right next to your robot for easy access. Simply clamp the mount onto your pedestal.
    For Controller
    Mfr. Model No.
    Material
    Lg.
    Wd.
    Ht.
    Mounting Fasteners
    Included
    Each
    For FANUC CRX (5iA, 10iA, 10iA/L, 20iA/L)
    R30iB Mini PlusGray Powder-Coated Steel7 1/2"4 1/2"11 3/4"Yes6333N1210000000

    For Universal Robots UR3e, UR5e, UR7e, UR10e, UR12e, UR15, UR16e
    —Gray Powder-Coated Steel8 1/2"3 1/8"12 1/8"Yes6333N119000000


    T-Slotted Collaborative Robot Pedestals

    Image of ProductInUse. Shown with Robot Arm (Not Included). Front orientation. Robot Pedestals. T-Slotted Collaborative Robot Pedestals.

    Shown with Robot Arm (Not

    Included)

    Made entirely of T-slotted rails, these pedestals give you the most flexibility for mounting accessories. Create a custom solution tailored to your application—mount a tray for staging parts, add a bin for rejected parts, and keep your controller easily accessible, to name just a few options. These pedestals lift robots high enough to reach into machines or onto surfaces such as conveyor belts. Attach your robot to the top with the included mount and your own bolts. The hole patterns work with FANUC CRX, Universal Robots (UR), and other common robot arms.
    These pedestals are designed for robots moving at collaborative speeds—do not use them when your robot is moving at high speeds.
    Stationary Pedestals
    Image of Product. Front orientation. Robot Pedestals. T-Slotted Collaborative Robot Pedestals, Stationary Pedestals.
    Permanently install these pedestals by bolting them to the floor.
    Robot
    Mounting Location
    Floor Mounting Location
    T-Slot
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static Load
    Cap., lb.
    Material
    Plate
    Lg.
    Plate
    Wd.
    Mount. Hole Dia.
    (No. of Holes)
    Mount. Fasteners
    Included
    Wd.
    Dp.
    Each
    For FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), Dobot (CR3S, CR5S, CR7, CR10S, CR12, CR16, NOVA 2, NOVA 5), Omron (TM 5-700, 5-900), Igus (Rebel), Doosan (A0509, A0912, M0609, M0617, M1013, E0509), and KUKA (KR 4 R600)
    23 1/2"8"8"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N339000000000
    35 1/2"8"8"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34100000000
    47 1/4"8"8"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34200000000

    For FANUC (CRX 25iA, 30iA), Universal Robots (UR20, UR30), ABB (IRB1300), AUBO (i20), Doosan (H Series), and Omron (TM 12, 14, 16, 20)
    23 1/2"12"12"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34300000000
    35 1/2"12"12"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34400000000
    47 1/4"12"12"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34500000000

    back to top
