    68 Products

    Podiums

    Image of Product. With Telescoping Stand. Front orientation. Podiums. Oak.
    Image of Product. With Telescoping Stand and Casters. Front orientation. Podiums. Gray.
    Image of Product. With Microphone, Speakers, and Amplifier. Front orientation. Podiums. Ribbonwood.
    Image of Product. With Interior Shelf. Front orientation. Podiums. Mahogany.

    With Telescoping

    Stand

    With Telescoping Stand

    and Casters

    With Microphone,

    Speakers, and

    Amplifier

    With Interior Shelf

    Shipped unassembled.
    Top
    Surface
    Features
    Ht.
    Wd.
    Dp.
    Material
    Electrical
    Connection Type
    Cord Lg.,
    ft.
    Each
    Telescoping Steel Stand30" to 44"20"16"Oak Laminate——52215T360000000
    Telescoping Steel Stand, Casters, Laptop Shelf39" to 45"24"18"Gray Laminate——52215T24000000
    Clip-On Microphone, Handheld Microphone, Four Built-In Speakers, Amplifier, Tone Control, Volume Control46"22"17"Ribbonwood LaminatePlug In652215T23000000
    Interior Shelf46"23"16"Mahogany Laminate——52215T11000000

    Collaborative Robot Pedestals

    Image of ProductInUse. Front orientation. Contains Annotated. Robot Pedestals. Collaborative Robot Pedestals.
    Image of ProductInUse. Front orientation. Contains MultipleImages. Robot Pedestals. Collaborative Robot Pedestals.
    Lift your collaborative robot so it can reach raised surfaces. These pedestals are often used to support robots next to conveyor belts, so they can grab boxes to arrange on pallets.
    Add accessories—such as dollies and controller mounts (both sold separately)—to help you move these pedestals or attach components to them.
    Pedestals
    Image of Product. Pedestal. Front orientation. Robot Pedestals. Collaborative Robot Pedestals, Pedestals.
    Image of ProductInUse. Dolly Shown with Dolly Anchors (Sold Separately). Front orientation. Contains Inset. Robot Workstations. Collaborative Robot Pedestals.

    Pedestal

    Dolly Shown with Dolly Anchors (Sold

    Separately)

    Image of Product. Dolly Anchor. Bottom orientation. Robot Workstations. Collaborative Robot Pedestals.

    Dolly Anchor

    Made of steel, these pedestals are built to last. They’re also machinable and weldable, so you can modify them to suit the task at hand. A cable routing hole lets you feed cable, wire, and tubing through the center column to keep your setup neat.
    Mount your robot to the top of these pedestals with bolts (not included). They have standard mounting patterns, so they work with FANUC CRX, Universal Robots (UR), and other common robot arms. Use the mounting holes in the bottom plate to bolt them to your floor or another flat surface. If your surface is uneven, install fasteners or leveling mounts (both not included) in the threaded holes and adjust their depth until the pedestal is level.
    These pedestals are designed for robots moving at collaborative speeds—do not use them when your robot is moving at high speeds.
    Dollies—Attach to pedestals to roll your robot where you need it. The bottom of the pedestal has mounting holes that line up with those on the dolly. Attach them together with the included fasteners. To lock the casters, step on the pedal. Adjust the leveling feet to compensate for uneven floors.
    Dolly Anchors—Secure dollies to the floor for extra stability. You can also use these anchors to mark your robot’s working position—just align the dolly with the anchors. Bolt the anchors to the floor with fasteners (not included), then slide the leveling feet into the notch on each anchor. Tighten the wing nut for more holding power. You’ll need three anchors—one for each leveling foot.
    Robot Pedestals
    Dollies
    Dolly Anchors
    Floor
    Mounting Location
    Overall
    Ht.
    Robot Mount.
    Plate Dia.
    Static Load
    Cap., lb.
    Material
    Mount. Fasteners
    Included
    Plate
    Lg.
    Plate
    Wd.
    Mount. Hole Dia.
    (No. of Holes)
    Each
    Each
    Each
    For FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14)
    12"8"165Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N11100000006333N410000000006333N42000000
    18"8"165Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N1120000006333N41000000006333N4200000
    24"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N340000006333N41000000006333N4200000

    For FANUC (CRX 5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14)
    30"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N350000006333N41000000006333N4200000
    36"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N360000006333N41000000006333N4200000
    42"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N370000006333N41000000006333N4200000
    48"8"200Gray Powder-Coated SteelNo11 7/8"11 7/8"9/16" (4)6333N380000006333N41000000006333N4200000

    For FANUC (CRX 25iA, 30iA) and Universal Robots (UR20, UR30)
    18"12"400Gray Powder-Coated SteelNo16"16"5/8" (4)6333N11300000000———0———0
    24"12"400Gray Powder-Coated SteelNo16"16"5/8" (4)6333N11400000000———0———0
    30"12"400Gray Powder-Coated SteelNo16"16"5/8" (4)6333N11500000000———0———0

    Accessories for Robot Pedestals
    Controller Mounts
    Image of ProductInUse. Controller Mount Shown with Controller (Not Included). Front orientation. Contains MultipleImages. Robot Controller Mounts. Collaborative Robot Pedestals, FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L, 30iA), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR15, UR16e, UR20, UR30), and Omron (TM 5, TM 12, TM 14).
    Image of Product. Controller Mount. Front orientation. Contains Annotated. Robot Controller Mounts. Collaborative Robot Pedestals, FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L, 30iA), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR15, UR16e, UR20, UR30), and Omron (TM 5, TM 12, TM 14).

    Controller Mount Shown with Controller

    (Not Included)

    Controller Mount

    Controller Mounts—Place your robot controller on these mounts to keep it off the floor and near your robot for neat cord routing. Secure them to your pedestal, then attach your controller to the mount with the included fasteners.
    Overall
    Ht.
    Lg.
    Wd.
    Material
    Each
    FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L, 30iA), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR15, UR16e, UR20, UR30), and Omron (TM 5, TM 12, TM 14)
    4 1/4"16 3/4"11"Gray Powder-Coated Steel6333N450000000

    Angle Mounting Adapters
    Image of ProductInUse. 45° Adapter Shown with Pedestal and Robot Arm (Not Included). Front orientation. Robot Controller Mounts. Collaborative Robot Pedestals, For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14).

    45° Adapter Shown with

    Pedestal and Robot Arm (Not

    Included)

    Image of Product. 15° Adapter. Front orientation. Robot Controller Mounts. Collaborative Robot Pedestals, For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14), 15° Angle.

    15° Adapter

    Image of Product. 45° Adapter. Front orientation. Robot Controller Mounts. Collaborative Robot Pedestals, For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14), 45° Angle.

    45° Adapter

    Angle Mounting Adapters—Adjust the angle of your robot to change where it can reach. For example, use one of these adapters to tilt your robot forward so it can reach items close to the base of its pedestal. Mount them to the top of your pedestal using the included fasteners. You can use these adapters on pedestals up to 24" high.
    Overall
    Angle
    For Max.
    Pedestal Ht.
    Ht.
    Dia.
    Material
    Max. Load
    Cap., lb.
    Pedestal Mounting Location
    Fasteners Included
    Robot Mounting
    Location Plate Dia.
    Each
    For FANUC CRX (5iA, 10iA, 10iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), and Omron (TM 5, TM 12, TM 14)
    15°24"6 3/8"8"Gray Powder-Coated Steel165Yes8"6333N1170000000
    45°24"8 1/16"8"Gray Powder-Coated Steel165Yes8"6333N118000000

    Clamp-On Teach Pendant Holders
    Image of ProductInUse. Pedestal Shown with Teach Pendant Holder (Sold Separately). Front orientation. Teach Pendant Holders. Collaborative Robot Pedestals.
    Image of Product. Front orientation. Teach Pendant Holders. Collaborative Robot Pedestals.

    Pedestal Shown

    with Teach

    Pendant Holder

    (Sold

    Separately)

    Store your teach pendant right next to your robot for easy access. Simply clamp the mount onto your pedestal.
    For Controller
    Mfr. Model No.
    Material
    Lg.
    Wd.
    Ht.
    Mounting Fasteners
    Included
    Each
    For FANUC CRX (5iA, 10iA, 10iA/L, 20iA/L)
    R30iB Mini PlusGray Powder-Coated Steel7 1/2"4 1/2"11 3/4"Yes6333N1210000000

    For Universal Robots UR3e, UR5e, UR7e, UR10e, UR12e, UR15, UR16e
    —Gray Powder-Coated Steel8 1/2"3 1/8"12 1/8"Yes6333N119000000


    Industrial Robot Pedestals

    Image of ProductInUse. Back orientation. Robot Pedestals. Industrial Robot Pedestals.
    Lift your industrial robot so it can reach raised surfaces. These pedestals are often used when a robot needs to transfer heavy parts on or off an assembly line. Made of steel, they’re built to last. They’re also machinable and weldable, so you can modify them to suit the task at hand. Use the mounting holes in the bottom plate to bolt them to your floor or another flat surface. If your surface is uneven, install fasteners or leveling mounts (both not included) in the threaded holes and adjust their depth until the pedestal is level.
    For safe operation, ensure that the maximum speed or potential forces of your robot arm and application are within safe limits for the base’s footprint, center of gravity, and any additional anchoring systems.
    Pedestals
    Image of Product. Back orientation. Robot Pedestals. Industrial Robot Pedestals, Pedestals.
    Image of Product. Top orientation. Robot Pedestal Adapter Kits. Industrial Robot Pedestals.

    T-Slotted

    Framing

    Adapters

    T-Slotted Framing Adapters—Add these mounts to pedestals to attach T-slotted framing components to them. They’re often used to connect teach pendants or build cable management systems. Line these mounts up with the holes in the side of the pedestal, then secure them with the included fasteners.
    Robot Pedestals
    T-Slotted
    Framing Adapters
    Robot
    Mounting Location
    Floor
    Mounting Location
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static Load
    Cap., lb.
    Vert. Force
    Cap., N
    Horizontal Force
    Capacity, N
    Material
    Mount. Fasteners
    Included
    Mount. Hole Dia.
    (No. of Holes)
    Plate
    Lg.
    Plate
    Wd.
    Each
    Each
    For FANUC (LR Mate 200iD/4S)
    24"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N160000000006333N33000000
    30"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N19000000006333N3300000
    36"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N22000000006333N3300000
    42"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N25000000006333N3300000
    48"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N28000000006333N3300000

    For FANUC (LR Mate 200iD/7L)
    24"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N17000000006333N3300000
    30"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N2000000006333N3300000
    36"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N23000000006333N3300000
    42"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N26000000006333N3300000
    48"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N29000000006333N3300000

    Blank Pedestals
    Image of Product. Back orientation. Robot Pedestals. Industrial Robot Pedestals, Blank Pedestals.
    Image of Product. Top orientation. Robot Pedestal Adapter Kits. Industrial Robot Pedestals.

    T-Slotted

    Framing

    Adapters

    These pedestals don’t have mounting holes on top, so you can drill your own for a custom mounting pattern.
    T-Slotted Framing Adapters—Add these mounts to pedestals to attach T-slotted framing components to them. They’re often used to connect teach pendants or build cable management systems. Line these mounts up with the holes in the side of the pedestal, then secure them with the included fasteners.
    Robot Pedestals
    T-Slotted
    Framing Adapters
    Robot
    Mounting Location
    Floor
    Mounting Location
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static Load
    Cap., lb.
    Vert. Force
    Cap., N
    Horizontal Force
    Capacity, N
    Material
    Mount. Fasteners
    Included
    Mount. Hole Dia.
    (No. of Holes)
    Plate
    Lg.
    Plate
    Wd.
    Each
    Each
    24"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N1500000006333N33000000
    30"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N180000006333N3300000
    36"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)14"14"6333N210000006333N3300000
    42"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N24000000006333N3300000
    48"11"11"2001,200900Gray Powder-Coated SteelNo3/4" (8)20"20"6333N27000000006333N3300000


    Robot Machine-Tending Stations

    Image of System. Accessories Not Included. Front orientation. Contains Annotated. Robot Workstations. Robot Machine-Tending Stations.

    Accessories Not Included

    Hold workpieces at the ideal height and angle for efficient robot pickup. These stations are often used next to robots that load CNC machines, 3D printers, and other production equipment.
    Each station includes a platform, fixture plate, and pedestal. You’ll need to add pegs (sold separately) to create a custom layout that holds parts on the plate. There are also plenty of ways to expand and upgrade these stations. For example, add multiple plates, so you’re ready to go for different jobs. We’ve also stocked dollies, catch pans, and storage racks.
    Catch Pans
    Image of Product. Front orientation. Robot Workstations. Robot Machine-Tending Stations, Catch Pans.
    Collect coolant, shavings, and other runoff from your machined parts. These pans slide in and out of a mounting bracket for easy cleaning.
    Overall
    Ht.
    Wd.
    Lg.
    Mounting Fasteners
    Included
    Pan Material
    Each
    5 11/16"21"10"YesWhite Polypropylene/PTFE9240N130000000
    Plate Storage Racks
    Image of Product. Front orientation. Robot Workstations. Robot Machine-Tending Stations, Plate Storage Racks.
    Hang extra fixture plates on the station so they’re handy when you need them. These storage racks mount to your pedestal.
    Overall
    Ht.
    Wd.
    Lg.
    Mounting Fasteners
    Included
    Material
    Each
    1 9/16"8 1/2"11"NoStainless Steel9240N11000000
    Fixture Plates
    Image of Product. Front orientation. Part Presentation Plates. Robot Machine-Tending Stations.
    Keep workpieces in position so your robot arm can grab them. You can arrange pegs (sold separately) to hold a variety of differently shaped workpieces. Made of stainless steel, these plates stand up to corrosion, and handle cutouts make them easy to pick up.
    For heavy workpieces, use the included rest pads between the plate and platform to keep the plate from bowing. Each pad needs a peg to hold it in place.
    Overall
    Hole
    Lg.
    Wd.
    Thk.
    Dia.
    Ctr.-to-Ctr.
    No. of
    Holes
    No. of
    Columns
    No. of
    Rows
    Material
    Each
    27 3/4"20 3/4"0.135"9/32"1"3841624Stainless Steel
    		9230N150000000
    Pegs
    Image of Product. Front orientation. Pegs for Part Presentation Plates. Robot Machine-Tending Stations.
    Create custom layouts on fixture plates to hold your workpieces. To keep the pegs secure on the plate, they come with a screw. Push the screw through the backside of the fixture plate hole, then thread the peg on from the front of the plate. Stack these pegs to support taller parts. You’ll need a screw long enough to secure all the pegs in the stack.
    Overall
    Each
    Lg.
    Wd.
    Material
    Stackable
    1-24
    25-Up
    1 1/8"3/8"Aluminum
    		Yes9230N16000000000000

    Robot Workstations

    Image of System. All Components Sold Separately. Front orientation. Contains Annotated. Robot Workstations. Robot Workstations.

    All Components Sold Separately

    Create a portable home base for your robot, controller, and workpieces. These workstations keep your setup organized with your robot mounted on top and your controller tucked away on the shelf below. They’re often used next to CNC machines, so your robot can load and unload parts. Expand your work surface, add storage, and customize these workstations with add-ons that keep you ready for whatever is next.
    These workstations have swivel casters with brakes, so you can roll them between jobs across your facility and lock them in place. Leveling feet keep these workstations flat even when the floor isn’t.
    The top of these workstations has mounting holes that work with common robot arms—attach your arm with fasteners (not included). They also come with a mount for your controller. To neatly route cords from controller to arm, there’s a cutout on the top.
    Workstations
    Image of Product. Front orientation. Robot Workstations. Robot Workstations, Workstations.
    You won’t waste time putting them together—they come fully assembled.
    Wt.
    Cap., lb.
    Overall
    For Robot Arm Mfr. (Series/Model No.)
    Top
    Overall
    Ht.
    Wd.
    Dp.
    Top Material
    Frame Material
    Wheel
    Configuration
    Foot Type
    Each
    FANUC (CRX 5iA, CRX 10iA, 10iA/L, 20iA/L)
    Universal Robots (UR3e, UR5e, UR7e, UR10e, UR12e, UR16e)
    Omron (TM 5, 12, 14)    		25040037 1/4"47 1/4"27 1/2"Powder-Coated SteelPowder-Coated SteelFour Swivel CastersCaster, Leveling5204N11000000000
    Top Extensions
    Image of Product. Top Extension Shown Extended. Front orientation. Contains Annotated. Robot Workstations. Robot Workstations, Top Extensions.

    Top Extension Shown Extended

    Expand your robot arm’s work surface. Simply mount these extensions to either side of the workstation with the included fasteners. They fold down to save space when not in use.
    Overall
    Top
    Thk.
    Top Wt.
    Cap., lb.
    Mounting
    Location
    Ht.
    Wd.
    Dp.
    Mounting Fasteners
    Included
    Material
    Each
    1/4"100Left Side8 3/16"47 1/4"14 11/16"YesPowder-Coated Steel5204N120000000
    1/4"100Right Side8 3/16"47 1/4"14 11/16"YesPowder-Coated Steel5204N13000000
    Platforms
    Image of System. Platform Shown with Fixture Plate, Pegs, and Workpieces (Sold Separately). Front orientation. Robot Workstations. Robot Workstations, Platforms.

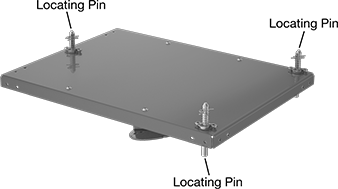

    Image of Product. Front orientation. Contains Annotated. Robot Workstations. Robot Workstations, Platforms.

    Platform Shown with Fixture Plate,

    Pegs, and Workpieces (Sold Separately)

    Hold workpieces at the best angle for pickup by your robot. Mount them anywhere on the workstation top—just drill holes and secure them with the included fasteners. For a complete assembly, you’ll need fixture plates and pegs (both sold separately). These platforms come with locating pins to ensure repeatability when swapping fixture plates and hairpin clips to hold them securely.
    Robot Workstations
    Replacement
    Hairpin Clips
    Overall
    Angle
    Mounting
    Location
    Ht.
    Wd.
    Lg.
    Mounting Fasteners
    Included
    Material
    Base Material
    Each
    Pkg.
    Qty.
    Pkg.
    15°Workstation12 1/4"21 1/4"28 1/4"YesStainless SteelPowder-Coated Steel5204N1400000000010098395A227000000
    Workbench Cabinets
    Image of Product. Front orientation. Workbench Cabinets. Robot Workstations, 2 Drawers.
    Image of Product. Front orientation. Workbench Cabinets. Robot Workstations, 4 Drawers.

    2 Drawers

    4 Drawers

    Store tools and more. You won’t waste time putting them together—they come fully assembled.
    2 Drawers—2-drawer cabinets mount to the underside of the workstation top.
    4 Drawers—4-drawer cabinets mount to the bottom shelf of the workstation. They have a keyed lock to keep your items secure.
    Drawers
    Overall
    Total No.
    of Drawers
    No.
    of
    Ht.
    Wd.
    Dp.
    Wt.
    Cap.
    Ht.
    Wd.
    Dp.
    Wt. Cap.,
    lb.
    Material
    Lock
    Type
    Each
    222 7/8"16 3/8"15 3/16"75 lb.9"20 1/4"17 3/4"150Powder-Coated Steel—5204N150000000
    42
    1
    1    		2 7/8"
    6 3/8"
    8"    		16 3/8"
    16 3/8"
    16 3/8"    		15 3/16"
    15 3/16"
    15 3/16"    		75 lb.
    75 lb.
    75 lb.    		26 1/2"20 1/2"18"300Powder-Coated SteelKeyed5204N1600000000
    Fixture Plates
    Image of Product. Front orientation. Part Presentation Plates. Robot Workstations.
    Keep workpieces in position so your robot arm can grab them. You can arrange pegs (sold separately) to hold a variety of differently shaped workpieces. Made of stainless steel, these plates stand up to corrosion, and handle cutouts make them easy to pick up.
    For heavy workpieces, use the included rest pads between the plate and platform to keep the plate from bowing. Each pad needs a peg to hold it in place.
    Overall
    Hole
    Lg.
    Wd.
    Thk.
    Dia.
    Ctr.-to-Ctr.
    No. of
    Holes
    No. of
    Columns
    No. of
    Rows
    Material
    Each
    27 3/4"20 3/4"0.135"9/32"1"3841624Stainless Steel
    		9230N150000000
    Pegs
    Image of Product. Front orientation. Pegs for Part Presentation Plates. Robot Workstations.
    Create custom layouts on fixture plates to hold your workpieces. To keep the pegs secure on the plate, they come with a screw. Push the screw through the backside of the fixture plate hole, then thread the peg on from the front of the plate. Stack these pegs to support taller parts. You’ll need a screw long enough to secure all the pegs in the stack.
    Overall
    Each
    Lg.
    Wd.
    Material
    Stackable
    1-24
    25-Up
    1 1/8"3/8"Aluminum
    		Yes9230N16000000000000

    T-Slotted Collaborative Robot Pedestals

    Image of ProductInUse. Shown with Robot Arm (Not Included). Front orientation. Robot Pedestals. T-Slotted Collaborative Robot Pedestals.

    Shown with Robot Arm (Not

    Included)

    Made entirely of T-slotted rails, these pedestals give you the most flexibility for mounting accessories. Create a custom solution tailored to your application—mount a tray for staging parts, add a bin for rejected parts, and keep your controller easily accessible, to name just a few options. These pedestals lift robots high enough to reach into machines or onto surfaces such as conveyor belts. Attach your robot to the top with the included mount and your own bolts. The hole patterns work with FANUC CRX, Universal Robots (UR), and other common robot arms.
    These pedestals are designed for robots moving at collaborative speeds—do not use them when your robot is moving at high speeds.
    Stationary Pedestals
    Image of Product. Front orientation. Robot Pedestals. T-Slotted Collaborative Robot Pedestals, Stationary Pedestals.
    Permanently install these pedestals by bolting them to the floor.
    Robot
    Mounting Location
    Floor Mounting Location
    T-Slot
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static Load
    Cap., lb.
    Material
    Plate
    Lg.
    Plate
    Wd.
    Mount. Hole Dia.
    (No. of Holes)
    Mount. Fasteners
    Included
    Wd.
    Dp.
    Each
    For FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), Dobot (CR3S, CR5S, CR7, CR10S, CR12, CR16, NOVA 2, NOVA 5), Omron (TM 5-700, 5-900), Igus (Rebel), Doosan (A0509, A0912, M0609, M0617, M1013, E0509), and KUKA (KR 4 R600)
    23 1/2"8"8"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N339000000000
    35 1/2"8"8"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34100000000
    47 1/4"8"8"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34200000000

    For FANUC (CRX 25iA, 30iA), Universal Robots (UR20, UR30), ABB (IRB1300), AUBO (i20), Doosan (H Series), and Omron (TM 12, 14, 16, 20)
    23 1/2"12"12"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34300000000
    35 1/2"12"12"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34400000000
    47 1/4"12"12"720Silver Anodized Aluminum12"12"17/32" (4)Yes5/16"1/2"9480N34500000000

    Rolling Pedestals
    Image of Product. Front orientation. Robot Pedestals. T-Slotted Collaborative Robot Pedestals, Rolling Pedestals.
    Roll these pedestals where you need them. Once they’re in position, extend the leveling pads to keep them in place and compensate for uneven floors.
    Robot
    Mounting Location
    Load
    Cap.
    Base
    T-Slot
    Overall
    Ht.
    Plate
    Lg.
    Plate
    Wd.
    Static
    Dynamic
    Foot
    Type
    Lg.
    Wd.
    Material
    Wd.
    Dp.
    Each
    For FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L), Universal Robots (UR3, UR3e, UR5, UR5e, UR7e, UR10, UR10e, UR12e, UR16e), Dobot (CR3S, CR5S, CR7, CR10S, CR12, CR16, NOVA 2, NOVA 5), Omron (TM 5-700, 5-900), Igus (Rebel), Doosan (A0509, A0912, M0609, M0617, M1013, E0509), and KUKA (KR 4 R600)
    23 1/2"8"8"Not RatedNot RatedCaster31 3/4"37 3/4"Silver Anodized Aluminum5/16"1/2"9480N333000000000
    35 1/2"8"8"Not RatedNot RatedCaster31 3/4"37 3/4"Silver Anodized Aluminum5/16"1/2"9480N33400000000
    47 1/4"8"8"Not RatedNot RatedCaster31 3/4"37 3/4"Silver Anodized Aluminum5/16"1/2"9480N33500000000

    For FANUC (CRX 25iA, 30iA), Universal Robots (UR20, UR30), ABB (IRB1300), AUBO (i20), Doosan (H Series), and Omron (TM 12, 14, 16, 20)
    23 1/2"12"12"Not RatedNot RatedCaster31 3/4"37 3/4"Silver Anodized Aluminum5/16"1/2"9480N33600000000
    35 1/2"12"12"Not RatedNot RatedCaster31 3/4"37 3/4"Silver Anodized Aluminum5/16"1/2"9480N33700000000
    47 1/4"12"12"Not RatedNot RatedCaster31 3/4"37 3/4"Silver Anodized Aluminum5/16"1/2"9480N33800000000


    Tabletop Easels

    Image of ProductInUse. Front orientation. Easels. Tabletop Easels.
    Display small boards, messages, and meeting notices where they’re easy to spot.
    Adjustable-Height Support Brackets— Raise and lower only the support bracket instead of each leg.
    Material
    Color
    Ht.
    Wd.
    Wt. Cap.,
    lb.
    Mounting
    Location
    Features
    Wt.,
    lb.
    Each
    Easels
    Plastic-Coated SteelBlack14 1/4"11"5TabletopAdjustable-Height Support Brackets29540N11000000


    T-Slotted Robot Workstations

    Image of ProductInUse. Robot Arm and Attached Tools Not Included. Front orientation. Robot Workstations. T-Slotted Robot Workstations.

    Robot Arm and Attached Tools Not

    Included

    With a top that’s T-slotted from edge to edge, these workstations let you endlessly adjust your robot and fixtures as you iterate setups. Optimize them to hold workpieces, trays, sensors, and more for a variety of robot tasks, from machine tending to dispensing glue. Use the included mount to secure FANUC CRX, Universal Robots (UR), or other common robot arms anywhere on the workstation top. These workstations come fully assembled with hardware to attach the mount to the workstation. However, you’ll need fasteners to attach your robot to the mount.
    These workstations have swivel casters with brakes, so you can roll them between jobs and lock them in place. Store your teach pendant, robot controller, and other accessories behind the cabinet doors below—or remove the doors for easy access.
    Wt.
    Cap., lb.
    Overall
    T-Slot
    For Robot Arm Mfr. (Series/Model No.)
    Top
    Thk.
    Top
    Overall
    Ht.
    Wd.
    Dp.
    No.
    of
    Wd.
    Dp.
    Ctr.-to-Ctr.
    Top Material
    Frame Material
    Wheel
    Configuration
    Foot
    Type
    Each
    FANUC (CRX 5iA, 10iA, 10iA/L, 20iA/L)
    Universal Robots (UR3, UR3e, UR5, UR5e,
    UR7e, UR10, UR10e, UR12e, UR16e)
    Dobot (CR 3S, 5S, 7, 10S, 12, 16; NOVA 2, 5)
    Omron (TM 5-700, 5-900)
    Igus (Rebel)
    Doosan (A0509, A0912, E0509, M0609,
    M0617, M1013)
    KUKA (KR 4 R600)     		3"93093037 1/2"63"31 1/2"210.32"0.484"1 1/2", 40 mmAnodized AluminumAnodized AluminumFour Swivel CastersCaster9351N11000000000
    FANUC (CRX 25iA, 30iA)
    Universal Robots (UR20, UR30)
    ABB (IRB 1300)
    AUBO (i/20)
    Omron (TM 12, 14, 16, 20)
    Doosan (H)     		3"93093037 1/2"63"31 1/2"210.32"0.484"1 1/2", 40 mmAnodized AluminumAnodized AluminumFour Swivel CastersCaster9351N1200000000

    Telescoping Pedestals for Universal Robots

    Image of ProductInUse. Shown with Robot Arm (Not Included). Front orientation. Robot Pedestals. Telescoping Pedestals for Universal Robots.
    Image of Product. Fully Extended. Back orientation. Contains Annotated. Robot Pedestals. Telescoping Pedestals for Universal Robots.
    Image of Product. Retracted. Back orientation. Contains Annotated. Robot Pedestals. Telescoping Pedestals for Universal Robots.

    Shown with

    Robot

    Arm (Not

    Included)

    Fully Extended

    Retracted

    Take your robot arm to new heights—these pedestals move up and down to extend your robot’s vertical reach for high and low stacking jobs. Often used to palletize boxes as they come off a conveyor, they start at ground level and extend as the stack gets higher. They’re UR+ certified, so they’ve been tested to work seamlessly with your robot. Download the free URCap plug-in, then use your teach pendant to sync their speed and movement with your robot’s work cycle. You can program these pedestals to move a set distance from their current position or height from the floor.
    These pedestals have holes on the top to mount your robot and holes on the base to bolt it to the floor. Connect them to a 24V DC power supply with the included 16 ft. cord. You’ll also need an Ethernet cord to connect them to your robot controller. A cable management system ensures your cables won’t tangle as these pedestals move.
    When these pedestals are used with the UR20 and UR30, run your robot at collaborative speed, not high speed.
    Overall
    Ht., mm
    Robot Mounting
    Location, mm
    Load
    Cap., lb.
    Floor Mounting Location
    Travel
    Ht., mm
    When
    Retracted
    When
    Extended
    Plate
    Lg.
    Plate
    Wd.
    Position
    Accuracy
    Max. Travel
    Speed, mm/s
    Dynamic
    Static
    Voltage,
    V DC
    Current,
    amp
    Plate Lg.,
    mm
    Plate Wd.,
    mm
    Mount. Hole Dia.
    (No. of Holes)
    Mount. Fasteners
    Included
    Each
    For Universal Robots (UR3, UR5, UR10, UR16, UR20, UR30)
    9007301,630264264±1.5 mm1001,0002,20024212002006.3 mm (8)Yes3814N21000000000
    1,1008301,930264264±1.5 mm1001,0002,20024212002006.3 mm (8)Yes3814N2200000000


    Easels

    Image of Product. Front orientation. Easels. Easels, Plastic-Coated Steel.
    Image of Product. Front orientation. Easels. Easels, Powder-Coated Aluminum.
    Image of Product. Front orientation. Easels. Easels, Oak.

    Plastic-Coated

    Steel

    Powder-Coated

    Aluminum

    Oak

    Prop up boards and paper pads for display or note taking. All easels collapse for storage and transport.
    Easels with Flip Chart Bar—Hang pads from the top of these easels to use them as flip charts. The bar is attached with a clip, so you can snap it on or off of the easel.
    Adjustable-Height Support Brackets— Raise and lower only the support bracket instead of each leg.
    Telescoping Legs—From floor to tabletop use, adjust the legs to always keep your display at eye level.
    Material
    Color
    Ht.
    Wd.
    Collapsed
    Ht.
    Wt. Cap.,
    lb.
    Mounting
    Location
    Features
    Wt.,
    lb.
    Each
    Easels
    Plastic-Coated SteelBlack63"36"23 1/2"15FloorAdjustable-Height Support Brackets213535T16000000
    Oak—63"22"35"15Floor—413535T1700000

    Easels with Flip Chart Bar
    Powder-Coated AluminumBlack37" to 70"22" to 38"38 1/2"45FloorAdjustable-Height Support Brackets, Telescoping Legs55930T2100000

    back to top
