Double-Slotted Standards and Shelf Brackets
 |
Standard and Shelf Bracket |
These standards and shelf brackets are more stable and hold heavier loads than single-slotted standards and brackets.
Warning: Capacity may be reduced due to wall material and fastener choice.
Standards
Overall | Slot | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ht. | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Mounting Fasteners Included | Screw Size | Mounting Hole Ctr.-to-Ctr. | Choose a Finish | Each | |||
Steel | |||||||||||||
| 24" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A41 | 00000 | ||
| 36" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A42 | 0000 | ||
| 48" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A43 | 00000 | ||
| 60" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A44 | 00000 | ||
| 72" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A45 | 00000 | ||
| 84" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A46 | 00000 | ||
| 96" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | White Painted, Zinc Plated | 1751A47 | 00000 | ||
Single-Slotted Standards and Shelf Brackets
 |
Standard and Shelf Bracket |
Warning: Capacity may be reduced due to wall material and fastener choice.
Standards
Overall | Slot | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ht. | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Mounting Fasteners Included | Screw Size | Mounting Hole Ctr.-to-Ctr. | Choose a Finish | Each | |||
Steel | |||||||||||||
| 24" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | White Painted, Zinc Plated | 1736A7 | 00000 | ||
| 36" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | White Painted, Zinc Plated | 1736A1 | 0000 | ||
| 48" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | White Painted, Zinc Plated | 1736A2 | 0000 | ||
| 60" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | White Painted, Zinc Plated | 1736A3 | 00000 | ||
| 72" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | White Painted, Zinc Plated | 1736A4 | 00000 | ||
| 84" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | Zinc Plated | 1736A42 | 00000 | ||
| 96" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | White Painted, Zinc Plated | 1736A6 | 00000 | ||

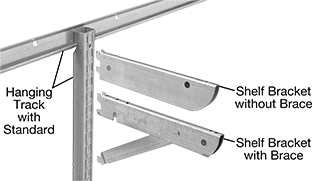

Quick-Mount Standards and Shelf Brackets
Standards and Shelf Supports for Cabinets and Bookcases
 |
Steel and Aluminum |
These standards can be surface mounted or flush mounted inside a routed groove. Four shelf supports per shelf and four standards are required (sold separately).
Standards
 |  |
Single Slotted Stainless Steel | Double Slotted Stainless Steel |
Double Slotted—Double-slotted standards are more stable than single-slotted.
Overall | Slot | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Material | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Color | Mounting Fasteners Included | Screw Size | Mounting Hole Ctr.-to-Ctr. | 18" High | 24" High | 36" High | 48" High | 60" High | 72" High | 84" High | |||
Single Slotted | |||||||||||||||||||
| Aluminum | 5/8" | 1/4" | 1/4" | 1/8" | 1/2" | — | No | No. 3 | 6" | 1748A98 | 00000 | 00000 | 00000 | 00000 | 00000 | 00000 | 00000 | ||
| Stainless Steel | 5/8" | 1/4" | 1/8" | 1/8" | 5/8" | — | No | No. 5 | 7 3/4" | 11865A11 | — | — | — | — | — | 00000 | — | ||
| Zinc-Plated Steel | 5/8" | 1/4" | 1/4" | 1/8" | 1/2" | — | No | No. 3 | 6" | 1748A96 | 0000 | 0000 | 0000 | 0000 | 0000 | 0000 | 0000 | ||
| Painted Steel | 5/8" | 1/4" | 1/4" | 1/8" | 1/2" | White | No | No. 3 | 6" | 1748A97 | 0000 | 0000 | 0000 | 0000 | 0000 | 0000 | 00000 | ||
Double Slotted | |||||||||||||||||||
| Stainless Steel | 5/8" | 1/4" | 1/16" | 3/8" | 7/8" | — | No | No. 5 | 7" | 11865A12 | — | — | — | — | — | 00000 | — | ||
Standards, Shelf Brackets, and Shelves
 |
Design a complete shelving unit with these standards, shelf brackets, and metal shelves (sold separately). All components are corrosion resistant and are often used for quality control, laboratory, and food service applications.
Shelves attach to brackets with included mounting screws for a sturdy connection. If using other shelves, use shelf supports (sold separately) to clip shelves to the top of the bracket.
Warning: Capacity may be reduced due to wall material and fastener choice.
Single-Slotted Standards
Overall | Slot | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Material | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Mounting Hole Ctr.-to-Ctr. | Mounting Fasteners Included | Screw Size | Choose a Finish | 24" High | 36" High | 48" High | 60" High | 72" High | 84" High | 96" High | ||
| Steel | 7/8" | 3/4" | 0.188" | 1" | 2" | 12" | No | No. 10 | White Painted, Zinc Plated | 1752A93 | 000000 | 000000 | 000000 | 000000 | 000000 | 000000 | 000000 | |
| Stainless Steel | 7/8" | 3/4" | 0.188" | 1" | 2" | 12" | No | No. 10 | — | 1713A77 | 00000 | 00000 | 000000 | 000000 | 000000 | — | — | |
