103 Products

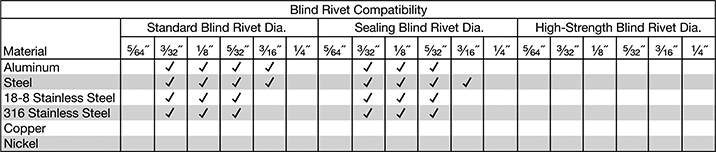

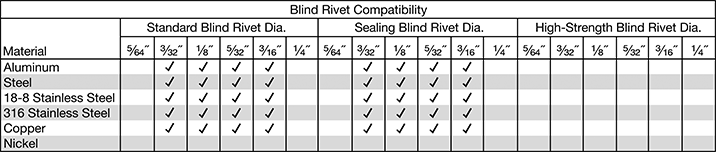

Manual Tools for Blind Rivets


Style A	Style B	Style C

Style D	Style D with Plastic Case and Rivets

Style A

Style B

Style C

Style D

These tools have changeable nosepieces—use the nosepiece that matches your rivet's diameter. To install a rivet, insert the mandrel into the nosepiece of the tool. Place the rivet in the material and squeeze the handles. The tool pulls the mandrel through the rivet's body, creating a secure hold on both sides of the material, and breaks off the excess mandrel.

Style A

Nose
Dia.	Lg.	Lg.	Includes		Each
11/16"	1 1/2"	10"	15 aluminum with steel mandrel domed rivets for 0.039"-0.118” thickness (5/32" dia.) 15 aluminum with steel mandrel domed rivets for 0.059"-0.098” thickness (3/16" dia.) 15 aluminum with steel mandrel domed rivets for 0.059"-0.138” thickness (1/8" dia.) 15 aluminum with steel mandrel domed rivets for 0.079"-0.157" thickness (3/32" dia.) Four nosepieces (3/32", 1/8", 5/32", and 3/16")	6659A31	000000

Style B

Style B tools are sized for two-handed use, which gives you the force needed to install large rivets and reduces hand fatigue while installing small ones. A mandrel collector catches spent mandrels, keeping them off the floor.

Nose
Dia.	Lg.	Lg.	Includes		Each
1 1/16"	1 1/8"	13"	Five nosepieces (1/8", 5/32", 3/16", and two pieces of 1/4") Mandrel Collector	6659A32	000000

Style C

Style C tools have a cushioned grip that keeps your hands comfortable during extended use.

Nose
Dia.	Lg.	Lg.	Features	Includes		Each
13/16"	1 1/4"	10"	Cushioned Grip	Three nosepieces (1/8", 5/32", and 3/16")	6862A21	0000000

Rivet Tool Accessories and Replacement Parts

		Each
Opening Spring	6862A23	00000
Jaw Pusher	6862A24	00000
⅛" Nosepiece	6862A661	00000
³⁄₁₆" Nosepiece	6862A663	00000
Jaw (Two Jaw Parts)	6862A22	00000
Jaw Pusher Spring	6862A25	0000
⁵⁄₃₂" Nosepiece	6862A662	00000
³⁄₃₂" Nosepiece	6862A659	00000

Style D


	Style D with Plastic Case and Rivets

Nose
Dia.	Lg.	Lg.	Includes		Each
3/4"	1"	9 1/2"	25 aluminum with steel mandrel domed rivets for 0.020”-0.125” thickness (3/16” dia.) 25 steel flush-mount rivets for 0.188”-0.250” thickness (1/8” dia.) 50 aluminum domed rivets for 0.063”-0.125” thickness (1/8” dia.) 50 steel domed rivets for 0.063”-0.125” thickness (1/8” dia.) 50 steel domed rivets for 0.188”-0.250” thickness (1/8” dia.) Four nosepieces (3/32", 1/8", 5/32", and 3/16") Plastic case	6659A23	000000
3/4"	1"	9 1/2"	Four nosepieces (3/32", 1/8", 5/32", and 3/16")	6659A21	00000

Rivet Tool Accessories and Replacement Parts

		Each
Opening Spring	6659A233	00000
Jaw Pusher	6659A234	0000
⅛" Nosepiece	6659A243	0000
³⁄₁₆" Nosepiece	6659A245	0000
Retaining Screw for Jaw Pusher Spring	6659A237	0000
Jaw (Two Jaw Parts)	6659A232	0000
⁵⁄₃₂" Nosepiece	6659A244	0000
³⁄₃₂" Nosepiece	6659A242	0000
Jaw Pusher Spring	6659A235	0000

Nosepieces, Jaws, and Replacement Parts for Blind Rivet Tools

Replace individual parts in a variety of blind rivet tools.

Nosepieces

	For Rivet Dia.		Each
For Marson



	Big Daddy, Big Daddy II	1/8"	90239A630	00000


	Big Daddy, Big Daddy II	5/32"	90239A650	0000
	Big Daddy, Big Daddy II	3/16"	90239A670	0000
	Big Daddy, Big Daddy II	1/4"	90239A690	0000
	Klik-Fast HP-2	3/32"	6659A242	0000
	Klik-Fast HP-2	1/8"	6659A243	0000
	Klik-Fast HP-2	5/32"	6659A244	0000
	Klik-Fast HP-2	3/16"	6659A245	0000


	For Gesipa



			Flipper, NTX-F	3/32"	6862A659	00000


			Flipper, NTX-F	1/8"	6862A661	00000
			Flipper, NTX-F	5/32"	6862A662	00000
			Flipper, NTX-F	3/16"	6862A663	00000

Nose Extensions

	Lg.		Each
For Marson



	Big Daddy, Big Daddy II	4 13/16"	90239A550	000000

Heads

	Lg.		Each
For Marson



	Big Daddy, Big Daddy II	2 5/16"	90239A770	000000

Jaws

	For Rivet Dia.	No. of Pieces		Each
For Marson



	Big Daddy, Big Daddy II	1/8", 3/16", 1/4"	2	90239A570	00000


	Klik-Fast HP-2	3/32", 1/8", 5/32", 3/16"	2	6659A232	0000


	For Gesipa



			Flipper	3/32", 1/8", 5/32", 3/16"	2	97543A133	00000


			NTX-F	1/8", 5/32", 3/16"	2	6862A22	00000

Jaw Pushers

	For Rivet Dia.		Each
For Marson



	Big Daddy, Big Daddy II	1/8", 5/32", 3/16", 1/4"	90239A590	00000


	Klik-Fast HP-2	3/32", 1/8", 5/32", 3/16"	6659A234	0000


	For Gesipa



			Flipper	3/32", 1/8", 5/32", 3/16"	97543A137	00000


			NTX-F	1/8", 5/32", 3/16"	6862A24	00000

Jaw Pusher Springs

	For Rivet Dia.		Each
For Marson



	Big Daddy, Big Daddy II	3/32", 1/8", 5/32", 3/16"	90239A610	00000


	Klik-Fast HP-2	3/32", 1/8", 5/32", 3/16"	6659A235	0000


	For Gesipa



			Flipper	3/32", 1/8", 5/32", 3/16"	97543A142	0000


			NTX-F	1/8", 5/32", 3/16"	6862A25	0000

Retaining Screws for Jaw Pusher Springs

	For Rivet Dia.		Each
For Marson



	Klik-Fast HP-2	3/32", 1/8", 5/32", 3/16"	6659A237	00000

Opening Springs

	For Rivet Dia.		Each
For Marson



	Klik-Fast HP-2	3/32", 1/8", 5/32", 3/16"	6659A233	00000


	For Gesipa



			NTX-F	1/8", 5/32", 3/16"	6862A23	0000

Tools for Hollow Rivets

One of these tools and a hammer are all you need to expand the base of hollow (tubular) and hollow-end (semi-tubular) rivets. Place the tool over the hollow end of the rivet, then strike with a hammer. The rivet’s end will flare out to fasten your material.

For Rivet Dia.	For Rivet Material	Dia.	Lg.	Material		Each
1/16"	Aluminum, Brass, Copper, Steel	5/16"	3 1/2"	Steel	6667A001	000000
0.087"	Aluminum, Brass, Copper, Steel	3/8"	4 1/4"	Steel	6667A002	00000
1/8"	Aluminum, Brass, Copper, Steel	3/8"	4 1/4"	Steel	6667A4	00000
9/64"	Aluminum, Brass, Copper, Steel	1/2"	5"	Steel	6667A1	00000
5/32"	Aluminum, Brass, Copper, Steel	1/2"	5"	Steel	6667A5	00000
3/16"	Aluminum, Brass, Copper, Steel	1/2"	5"	Steel	6667A2	00000
7/32"	Aluminum, Brass, Copper, Steel	1/2"	5"	Steel	6667A6	00000
1/4"	Aluminum, Brass, Copper, Steel	1/2"	5"	Steel	6667A3	00000
5/16"	Aluminum, Brass, Copper, Steel	5/8"	5"	Steel	6667A7	00000

360° Swivel-Head Manual Tools for Blind Rivets

Swivel the head to install blind rivets at any angle. This tool has changeable nosepieces—use the nosepiece that matches your rivet's diameter. To install a rivet, insert the mandrel into the nosepiece of the tool. Place the rivet in the material and squeeze the handles. The tool pulls the mandrel through the rivet's body, creating a secure hold on both sides of the material, and breaks off the excess mandrel.

Nose
Dia.	Lg.	Lg.	Includes		Each
7/8"	1"	11"	Four nosepieces (3/32", 1/8", 5/32", and 3/16")	98300A160	000000

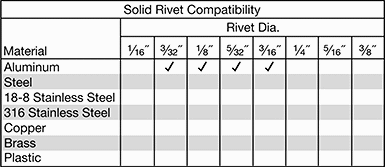

Manual Squeeze Tools for Solid Rivets

Squeeze the handles on these tools to set solid aluminum rivets along an edge. Do not use them with steel or stainless steel rivets.

2" Throat Depth

For Max. Rivet Lg.
Domed	Flat	Flush Mount	Max. Jaw Opening	Lg.	Handle Lg.	Wt., lb.	Material	Includes		Each
1.65"	1.713"	1.713"	2"	15 1/2"	9 1/2"	2.8	Stainless Steel	1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets) 11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16",	6616A23	0000000

Die Sets


7 Pieces	11 Pieces

No. of Pieces	Includes	Material		Each
7	7 Piece Die Set (For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN442 Style Head Rivets)	Steel	6616A38	000000
11	11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)	Steel	6616A37	00000

2 1/4" Throat Depth

For Max. Rivet Lg.
Domed	Flat	Flush Mount	Max. Jaw Opening	Lg.	Handle Lg.	Wt., lb.	Material		Each
1.65"	1.713"	1.713"	1 1/4"	14 3/4"	9 1/2"	2.6	Stainless Steel	6616A35	0000000

Die Sets


7 Pieces	11 Pieces

No. of Pieces	Includes	Material		Each
7	7 Piece Die Set (For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN442 Style Head Rivets)	Steel	6616A38	000000
11	11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)	Steel	6616A37	00000

6" Throat Depth

For Max. Rivet Lg.
Domed	Flat	Flush Mount	Max. Jaw Opening	Lg.	Handle Lg.	Wt., lb.	Material	Includes		Each
1.65"	1.713"	1.713"	1 1/4"	15 1/4"	9 1/2"	6	Stainless Steel	1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets) 11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16",	6616A3	0000000

Die Sets


7 Pieces	11 Pieces

No. of Pieces	Includes	Material		Each
7	7 Piece Die Set (For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN442 Style Head Rivets)	Steel	6616A38	000000
11	11 Piece Die Set (For 3/32", 1/8", 5/32", 3/16" Dia. Domed AN470 Style Head Rivets; For 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" Dia. Flat and Flush AN441 and AN442 Style Head Rivets)	Steel	6616A37	00000

Manual Tools for High-Strength Blind Rivets


	With Mandrel Collector

At least 8" longer than standard manual tools for blind rivets, these tools give you the leverage needed to install structural high-strength rivets. They can also be used to install standard rivets with minimal effort. This tool has changeable nosepieces—use the nosepiece that matches your rivet's diameter. To install a rivet, insert the mandrel into the nosepiece of the tool. Place the rivet in the material and squeeze the handles. The tool pulls the mandrel through the rivet's body, creating a secure hold on both sides of the material, and breaks off the excess mandrel.

Mandrel Collector—Tools with a mandrel collector catch spent mandrels, keeping them off the floor.

Nose
Dia.	Lg.	Lg.	Includes		Each
1"	2 1/2"	21"	Mandrel Collector Three nosepieces (5/32", 3/16", and 1/4")	90239A520	0000000
1"	2 1/2"	21"	Three nosepieces (5/32", 3/16", and 1/4")	90239A510	000000

Rivet Tool Accessories and Replacement Parts

Nose Extension—Nose extensions add 2 ½" of reach.

⅛" Nosepiece—A ⅛" nosepiece is required to install ⅛" dia. blind rivets.

		Each
Nose Extension	90239A550	000000
¼" Nosepiece	90239A690	0000
³⁄₁₆" Nosepiece	90239A670	0000
⅛" Nosepiece	90239A630	0000
Jaw (Two Jaw Parts)	90239A570	0000
⁵⁄₃₂" Nosepiece	90239A650	0000
Jaw Pusher Spring	90239A610	0000
Head	90239A770	00000
Jaw Pusher	90239A590	0000

Easy-Squeeze Manual Tools for Blind Rivets

Install rivets with up to 40% less force than other manual tools. This tool has changeable nosepieces—use the nosepiece that matches your rivet's diameter. To install a rivet, insert the mandrel into the nosepiece of the tool. Place the rivet in the material and squeeze the handles. The tool pulls the mandrel through the rivet's body, creating a secure hold on both sides of the material, and breaks off the excess mandrel.

Nose
Dia.	Lg.	Lg.	Ht.	Features	Includes		Each
1"	1 1/2"	8 1/4"	8 1/2"	Mandrel Collector	Three nosepieces (1/8", 5/32", and 3/16")	97543A120	0000000

Rivet Tool Accessories and Replacement Parts

³/₃₂" Nosepiece—³⁄₃₂" nosepiece is required to install ³⁄₃₂" dia. blind rivets.

		Each
⅛" Nosepiece	6862A661	000000
³⁄₁₆" Nosepiece	6862A663	00000
Jaw (Two Jaw Parts)	97543A133	00000
Jaw Pusher	97543A137	00000
⁵⁄₃₂" Nosepiece	6862A662	00000
³⁄₃₂" Nosepiece	6862A659	00000
Jaw Pusher Spring	97543A142	0000

Tools for Plastic Blind Rivets

Perfectly set all sizes of plastic rivets in a single stroke without removing the nosepiece.

			Nose
For Blind Rivet Type	For Rivet Dia.	For Rivet Material	Dia.	Lg.	Lg.		Each
Standard	0.157", 0.195", 0.197", 0.236", 0.246"	Plastic	7/8"	2 1/2"	6 1/2"	97540A210	000000

Tools for Solid Rivets with Washer

Set solid copper rivets with washer—also known as belt rivets—using one of these tools and a hammer. The tool clinches the rivet tight against the washer in a single strike, creating a secure, permanent fastening for leather belts, straps, and canvas without the bulk of mechanical fasteners.

For Belt Rivet Size	For Rivet Dia.	For Rivet Material	Setter Hole Dia.	Lg.	Material		Each
No. 3	0.28" to 0.307"	Copper	0.312"	4 1/2"	Steel	6663A11	000000
No. 4, No. 5	0.233" to 0.275"	Copper	0.281"	4 1/2"	Steel	6663A12	00000
No. 6	0.212" to 0.229"	Copper	0.234"	4 1/2"	Steel	6663A13	00000
No. 7	0.19" to 0.209"	Copper	0.213"	4 1/2"	Steel	6663A14	00000
No. 8	0.165" to 0.187"	Copper	0.191"	4 1/2"	Steel	6663A15	00000
No. 9, No. 10	0.148" to 0.163"	Copper	0.166"	4 1/2"	Steel	6663A16	00000
No. 11	0.14" to 0.146"	Copper	0.149"	4 1/2"	Steel	6663A17	00000
No. 12	0.124" to 0.138"	Copper	0.14"	4 1/2"	Steel	6663A18	00000
No. 13	0.108" to 0.123"	Copper	0.125"	4 1/2"	Steel	6663A19	00000
No. 14	0.098" to 0.107"	Copper	0.109"	4 1/2"	Steel	6663A21	00000

Tools for Blind Rivets and Rivet Nuts


Style A	Style B

Image of Specification. Front orientation. Contains Border. Rivet Tools. Tools for Blind Rivets and Rivet Nuts, Style B.

Install blind rivets and rivet nuts with the same tool. These sets come with the nosepieces and mandrels needed to install the most common sizes of blind rivets and rivet nuts. Additional mandrels and nosepieces are sold separately. Choose the attachment that matches your rivet diameter or nut thread size.

To install a rivet, insert the mandrel into the nosepiece of the tool. Place the rivet in the material and squeeze the handles. The tool pulls the mandrel through the rivet body to tighten it on both sides of the material, then breaks off the excess mandrel. To install a rivet nut, thread the rivet nut onto the mandrel, insert the nut into a drilled hole, and squeeze the handles to secure the nut.

Style A

Nose
Dia.	Lg.	Lg.	Ht.	For Rivet Nut Thread Size	For Rivet Nut Body Shape	For Rivet Nut Material	Includes		Each
3/4"	1 1/4"	10 1/2"	3 1/4"	6-32 8-32 10-32 1/4"-20 M3 × 0.5 mm M4 × 0.7 mm M5 × 0.8 mm M6 × 1 mm	Bulb, Hex, Ribbed, Sleeve, Smooth	Aluminum, Brass, Stainless Steel, Steel, Titanium	Four mandrel and nosepiece sets (6-32, 8-32, 10-32, and 1/4"-20) Four nosepieces (3/32", 1/8", 5/32", and 3/16")	6879A31	000000

Accessories for Rivet Tools

		Each
³⁄₃₂", ⅛", ⁵⁄₃₂", ³⁄₁₆" Jaw (Two Jaw Parts)	6879A32	000000
³⁄₃₂" Nosepiece	6879A33	00000
⅛" Nosepiece	6879A34	00000
⁵⁄₃₂" Nosepiece	6879A35	00000
³⁄₁₆" Nosepiece	6879A36	00000
6-32 Mandrel and Nosepiece Set	6879A37	00000
8-32 Mandrel and Nosepiece Set	6879A38	00000
10-32 Mandrel and Nosepiece Set	6879A39	00000
¼"-20 Mandrel and Nosepiece Set	6879A41	00000
M3 × 0.6 mm Mandrel and Nosepiece Set	6879A42	00000
M4 × 0.7 mm Mandrel and Nosepiece Set	6879A43	00000
M5 × 0.8 mm Mandrel and Nosepiece Set	6879A44	00000
M6 × 1 mm Mandrel and Nosepiece Set	6879A45	00000

Style B

Nose
Dia.	Lg.	Lg.	Ht.	For Rivet Nut Thread Size	For Rivet Nut Body Shape	For Rivet Nut Material	Includes		Each
1 1/8"	1 3/4"	20"	6"	6-32 8-32 10-24 10-32 1/4"-20 1/4"-28 5/16"-18 5/16"-24 3/8"-16 3/8"-24 M4 × 0.7 mm M5 × 0.8 mm M6 × 1 mm M8 × 1.25 mm M10 × 1.5 mm	Bulb, Hex, Ribbed, Sleeve, Smooth	Aluminum, Brass, Stainless Steel, Steel, Titanium	Five mandrel and nosepiece sets (8-32, 10-32, 1/4"-20, 5/16"-18, and 3/8"-16) Four nosepieces (1/8", 5/32", 3/16", and 1/4")	6879A46	0000000

Accessories for Rivet Tools

		Each
⅛", ⁵⁄₃₂", ³⁄₁₆", ¼" Jaw (Two Jaw Parts)	6879A47	000000
⅛" Nosepiece	6879A48	00000
⁵⁄₃₂" Nosepiece	6879A49	00000
³⁄₁₆" Nosepiece	6879A51	00000
¼" Nosepiece	6879A52	00000
6-32 Mandrel and Nosepiece Set	6879A53	00000
8-32 Mandrel and Nosepiece Set	6879A54	00000
10-24 Mandrel and Nosepiece Set	6879A55	00000
10-32 Mandrel and Nosepiece Set	6879A56	00000
¼"-20 Mandrel and Nosepiece Set	6879A57	00000
¼"-28 Mandrel and Nosepiece Set	6879A58	00000
⁵⁄₁₆"-18 Mandrel and Nosepiece Set	6879A62	00000
⁵⁄₁₆"-24 Mandrel and Nosepiece Set	6879A63	00000
⅜"-16 Mandrel and Nosepiece Set	6879A59	00000
⅜"-24 Mandrel and Nosepiece Set	6879A61	00000
M4 × 0.7 mm Mandrel and Nosepiece Set	6879A64	00000
M5 × 0.8 mm Mandrel and Nosepiece Set	6879A65	00000
M6 × 1 mm Mandrel and Nosepiece Set	6879A69	00000
M8 × 1.25 mm Mandrel and Nosepiece Set	6879A67	00000
M10 × 1.5 mm Mandrel and Nosepiece Set	6879A68	00000

Removal Tools for Push-In Rivets

Pull out plastic push-in rivets without scratching or deforming the surface they’re installed in. These tools are also known as panel-clip pliers and trim-clip pliers.

Sold Individually


Prying	Gripping Straight Nose

Gripping Bent Nose 30° Jaw Bend	Gripping Bent Nose 80° Jaw Bend

Prying—Prying tools have a flat forked jaw that slides under the head of an installed rivet. Squeeze the handles to push the head up.

Gripping—Use gripping tools to grasp rivet heads around the sides when you can't slide under the rivet head.

Jaw Bend—Choose a tool with a jaw bend angle when you need to access a rivet around obstructions.

	Jaw Bend	Lg.	Wd.	Ht.	Max. Jaw Opening	Material	Grip Material		Each
Prying



	Straight	—	9"	3 1/4"	1 1/4"	1"	Steel	Rubber	8615N112	000000


	Gripping



			Straight	—	6 3/4"	5 1/8"	3/4"	1 1/2"	Steel	Rubber	8615N114	00000


			Bend	30°	6 3/4"	5 1/8"	3/4"	1 1/2"	Steel	Rubber	8615N115	00000
			Bend	80°	6 5/8"	5 1/8"	7/8"	1 1/2"	Steel	Rubber	8615N113	00000

Sold as Assortments

No. of Pieces	Includes	Max. Jaw Opening	Material	Grip Material		Each
3	One Gripping Removal Tool with 30° Jaw Bend One Gripping Removal Tool with 80° Jaw Bend One Prying Removal Tool	1 1/2"	Steel	Rubber	8615N111	000000
