    9 Products
    About Rivets
    industrial info icon

    Learn how to install blind and solid rivets with recommended tools.

    18-8 Stainless Steel Hex-Drive Rivets

    Image of ProductInUse. Installed. Top orientation. Contains Annotated, Border. Rivets. 18-8 Stainless Steel Hex-Drive Rivets.
    Image of Product. Front orientation. Contains Annotated. 18-8 Stainless Steel Hex-Drive Rivets.

    Installed

    Also known as fab-lock fasteners, these rivets consist of a sleeved screw and a hex-washer head. They’re made of 18-8 stainless steel to resist corrosion in wet environments. When you turn the hex drive, the sleeve fans out against the back of your material to resist vibration, expansion, and contraction. Install these rivets into holes with a wrench and socket—you only need access to one side of the material.
    For Material
    Thk.
    Lg.
    For Hole
    Size
    For Drill
    Bit Size
    Head
    Dia.
    Head
    Ht.
    Thread
    Size
    Washer
    Dia.
    Shear Strength,
    lbf
    Tensile
    Strength
    Material
    Washer
    Material
    Sleeve
    Material
    Pkg.
    Qty.
    Pkg.
    5/16" Wide Hex
    0.062" to 0.25"1.373"0.313"5/16"0.688"0.375"10-24
    		0.5"1,950Not Rated18-8 Stainless SteelEPDM
    		5052 Aluminum
    		597111A416000000
    0.25" to 0.5"1.612"0.313"5/16"0.688"0.375"10-24
    		0.5"1,950Not Rated18-8 Stainless SteelEPDM
    		5052 Aluminum
    		597111A41800000
    0.5" to 0.75"1.807"0.313"5/16"0.688"0.375"10-24
    		0.5"1,950Not Rated18-8 Stainless SteelEPDM
    		5052 Aluminum
    		597111A42300000

    Accessories and Replacements for Rivets
    Rivet Tools
    Image of Product. Front orientation. Rivet Tools. 18-8 Stainless Steel Hex-Drive Rivets, Drivers.
    Image of Product. Front orientation. Rivet Tools. 18-8 Stainless Steel Hex-Drive Rivets, Drill Bit/Drivers.

    Drivers

    Drill Bit/Drivers

    Drivers—To speed up installation, pair a driver tool with your drill. The tool includes a sleeve to hold the rivet head in place and a socket to turn the hex drive.
    Drill Bit/Drivers—Use a drill bit/driver tool for the fastest installation—you can drill a hole and install the rivet without switching tools. Drill a hole with the bit, then slide the driver tool over it. The base of the bit mates with the driver tool and turns the internal socket. A magnet at the end of the driver tool holds the rivet head in place while you turn the hex drive.
    Material
    Lg.
    Dia.
    No. of
    Pieces
    Includes
    Each
    Drivers
    Steel
    		2 1/8"1 1/2"2Sleeve, Socket97111A137000000

    Drill Bit/Drivers
    Steel
    		7 1/8"7/8"2Bit, Driver9278N11000000

    Rivet Tool Accessories and Replacement Parts
    Pkg.
    Qty.
    Pkg.
    Replacement Bits for Drill Bit/Driver Tools59278N12000000

    Steel Hex-Drive Rivets

    Image of ProductInUse. Installed. Top orientation. Contains Annotated, Border. Rivets. Steel Hex-Drive Rivets.
    Image of Product. Front orientation. Contains Annotated. Steel Hex-Drive Rivets.

    Installed

    Also known as fab-lock fasteners, these rivets consist of a sleeved screw and a hex-washer head. When you turn the hex drive, the sleeve fans out against the back of your material to resist vibration, expansion, and contraction. Install these rivets into holes with a wrench and socket—you only need access to one side of the material.
    For Material
    Thk.
    Lg.
    For Hole
    Size
    For Drill
    Bit Size
    Head
    Dia.
    Head
    Ht.
    Thread
    Size
    Washer
    Dia.
    Shear Strength,
    lbf
    Tensile Strength,
    lbf
    Material
    Washer
    Material
    Sleeve
    Material
    Pkg.
    Qty.
    Pkg.
    5/16" Wide Hex
    0.062" to 0.25"1.373"0.313"5/16"0.688"0.375"10-24
    		0.5"2,150200Steel
    		EPDM
    		5052 Aluminum
    		1097111A212000000
    0.25" to 0.5"1.612"0.313"5/16"0.688"0.375"10-24
    		0.5"2,150200Steel
    		EPDM
    		5052 Aluminum
    		1097111A21600000
    0.5" to 0.75"1.807"0.313"5/16"0.688"0.375"10-24
    		0.5"2,150130Steel
    		EPDM
    		5052 Aluminum
    		597111A2180000

    Accessories and Replacements for Rivets
    Rivet Tools
    Image of Product. Front orientation. Rivet Tools. Steel Hex-Drive Rivets, Drivers.
    Image of Product. Front orientation. Rivet Tools. Steel Hex-Drive Rivets, Drill Bit/Drivers.

    Drivers

    Drill Bit/Drivers

    Drivers—To speed up installation, pair a driver tool with your drill. The tool includes a sleeve to hold the rivet head in place and a socket to turn the hex drive.
    Drill Bit/Drivers—Use a drill bit/driver tool for the fastest installation—you can drill a hole and install the rivet without switching tools. Drill a hole with the bit, then slide the driver tool over it. The base of the bit mates with the driver tool and turns the internal socket. A magnet at the end of the driver tool holds the rivet head in place while you turn the hex drive.
    Material
    Lg.
    Dia.
    No. of
    Pieces
    Includes
    Each
    Drivers
    Steel
    		2 1/8"1 1/2"2Sleeve, Socket97111A137000000

    Drill Bit/Drivers
    Steel
    		7 1/8"7/8"2Bit, Driver9278N11000000

    Rivet Tool Accessories and Replacement Parts
    Pkg.
    Qty.
    Pkg.
    Replacement Bits for Drill Bit/Driver Tools59278N12000000

    Tools for Hex-Drive Rivets

    Pair these tools with your drill to install hex-drive rivets—also known as fab-lock fasteners—faster than with a wrench and socket.
    Drivers
    Image of Product. Front orientation. Rivet Tools. Tools for Hex-Drive Rivets, Drivers.
    Drivers are for installing rivets in existing holes. They include a sleeve to hold the rivet head in place and a socket to turn the hex drive.
    For Hex
    Wd.
    Material
    Lg.
    Dia.
    No. of
    Pieces
    Includes
    Each
    5/16"Steel
    		2 1/8"1 1/2"2Sleeve
    Socket    		97111A137000000
    Drill Bit/Drivers

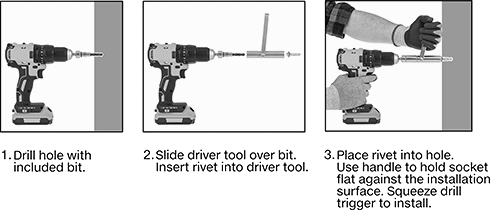

    Image of ProductInUse. Front orientation. Contains Annotated, Border, MultipleImages. Rivet Tools. Tools for Hex-Drive Rivets, Drill Bit/Drivers.
    Image of Product. Front orientation. Rivet Tools. Tools for Hex-Drive Rivets, Drill Bit/Drivers.
    Drill bit/drivers let you drill a hole and install the rivet with a single tool.
    Rivet Tools
    Replacement
    Drill Bits
    For Hex
    Wd.
    Material
    Lg.
    Dia.
    No. of
    Pieces
    Includes
    Each
    Pkg.
    Qty.
    Pkg.
    5/16"Steel
    		7 1/8"7/8"2Bit
    Driver    		9278N11000000059278N12000000
