Maximum Expanded Width Maximum Expanded Width |
|---|
|
|
|
Mounting Location Mounting Location |
|---|
|
Finish Finish |
|---|
|
Mobility Mobility |
|---|
|
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration,Evaluation, Authorization and Restriction of Chemicals) |
|---|
|
Color Color |
|---|
 | Yellow |
 | Black/White |
Folding Security Gates
Mount gates on one side of the doorway and lock them on the other to secure doorways and other large openings without sacrificing visibility and air circulation. The top of the gate mounts to the inside or outside of the door frame; the bottom mounts into the floor. When folded, gates can swing out of the opening.
Expanded | Mount. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. Wd., ft. | Ht., ft. | Folded Wd. | Material | Hasp Type | For Max. Padlock Shackle Dia. | For Use Outdoors | Fasteners Included | Hole Dia. | Each | |
6 1/2 ft. Folded Ht. | ||||||||||
| 4 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 0000000 |
| 5 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 6 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 7 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 8 | 6 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 9 | 6 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 10 | 6 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
7 1/2 ft. Folded Ht. | ||||||||||
| 4 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 5 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 6 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 7 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 8 | 7 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 9 | 7 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 10 | 7 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
8 1/2 ft. Folded Ht. | ||||||||||
| 4 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 5 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 6 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 7 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 8 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 9 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 10 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
Folding Security Double Gates
Mount gates on each side of the doorway and lock them together in the center to secure doorways and other large openings without sacrificing visibility and air circulation. The top of the gate mounts to the inside or outside of the door frame; the bottom mounts into the floor. When folded, gates can swing out of the opening.
Optional extra-clearance brackets allow you to mount double gates adjacent to overhead door rails or other obstacles.
Expanded | Mount. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. Wd., ft. | Ht., ft. | Folded Wd. | Material | Hasp Type | For Max. Padlock Shackle Dia. | For Use Outdoors | Fasteners Included | Hole Dia. | Each | |
6 1/2 ft. Folded Ht. | ||||||||||
| 6 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 0000000 |
| 8 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 10 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 12 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 14 | 6 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 16 | 6 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 18 | 6 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 20 | 6 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
7 1/2 ft. Folded Ht. | ||||||||||
| 6 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 8 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 10 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 12 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 14 | 7 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 16 | 7 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 18 | 7 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 20 | 7 | 14" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 00000000 |
8 1/2 ft. Folded Ht. | ||||||||||
| 6 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 8 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 10 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 12 | 8 | 11" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 14 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 16 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 000000 |
| 18 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 00000000 |
| 20 | 8 | 15" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 1/4" | 0000000 | 00000000 |
Optional Extra-Clearance Brackets
| Projection | Wall-to-Gate Clearance | Pair | |
| 9" | 7 1/4" | 0000000 | 0000000 |
Mobile Folding Security Gates
Roll these portable, wall-mounted gates wherever you need temporary access control. They secure doorways and other large openings without sacrificing visibility and air circulation.
Add-on gate (sold separately) bolts to end of the gate to add 6 feet of width. Multiple add-on gates can be combined.
Expanded | Folded | Wheel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Wd., ft. | Ht., ft. | Wd. | Ht., ft. | Material | Caster Type | Dia. | Material | Hasp Type | For Max. Padlock Shackle Dia. | For Use Outdoors | Includes | Each | |
| 12 | 6 | 27" | 6 1/2 | Galvanized Steel | Six Swivel Casters with Brakes | 3" | Rubber | Padlockable | 5/8" | Yes | Hardware for Temporary Wall Mounting | 0000000 | 000000000 |
Add-On Gate
Expanded | Folded | Wheel | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Wd., ft. | Ht., ft. | Wd. | Ht., ft. | Material | Caster Type | Dia. | Material | For Use Outdoors | Mount. Fasteners Included | Each | |
| 6 | 6 | 11" | 6 1/2 | Galvanized Steel | Two Swivel with Brakes | 3" | Rubber | Yes | Yes | 0000000 | 0000000 |
Folding Security Gates for Windows
Secure windows and other small openings without sacrificing visibility and air circulation. These gates mount to the inside or outside of the window frame.
Expanded | Folded | Mount. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Wd., ft. | Ht. | Wd. | Ht. | Material | Hasp Type | For Max. Padlock Shackle Dia. | For Use Outdoors | Fasteners Included | Hole Dia. | Each | |
| 4 | 25" | 7" | 31" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 0000000 |
| 4 | 27" | 7" | 33" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 31" | 7" | 37" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 34" | 7" | 40" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 37" | 7" | 43" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 40" | 7" | 46" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 43" | 7" | 49" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 53" | 7" | 59" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 55" | 7" | 61" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 57" | 7" | 63" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 60" | 7" | 66" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |
| 4 | 65" | 7" | 71" | Galvanized Steel | Padlockable | 5/8" | Yes | No | 5/16" | 0000000 | 000000 |

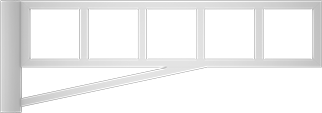

Parking Gates
Slide these gates over steel guard posts to control access to parking lots and dock doors.
For technical drawings and 3-D models, click on a part number.
Parking Gates
For Guard Post | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Overall Lg., ft. | Ht. | Material Thick. | Material | Color | Dia. | Min. Ht. | Swing Direction | Specifications Met | Each | |
| 5 | 40 1/4" | 1/8" | Powder-Coated Steel | Yellow | 6 5/8" | 40 1/4" | Two Way | OSHA Compliant 29 CFR 1910.29 | 0000000 | 0000000 |
| 6 | 40 1/4" | 1/8" | Powder-Coated Steel | Yellow | 6 5/8" | 40 1/4" | Two Way | OSHA Compliant 29 CFR 1910.29 | 0000000 | 000000 |
| 7 | 40 1/4" | 1/8" | Powder-Coated Steel | Yellow | 6 5/8" | 40 1/4" | Two Way | OSHA Compliant 29 CFR 1910.29 | 0000000 | 00000000 |
| 8 | 40 1/4" | 1/8" | Powder-Coated Steel | Yellow | 6 5/8" | 40 1/4" | Two Way | OSHA Compliant 29 CFR 1910.29 | 0000000 | 00000000 |
| 9 | 40 1/4" | 1/8" | Powder-Coated Steel | Yellow | 6 5/8" | 40 1/4" | Two Way | OSHA Compliant 29 CFR 1910.29 | 0000000 | 00000000 |
| 10 | 40 1/4" | 1/8" | Powder-Coated Steel | Yellow | 6 5/8" | 40 1/4" | Two Way | OSHA Compliant 29 CFR 1910.29 | 0000000 | 00000000 |
Fold-Up Railings
Create a temporary barrier around hazards such as open manholes.
For technical drawings and 3-D models, click on a part number.
Max. Guarded | |||||||
|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Top Rail Ht. | Rail Dia. | Material | Color | Each | |
| 32" | 32" | 42" | 1" | Powder-Coated Steel | Yellow | 0000000 | 0000000 |
