Nonconductive Build-Your-Own Fixed Work Platforms


These platforms are nonconductive fiberglass. Configure them to fit your application. For good slip resistance, platforms are perforated and stairs are grit coated.

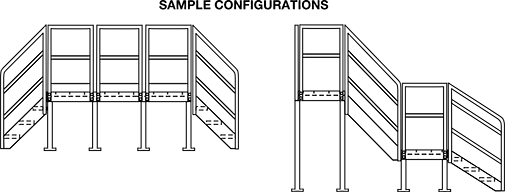

First, determine how high your work platform needs to be and choose the stairs that accommodate that height. Then, choose a platform section based on the desired length. Next, choose platform supports that correspond to the height of your stairs—each end of the platform must be supported by a platform support. Finally, choose handrails for the stairs and platform. Assembled work platforms should be secured to a supporting surface (mounting hardware not included).
Note: Work platforms meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.
Lg. | Wd. | Cap., lbs. | Platform Tread | Color | Assembled or Unassembled | Mounting Hardware Included | Specifications Met | Each | |
Fiberglass | |||||||||
---|---|---|---|---|---|---|---|---|---|
30" | 30" | 500 | Perforated | Gray | Unassembled | No | OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 0000000 |
60" | 30" | 500 | Perforated | Gray | Unassembled | No | OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 00000000 |
120" | 30" | 500 | Perforated | Gray | Unassembled | No | OSHA Compliant 29 CFR 1910 Subpart D | 0000000 | 00000000 |
