Solid-Tread Flat-Free Wheels
Tread
Pattern
The thick, solid rubber or polyurethane foam treads provide the cushioned ride of an air-filled pneumatic wheel without the possibility of a flat tire. Polyurethane foam wheels are lightweight and water- and UV resistant. Ball bearings are the easiest to roll.
Center-mount hubs are symmetrical for equal clearance on both sides of the wheel.
Wheel | Temp. Range, °F | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia. | Wd. | Hub Lg. | Cap. per Wheel, lbs. | Tread Pattern | Hardness Rating | Hardness | Nonmarking Wheels | Min. | Choose For Axle Dia. | Each | |
Center-Mount Hub with Ball Bearings | |||||||||||
Polyurethane Foam Tread on Steel Core | |||||||||||
| 16 1/4" | 3 3/8" | 3" | 1,000 | Straight Line | Soft | Durometer 65A | Yes | -20° | 3/4" | 00000000 | 0000000 |
| 16 1/4" | 3 3/8" | 6" | 1,000 | Straight Line | Soft | Durometer 65A | Yes | -20° | 00000000 | 000000 | |

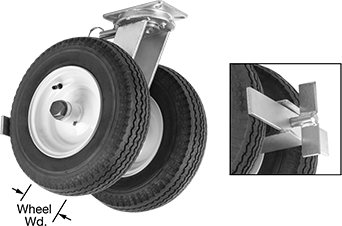

Extra-High-Capacity Plate Casters with Rubber Wheels
Air-filled rubber tires cushion your load when rolling over rough or uneven surfaces. Their dual-wheel design provides better load distribution and easier turning than single-wheel casters.
Wheels have roller bearings for smooth rolling.
Swivel casters have double-ball bearings for the smoothest swiveling. Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal. Casters with swivel lock prevent the caster from swiveling with a twist of the ring.
For technical drawings and 3-D models, click on a part number.
Wheel | ||||||
|---|---|---|---|---|---|---|
| Dia. | Wd. | Mount Ht. | Cap. per Caster, lbs. | Tire Size | Each | |
Rigid | ||||||
Black Pneumatic Wheels—Soft | ||||||
| 16 1/4" | 4 13/16" | 19 1/8" | 2,000 | 4.80/4.00-8 | 00000000 | 0000000 |
Swivel  | ||||||
Black Pneumatic Wheels—Soft | ||||||
| 16 1/4" | 4 13/16" | 19 1/8" | 2,000 | 4.80/4.00-8 | 00000000 | 000000 |
Swivel with Brake and Swivel Lock | ||||||
Black Pneumatic Wheels—Soft | ||||||
| 16 1/4" | 4 13/16" | 19 1/8" | 2,000 | 4.80/4.00-8 | 000000000 | 00000000 |
