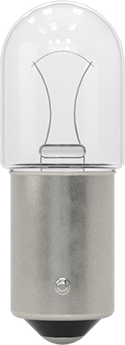

Miniature Light Bulb
Bayonet Base, Single Contact, Tubular, Trade No. 755

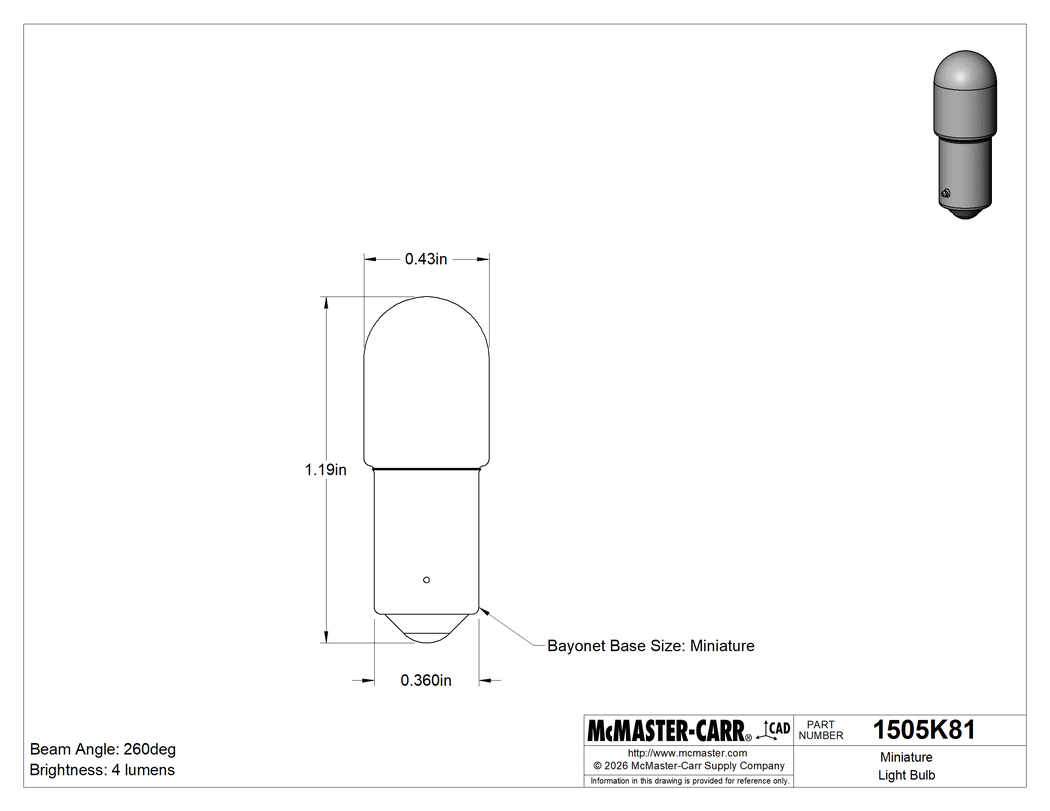

2-D PDF
$7.32 per pack of 10
In stock
1505K81
Packs of 10
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Base | |
Type | Bayonet |
Size | Miniature |
Diameter | 0.36" |
Contact Style | Single |
Bulb Shape | Tubular |
Bulb Trade Number | 755 |
Voltage | 6.3V AC/6.3V DC |
Wattage | 0.9W |
Brightness | 4 lumens |
Current | 0.15A |
Resistor Required | No |
Light Technology | Incand. |
Bulb Material | Glass |
Rated Life | Not Rated |
Rated Life @ 3 Hours per Day | Not Rated |
Bulb Diameter | 0.41" |
Overall Length | 1.19" |
Bulb Shape No. | T3 1/4 |
Base Number | BA9s |
Temperature Range | |
Minimum | Not Rated |
Maximum | Not Rated |
Beam | |
Spread | Sphere |
Angle | 260° |
Color | Clear |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (01/17/2022, 223 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | Peoples Republic of China |
Schedule B | 853929.2500 |
ECCN | EAR99 |
Pins on either side of the base lock these bulbs into sockets. These bulbs are sized to fit tight spaces such as indicators and vehicle lights. Brightness is measured in lumens; the higher the lumens, the brighter the bulb.
Incandescent bulbs are traditional light bulbs.
The information in this 3-D model is provided for reference only.
