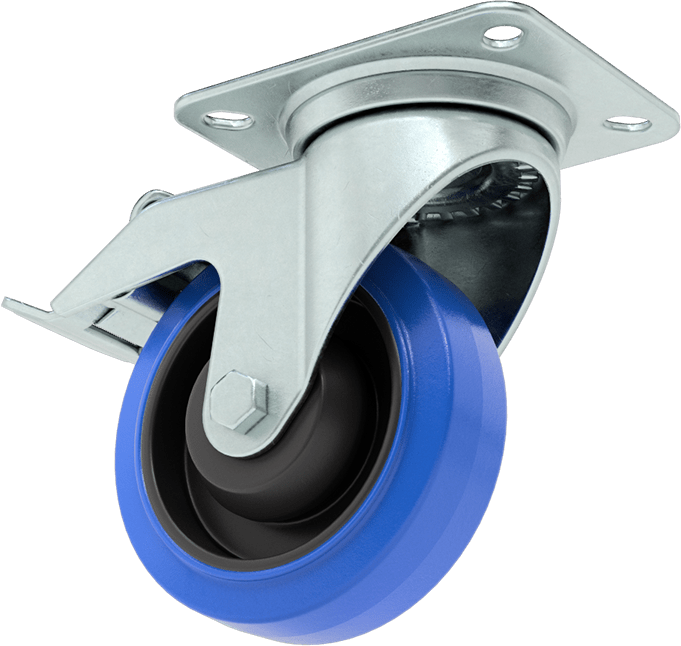

Easy-Roll Caster
Blue Rubber Wheel, Swivel with Brake, 4" Diameter Wheel
Mounting Plate | |
Length | 3 15/16" |
Width | 3 3/8" |
Style | 1 |
Wheel | |
Diameter | 4" |
Width | 1 1/4" |
Number of | 1 |
Nonmarking Wheels | Yes |
Wheel Color | Blue |
Wheel Type | Tread on Core |
Wheel/Tread Material | Rubber |
Hardness Rating | Soft |
Hardness | Durometer 65A |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake and Swivel Lock (Total Lock) |
Mount Height | 4 15/16" |
Weight Capacity per Caster | 330 lb. |
Tread Style | Flat |
Wheel Bearing | |
Type | Ball |
Material | Steel |
Seal Type | Shielded |
For Screw Size | 5/16" |
Frame | |
Fabrication | Stamped |
Material | Zinc-Plated Steel |
Caster Swivel Construction | Kingpin |
Swivel Bearing | |
Type | Ball |
Seal Type | Sealed |
Wheel Core Material | Nylon |
Brake | |
Location | Face |
Activation | Foot Pedal |
For Surface Type | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
Mount Type | Plate |
Mounting Fasteners Included | No |
Mounting Holes | |
Center-to-Center Length (A) | 3 1/8" |
Center-to-Center Length (B) | 3" |
Center-to-Center Width (A) | 2 3/8" |
Center-to-Center Width (B) | 2 3/16" |
Performance | Easy Roll |
Swivel-Lock Activation | Foot Pedal |
Country of Origin | Germany |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Made from a special blend of rubber, the wheels on these casters roll easily over smooth and rough surfaces. They have a hard nylon core for strength with a soft, cushioning rubber tread.
Ball bearings in the wheel provide smooth rolling and are shielded to resist dust and debris.
Swivel Casters—Swivel casters have completely sealed ball bearings for smooth swiveling and the best protection against dust and debris.
Wheel Brake and Swivel Lock (Total Lock)—Casters with total lock brake the wheel and lock the swivel with one press of the foot pedal.

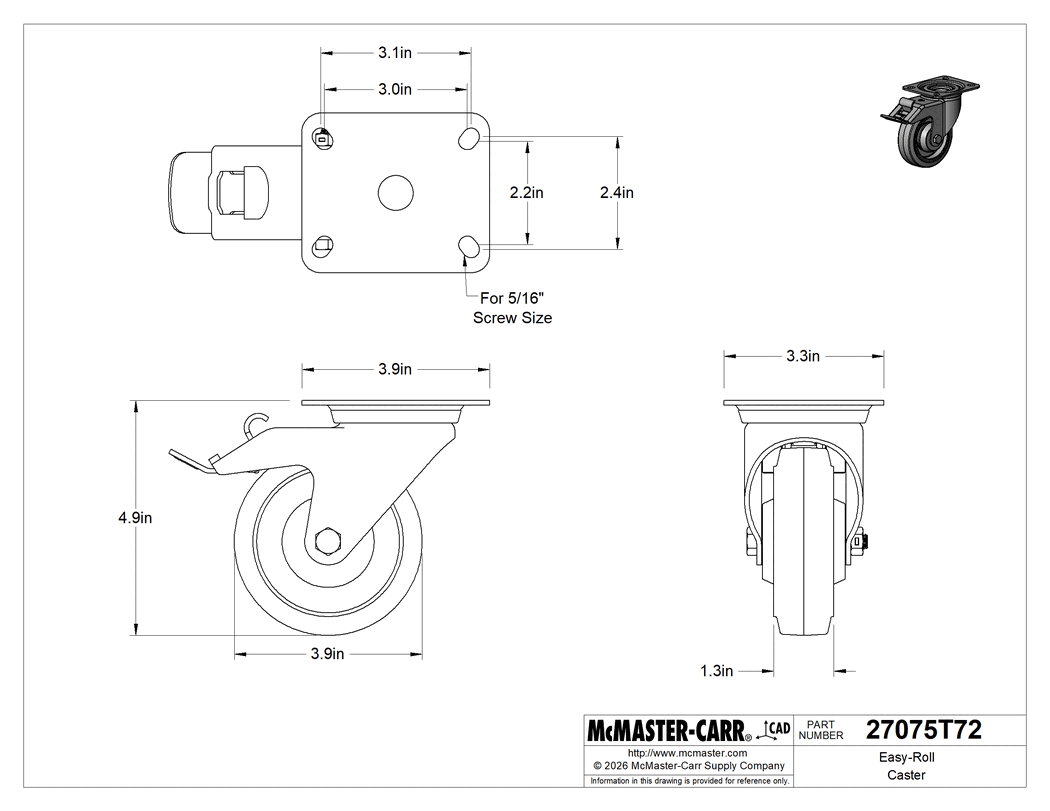

The information in this 3-D model is provided for reference only.
