    Single Scale Pressure Gauge with Plastic Case

    1/8 NPT Male Center Back Connection, 1-1/2" Dial

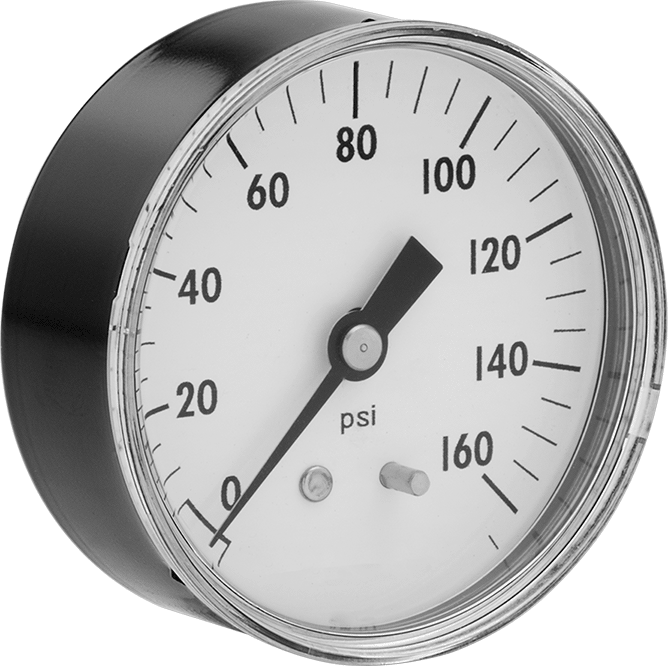

    Image of Product. Front orientation. Single Scale Pressure Gauge with Plastic Case, 1/8 NPT Male Center Back Connection, 1-1/2" Dial.

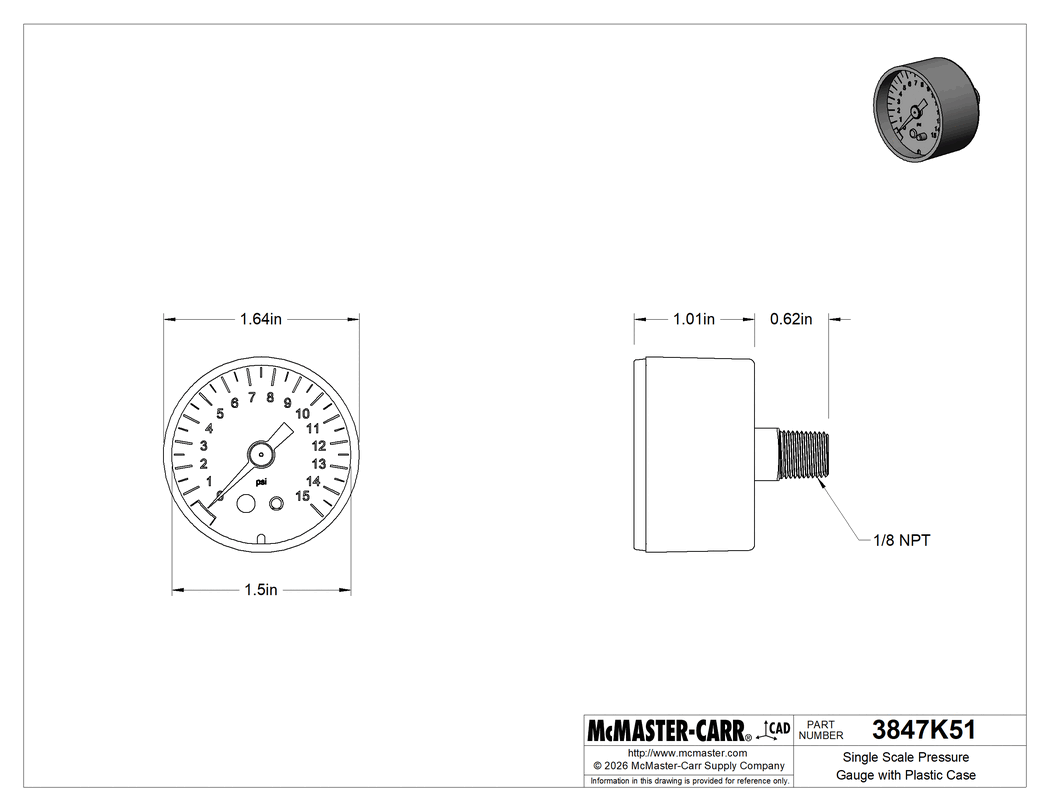

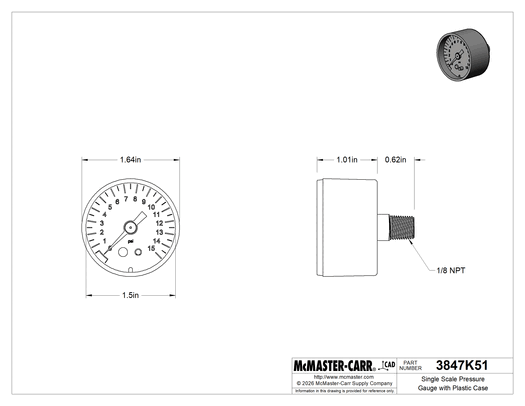

    Technical drawing of Single Scale Pressure Gauge with Plastic Case, 1/8 NPT Male Center Back Connection, 1-1/2" Dial.
    Image of Product. Front orientation. Single Scale Pressure Gauge with Plastic Case, 1/8 NPT Male Center Back Connection, 1-1/2" Dial.
    Image of Product. Front orientation. Single Scale Pressure Gauge with Plastic Case, 1/8 NPT Male Center Back Connection, 1-1/2" Dial.

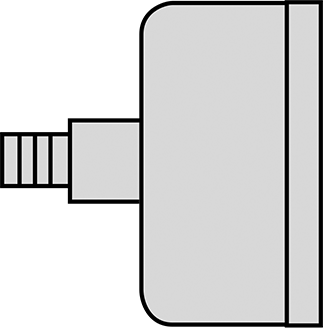

    Image of Attribute. Center Back Connection. Front orientation. Single Scale Pressure Gauge with Plastic Case, 1/8 NPT Male Center Back Connection, 1-1/2" Dial.
    Center Back Connection
    2-D PDF
    Pressure Range, psi
    Pressure Range, psi
    0 to 15
    0 to 30
    0 to 60
    0 to 100
    0 to 160
    0 to 200
    0 to 300
    0 to 400
    0 to 600
    0 to 1,000
    Each
    3847K72
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Measures

    Pressure

    For Use With

    Air, Ethyl Alcohol, Hydraulic Fluid, Natural Gas, Nitrogen, Water

    Display Type

    Dial

    Dial Type

    Dry

    Dial Diameter

    1 1/2"

    Pipe Size

    1/8

    Scale Type

    Single

    Scale

    psi

    Environment Temperature Range

    -40° to 150° F

    Process Temperature Range

    -40° to 150° F

    Connection Type

    Pipe

    Pipe Connection Type

    Threaded

    Thread Type

    NPT

    Gender

    Male

    Case Material

    ABS Plastic

    Case Color

    Black

    Connection Material

    Brass

    Lens Material

    Polycarbonate Plastic

    Accuracy

    ±2%

    Accuracy Scale

    Mid Scale

    Accuracy Grade

    B

    Mounting Orientation

    Any

    Connection Location

    Center Back

    RoHS

    Not Compliant

    REACH

    Not Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    Brazil

    Schedule B

    902620.0000

    ECCN

    EAR99

    These are the most commonly used pressure gauges. Use them with pumps, filters, regulators, and in process lines to measure and display pressure.

    Gauges with 304 stainless steel case or ABS plastic case have better corrosion resistance than gauges with brass or steel case.
