Soft Masterkleer PVC Tubing for Air and Water
1/4" ID, 3/8" OD

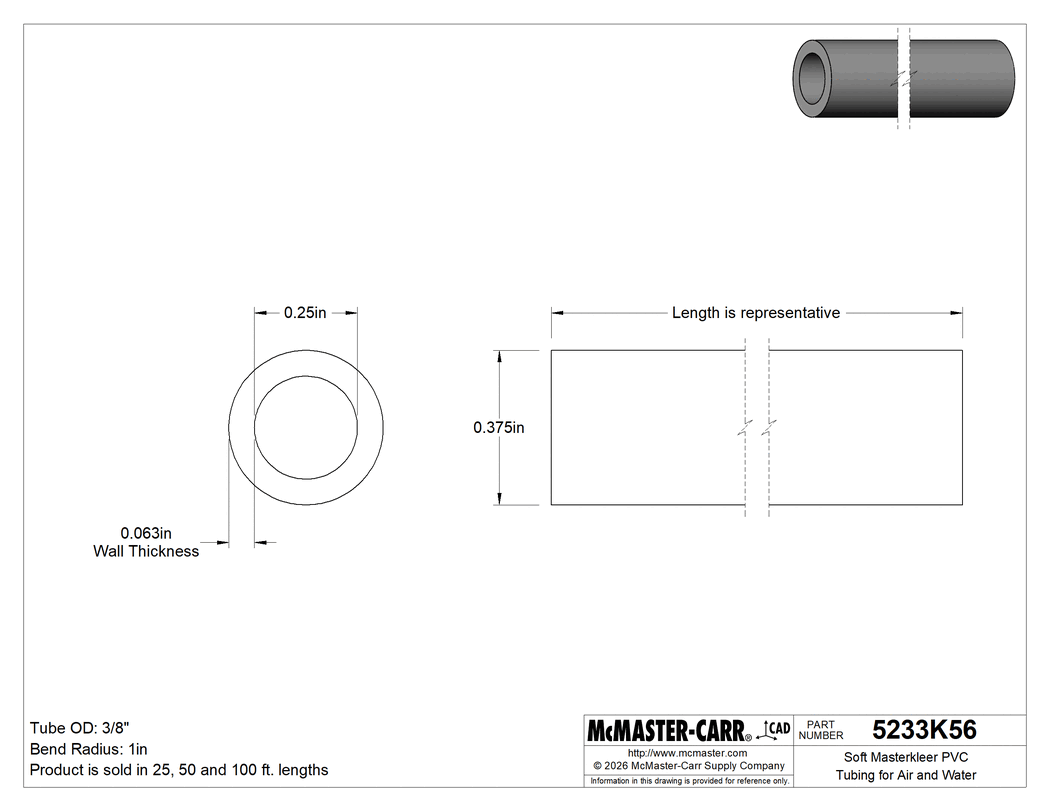

2-D PDF
Length, ft. Length, ft. |
|---|
|
Each
$0.42 per ft.
In stock
5233K56
Please specify length to download CAD.
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Water |
Material | PVC Plastic |
Trade Name | Masterkleer |
Tubing Hardness Rating | Soft |
Hardness | Durometer 70A |
End Type | Without Fittings |
Connection Type | Tube |
For Connection Style | Barbed |
For Barbed Connection Type | Barbed |
Clarity | Clear |
ID | 1/4" |
OD | 3/8" |
Wall Thickness | 1/16" |
Flexibility | Flexible |
Bend Radius | 1" |
Temperature Range | -40° to 140° F |
Maximum Pressure | 35 psi @ 72° F |
Maximum Vacuum | Not Rated @ Not Rated |
Color | Clear |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 391732.0000 |
ECCN | EAR99 |

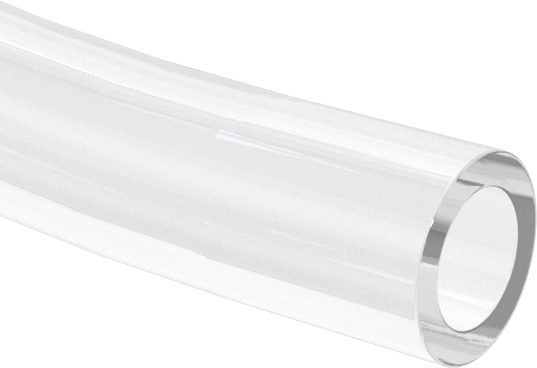

This general purpose PVC tubing is the industry standard for air and water applications. Tubing is clear, so you can easily monitor flow. It is flexible to easily bend around objects.
Masterkleer tubing is more economical than Tygon tubing.
The information in this 3-D model is provided for reference only.
