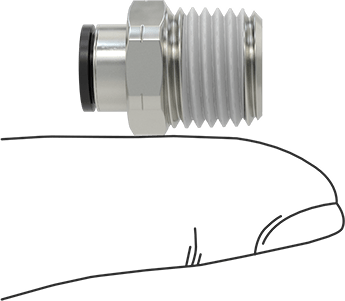

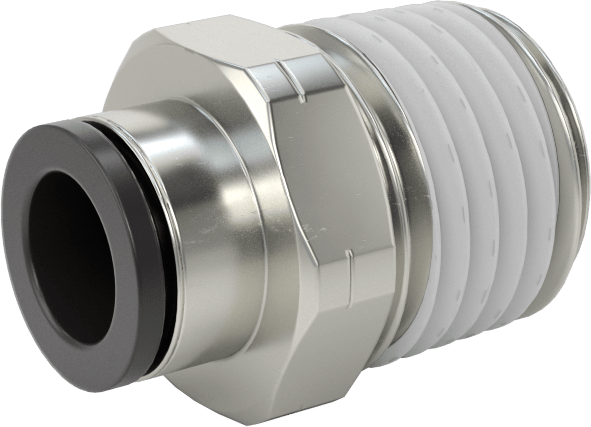

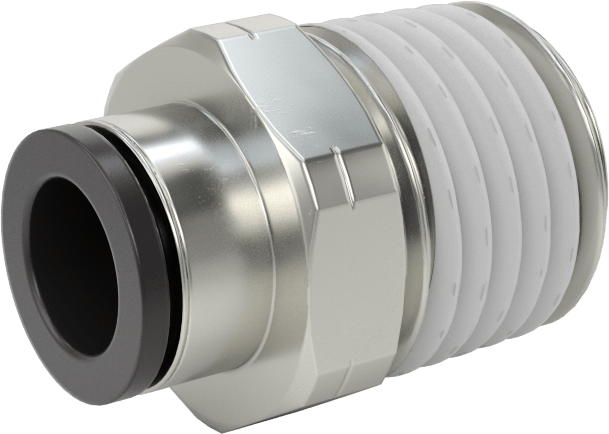

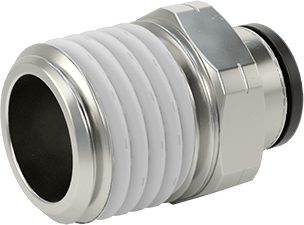

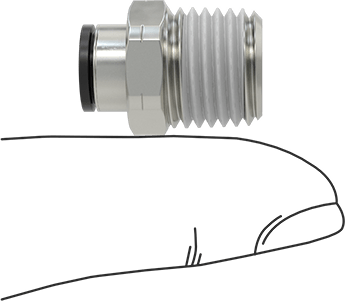

Push-to-Connect Tube Fitting for Air
Straight Adapter, for 1/4" Tube OD x 1/4 NPT Male
Shape | Straight |
Type | Adapter |
For Use With | Air |
Tube Connection | |
Connection Style | Push to Connect |
Push-to-Connect Type | Standard |
Gender | Female |
O-Ring Material | Buna-N Rubber |
For Tube OD | 1/4" |
Pipe Connection | |
Connection Style | Threaded |
Gender | Male |
Thread Type | NPT |
Pipe Size | 1/4 |
Material | Nickel-Plated Brass |
Release Type | Ring |
Release Ring | |
Material | Plastic |
Color | Black |
Maximum Pressure | 290 psi @ 72° F |
Maximum Vacuum | 28 in. of Hg @ 72° F |
Vacuum Rating | Standard |
Temperature Range | 0° to 170° F |
Length | 51/64" |
For Tube | |
Material | Polyethylene Plastic, Polyurethane Rubber |
Hardness Rating | Firm |
Hardness | Durometer 95A-45D |
Specifications Met | ISO 14743 |
Features | PTFE Thread Sealant |
RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | France |
Schedule B | 741220.0000 |
ECCN | EAR99 |

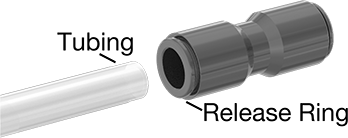

Insert tubing into these fittings and an internal gripping ring and O-ring hold the tubing tight. They are also known as instant fittings. To disconnect, push on the release ring and pull the tubing out of the fitting. Fittings have good corrosion resistance. Use them in low-pressure applications.
Identification rings (sold separately) snap over the release ring so you can color-code your lines.
Clips (sold separately) align and organize your tubing and fittings.
Fittings with PTFE thread sealant offer extra protection against leaks.

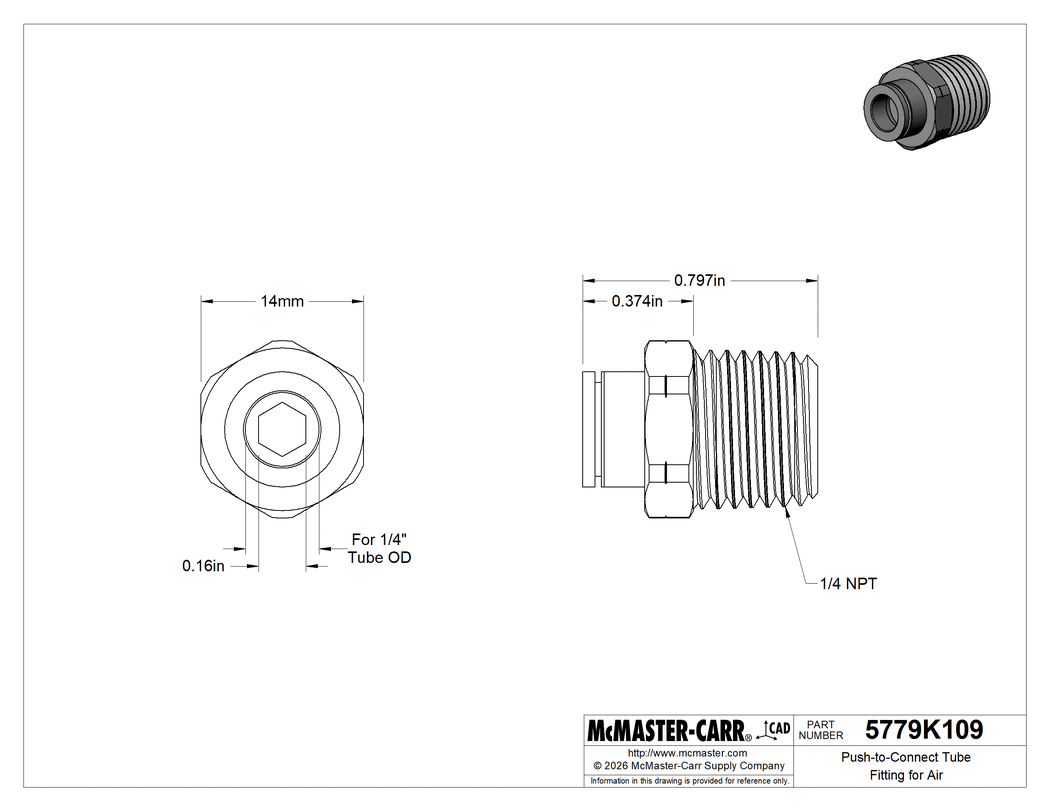

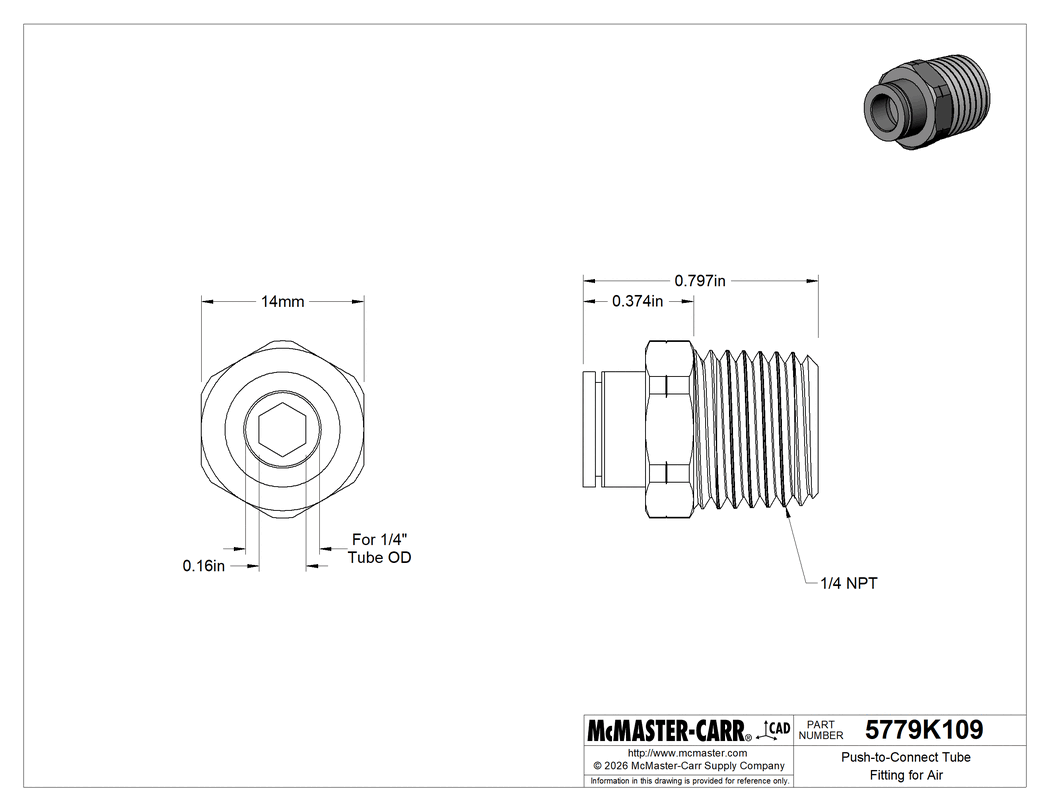

The information in this 3-D model is provided for reference only.
