    Round Body Air Cylinder Mount

    Double-Acting, Universal Mount, 1-1/16" Bore, 2" Stroke Length

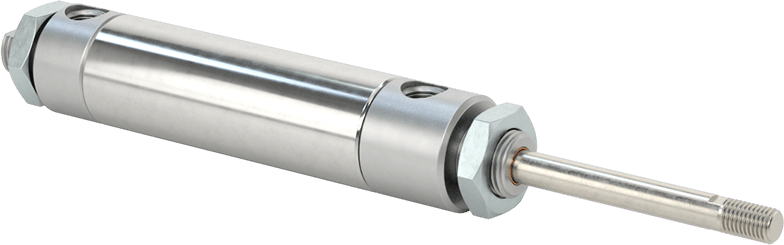

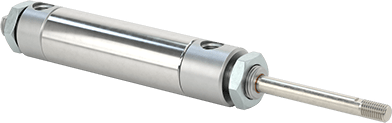

    Image of Product. Front orientation. Round Body Air Cylinder Mount, Double-Acting, Universal Mount, 1-1/16" Bore, 2" Stroke Length .

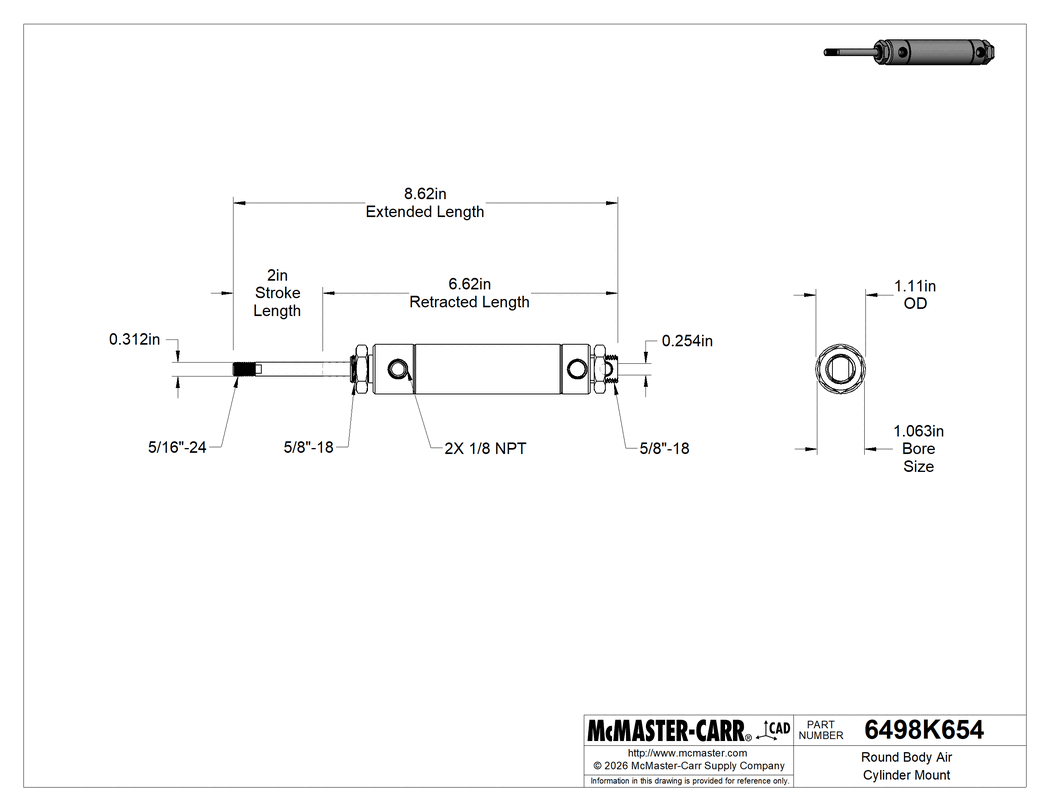

    Technical drawing of Round Body Air Cylinder Mount, Double-Acting, Universal Mount, 1-1/16" Bore, 2" Stroke Length .

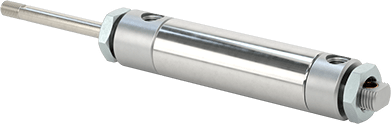

    Image of Product. Back orientation. Round Body Air Cylinder Mount, Double-Acting, Universal Mount, 1-1/16" Bore, 2" Stroke Length .

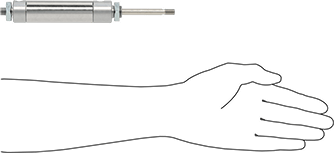

    Image of Product. Side1 orientation. Contains SizingReference. Round Body Air Cylinder Mount, Double-Acting, Universal Mount, 1-1/16" Bore, 2" Stroke Length .
    2-D PDF
    $53.01 Each
    In stock
    6498K654
    Each
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Motion

    Linear

    Air Actuator Type

    Air Cylinder

    Actuation

    Air

    Linear Air Cylinder Type

    Round Body

    Mounting Style

    Universal

    Mounting Orientation

    Any Angle

    System of Measurement

    Inch

    Bore Size

    1 1/16"

    OD

    1.12"

    Length

    Stroke

    2"

    Retracted

    6.62"

    Extended

    8.62"

    Force @ 50 psi

    45 lbs.

    Force @ 100 psi

    90 lbs.

    Force @ 150 psi

    135 lbs.

    Force @ 200 psi

    180 lbs.

    Sensor Ready

    Not Sensor Ready

    Air Cushion Type

    No Cushion

    Actuation Style

    Double Acting

    Actuation Mechanism

    Air Extend/Air Retract

    Repairable

    Nonrepairable

    Components Included

    Mounting Nuts, Pivot Bushing, Pivot Pin, Retaining Rings

    Number of Mounting Nuts Included

    2

    Body Material

    304 Stainless Steel

    End Cap Material

    Aluminum

    Mounting Nut Material

    Zinc-Plated Carbon Steel

    Rod

    Material

    303 Stainless Steel

    Diameter

    0.31"

    End Type

    Threaded

    Thread Size

    5/16"-24

    Air Inlet

    Pipe Size

    1/8

    Thread Type

    NPT

    Gender

    Female

    Bearing Type

    Sleeve

    Bearing Material

    Bronze

    Maximum Cycles

    47,520,000

    Maximum Pressure

    250 psi

    Pivot Pin Diameter

    0.25"

    Duty Cycle

    Continuous

    Temperature Range

    -20° F to 200° F

    RoHS

    RoHS 3 (2015/863/EU) compliant with exemption 6(b)-II - Lead as an alloying element in aluminum for machining purposes

    REACH

    Not Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    United States

    USMCA Qualifying

    No

    Schedule B

    841231.0080

    ECCN

    EAR99

    Push and pull light duty loads. These air cylinders use compressed air to both extend and retract, so they operate at nearly full force in either direction. They have a round body—the most common style of air cylinder—making them more compact and better suited for tight spaces than cylinders with external tie rods.

    Universal-mount cylinders have mounting threads on both ends. The back end has a pivot bushing, which allows for more mounting options than nose-mount cylinders.
