Cable
SJEOOW, Black Outer Insulation, 12 Gauge, 3 Wires
Voltage | 300V AC |
Cable Designation | SJEOOW |
Cable AWG | 12/3 |
Current @ Temperature | 25 amp @ 86° F |
Outer Jacket | |
Material | TPE |
Color | Black |
Temperature | -40° F to 220° F |
Flammability Rating | UL 2556 FT2 |
Certification | CSA Certified, UL Listed |
Environment | Outdoor |
Flexibility | Flexible |
Inner Insulation | |
Material | TPE |
Color | Black, Green, White |
Marking | Color Coded |
OD | 0.43" |
Performance | Abrasion Resistant, Tear Resistant, Oil Resistant, Chemical Resistant, Moisture Resistant, UV Resistant, Flame Retardant, Low Temperature, Flame Resistant |
Shielding | Unshielded |
Signal Type | Power |
Wire and Cable Use | Portable Power Supply |
Wire Construction | Stranded |
Wire Material | Unfinished Copper |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 854449.3080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Built for rough handling and frequent positioning, this cable delivers power you can count on. Use it for everything from extension cords to cords for hydraulic presses. Made to NEC Article 400 requirements, you can trust it to power whatever you need. Plus, the flexible jacket takes the struggle out of routing it through tight spaces and around machinery.

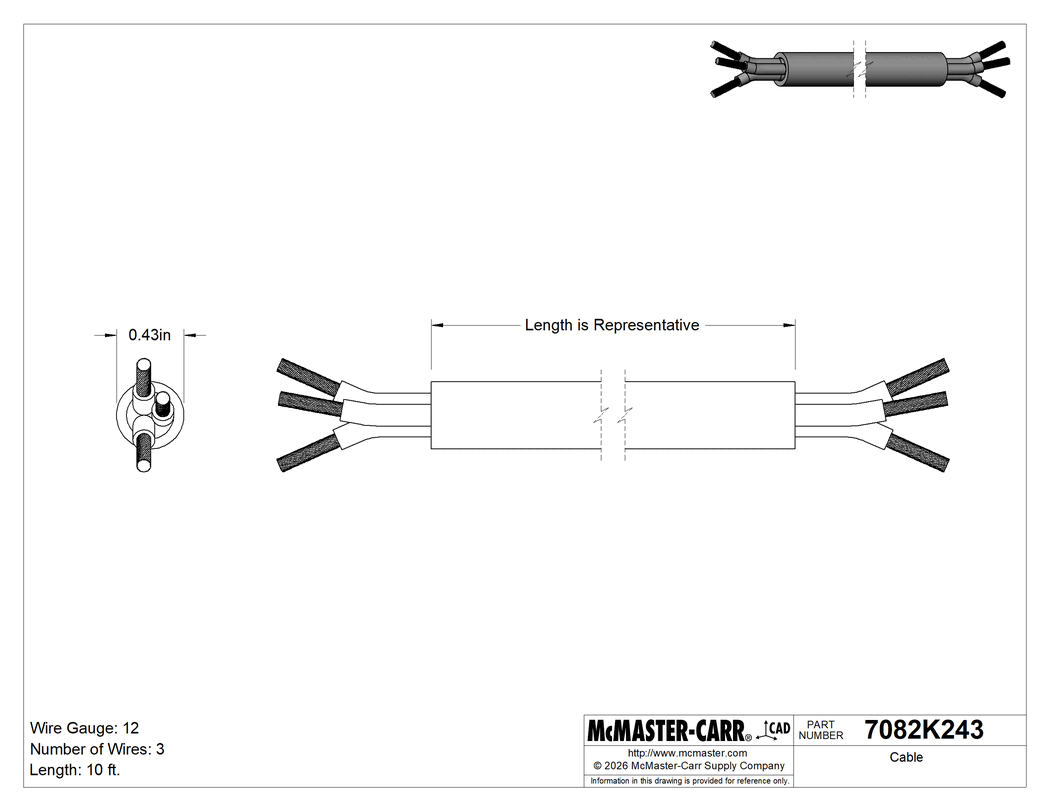

The information in this 3-D model is provided for reference only.
