Indoor Enclosure
with Lift-Off Cover and Knockouts, 6" x 6" x 4"
Cover Attachment Style | Lift Off |
Material | Powder-Coated Steel |
Width | 6" |
Height | 6" |
Depth | 4" |
Cover Closure Method | Screw |
With Knockouts | Yes |
External Mount Type | Mounting Hole |
Color | Gray |
Certification | UL Listed, CSA Certified |
Color Code | ANSI 61 |
Cover Clarity | Opaque |
Cover Material | Steel |
Enclosure Rating | NEMA 1 |
Environment | Indoor Only |
Inside | |
Width | 5 7/8" |
Height | 5 7/8" |
Depth | 3 7/8" |
Knockout Trade Size | 1/2, 3/4, 1 |
Mounting Fasteners Included | No |
Mounting Hole Diameter | 0.25" |
Mounting Screw Thread Size | 1/4"-20 |
Number of Knockouts | 12 |
Number of Mounting Holes | 4 |
Performance | Conduit Ready |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Like storage cabinets, these enclosures keep everything covered and out of the way to prevent debris from settling on the contents. They’re often used as circuit breaker boxes, junction boxes, and to house lighting or HVAC controls in areas away from moisture and flying dust.
Lift-Off Cover—The removable, screw-secured cover is best for full access during setup or service, but not for frequent entry.
Powder-Coated Steel—Inherently strong, these enclosures resist denting and cracking better than our other metal options. The coating forms a barrier against water and mild detergents, but if scratched, the underlying steel may rust.
Run wire and cable
Mount
Control circuits

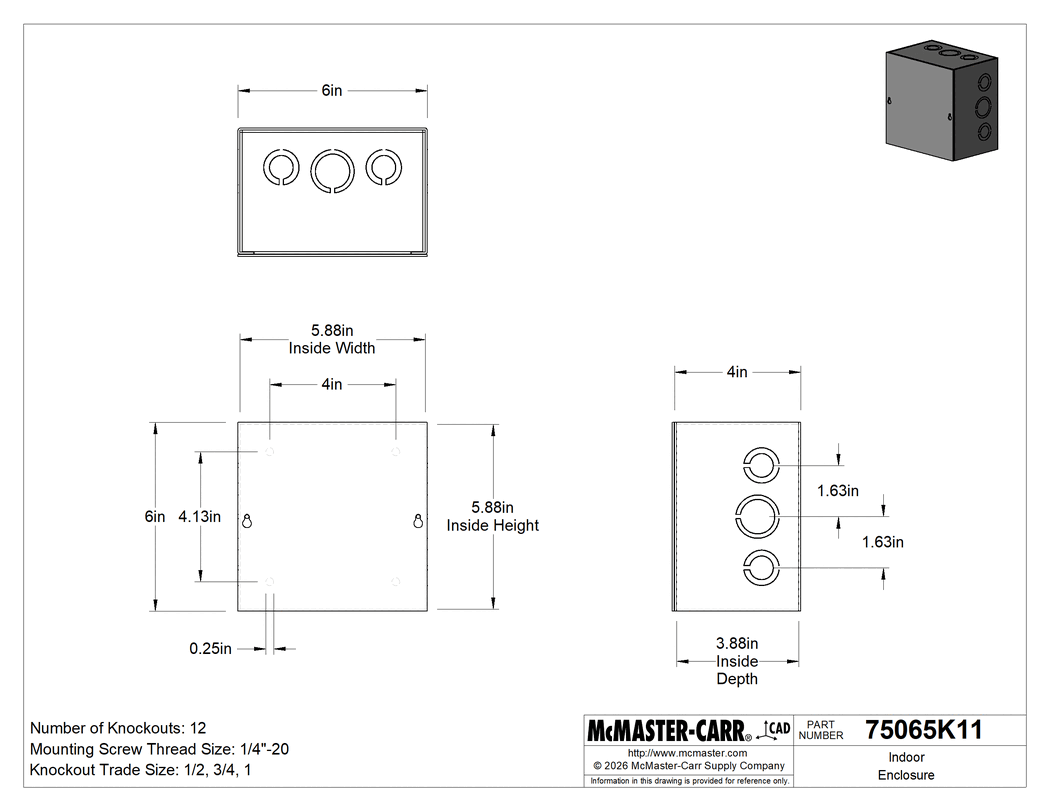

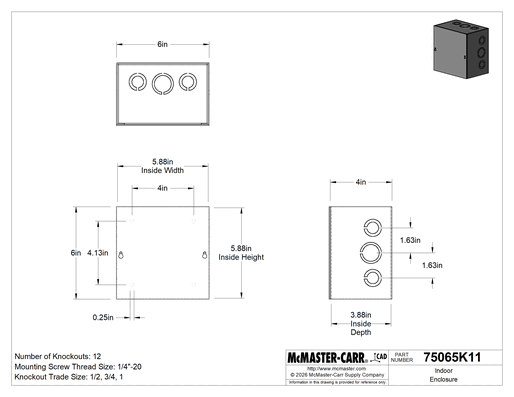

The information in this 3-D model is provided for reference only.
