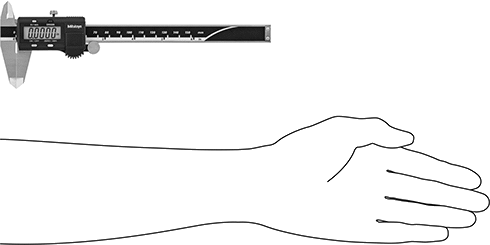

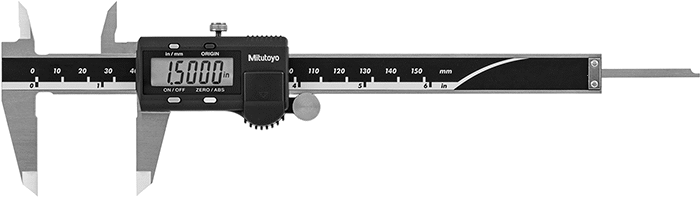

Mitutoyo Digital Caliper
9-1/4" Overall Length, Model Number 500-196-32, Stainless Steel Jaw
Manufacturer | Mitutoyo |
SPC Data Output | No |
Measuring Range | |
Inch | 0" to 6" |
Metric | 0 mm to 150 mm |
Accuracy | |
Inch | ±0.001" |
Metric | ±0.025 mm |
Measuring Increments | |
Inch | 0.0005" |
Metric | 0.01 mm |
Overall Length | 9 1/4" |
Body Material | Stainless Steel |
Jaw Material | Stainless Steel |
Manufacturer Model Number | 500-196-32 |
Batteries Included | Yes |
Battery Chemistry | Silver Oxide |
Battery Size | SR44 |
Caliper Adjustment | Thumb Wheel |
Container Type | Case |
Digital Display Type | LCD |
Display Type | Digital |
Features | Zero-Set Button |
Jaw Depth | 1 1/2" |
Measures | Depth, Inside, Outside, Step |
Measuring Functions | Zero-Position Memory (ABS) |
Number of Batteries Required | 1 |
Power Source | Battery |
System of Measurement | Inch/Metric |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 901730.4000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications | |
Related Product |
The most precise and versatile calipers. Their LCD display gives instant measurements down to 0.0005”—no need to count graduations. Swap between inch and metric or set the position to zero, all with the press of a button. You don’t need to reset the zero point since they retain their position when turned off, also known as absolute (ABS) positioning.
Our calipers come with a signed certificate of inspection, so you can trust your measurements are accurate every time. Their precision-ground jaws glide up and down the body for a silky-smooth feel.
Mitutoyo—The go-to for machinists and engineers. Every part of these calipers is made within Mitutoyo's automated system and tested in-house in Japan. Their jaws are laser cut to exact dimensions for the most reliable measurements.
