Low-Carbon Steel Rod
1/2" Diameter, Cold Worked
Length, ft. Length, ft. |
|---|
|
|
Material | Low-Carbon Steel |
Low-Carbon Steel Grade | 1018 |
Shape | Rod and Disc |
Shape Type | Rods |
Diameter | 1/2" |
Diameter Tolerance | -0.002" to 0" |
Tolerance Rating | Undersized |
Yield Strength | 54,000 psi |
Fabrication | Cold Worked |
Hardness | Rockwell B70 (Medium) |
Maximum Hardness After Heat Treatment | Rockwell C60 |
Heat Treatable | Yes |
Certificate | Material Certificate with Traceable Lot Number |
Appearance | Plain |
Temperature Range | Not Rated |
Specifications Met | ASTM A108 |
Straightness Tolerance | Not Rated |
Coefficient of Thermal Expansion | 7.1 × 10-6 |
Elongation | 15% |
Material Composition | |
Carbon | 0.13-0.20% |
Manganese | 0.30-0.90% |
Phosphorus | 0.04% Max. |
Silicon | 0.15-0.30% |
Sulfur | 0.50% Max. |
Iron | Remainder |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
RoHS | Not Compliant |
REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | Canada, France, Germany, Netherlands, Spain, Sweden, or United States |
USMCA Qualifying | No |
Schedule B | 721550.0015 |
ECCN | EAR99 |
Also known as mild steel, low-carbon steel is easy to machine, form, and weld. It's widely fabricated into low-strength fasteners, pins, and axles. You can surface harden this material for added wear resistance. All have been manufactured to meet ASTM standards for quality and performance.
Cold-worked rods and discs have a finished look and quality. The cold-working process gives the steel consistent strength, hardness, and dimensions throughout.

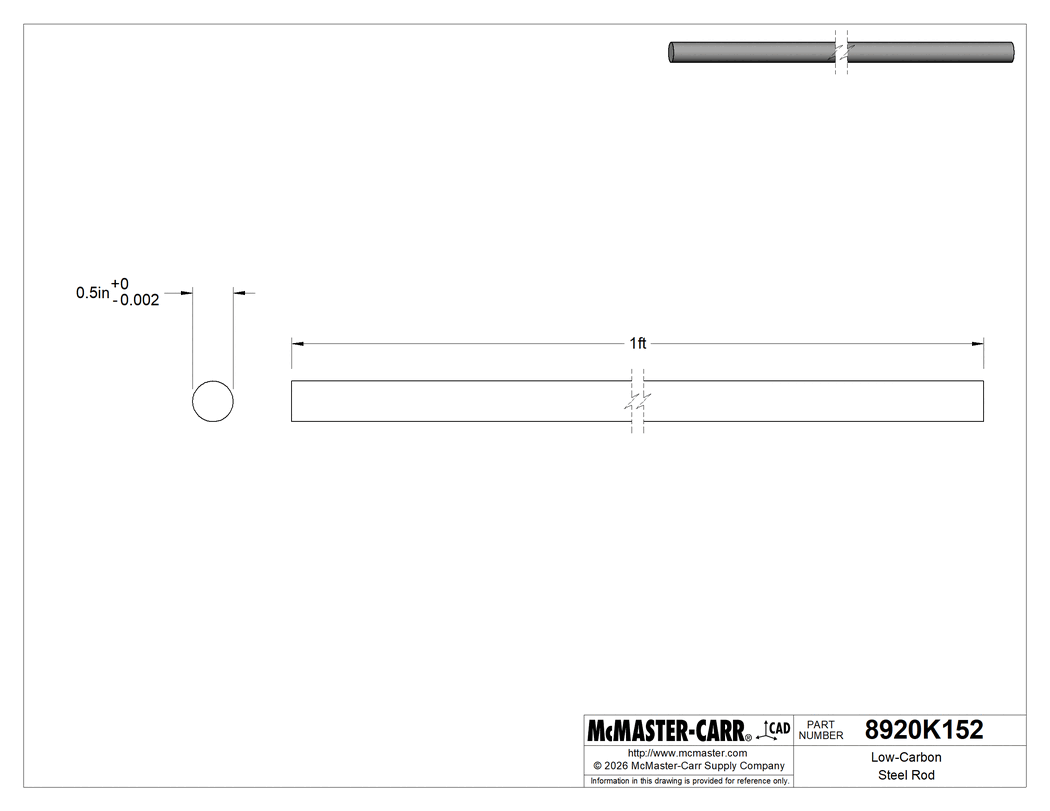

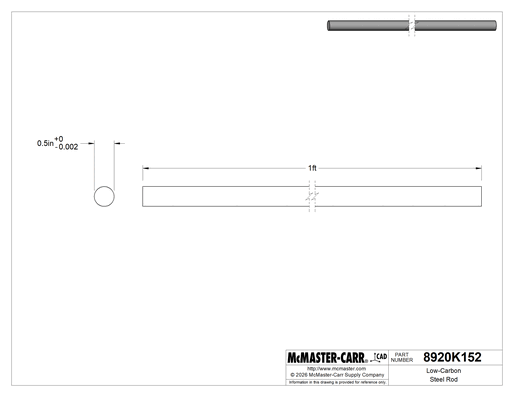

The information in this 3-D model is provided for reference only.
