    Breakaway Tamper-Resistant Nuts

    Aluminum, 3/8"-16 Thread Size

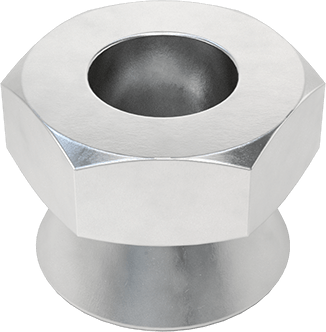

    Image of Product. Bottom orientation. Breakaway Tamper-Resistant Nuts, Aluminum, 3/8"-16 Thread Size.

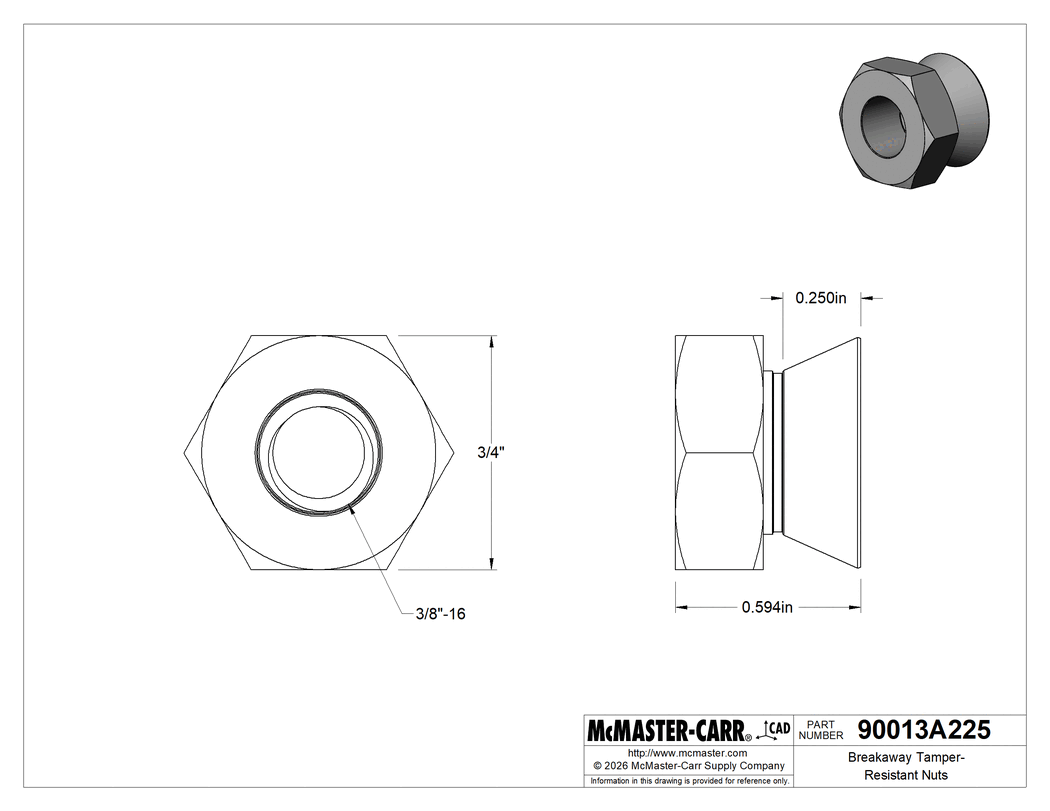

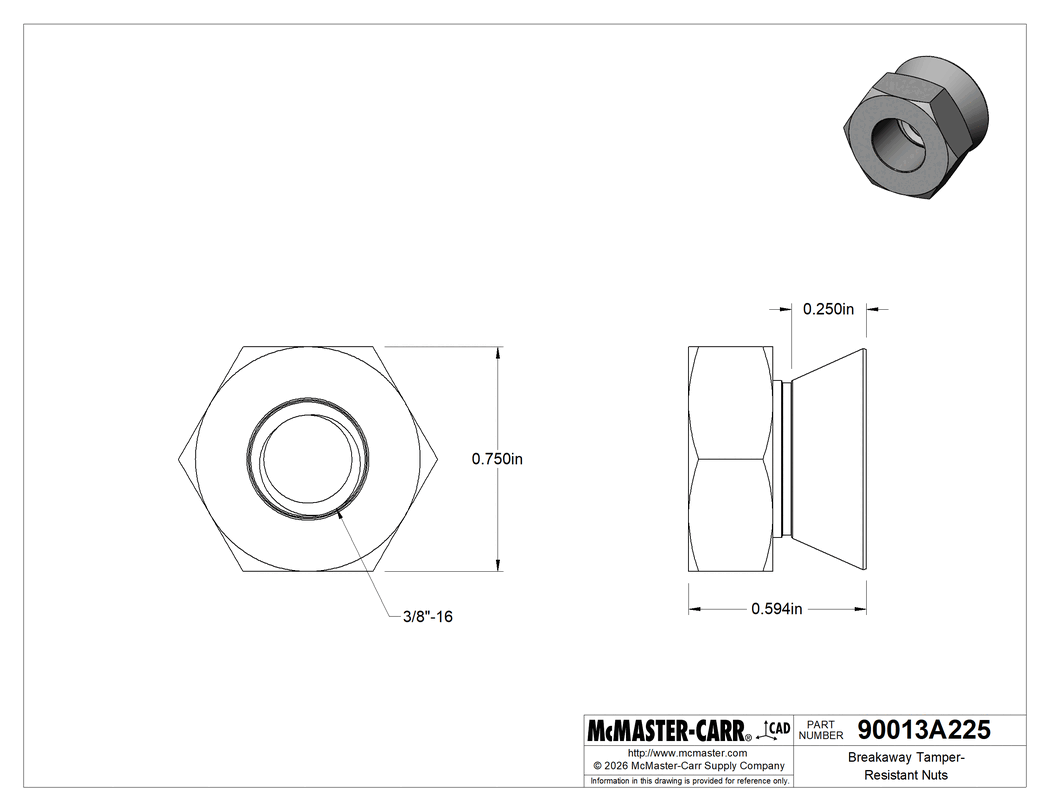

    Technical Drawing of Breakaway Tamper-Resistant Nuts, Aluminum, 3/8"-16 Thread Size.

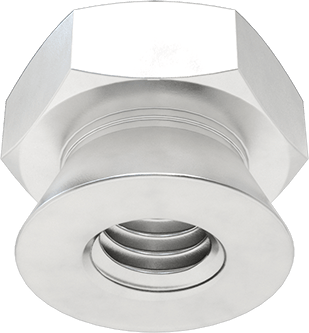

    Image of Product. Bottom orientation. Breakaway Tamper-Resistant Nuts, Aluminum, 3/8"-16 Thread Size.

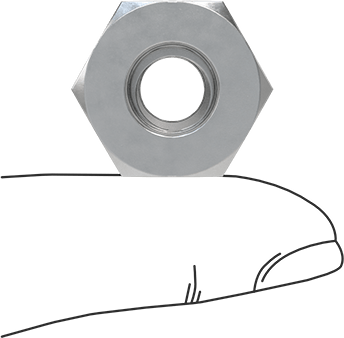

    Image of Product. Side1 orientation. Contains SizingReference. Breakaway Tamper-Resistant Nuts, Aluminum, 3/8"-16 Thread Size.
    click to play the video
    2-D PDF
    000000 per pack of 10
    90013A225
    In stock
    90013A225
    000000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Performance

    Breakaway

    Drive Style

    External Hex

    Material

    Aluminum

    Thread

    Size

    3/8"-16

    Type

    UNC

    Spacing

    Coarse

    Fit

    Unified Standard Class 2B

    Direction

    Right Hand

    Width

    3/4"

    Height

    19/32"

    Height After Installation

    1/4"

    Breaking Torque

    195 in·lbf

    Nut Type

    Tamper Resistant, Hex

    System of Measurement

    Inch

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    761610.6000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    The most tamper-resistant nuts we offer, these have a hex head that breaks away upon tightening, leaving a non-removable cone. They can be installed using a standard wrench. Use them to reduce the risk of unwanted removal for objects in public spaces such as signs, lighting fixtures, and displays.

    Aluminum—Aluminum nuts are lightweight, corrosion resistant in wet environments, and nonmagnetic.

    The information in this 3-D model is provided for reference only.
