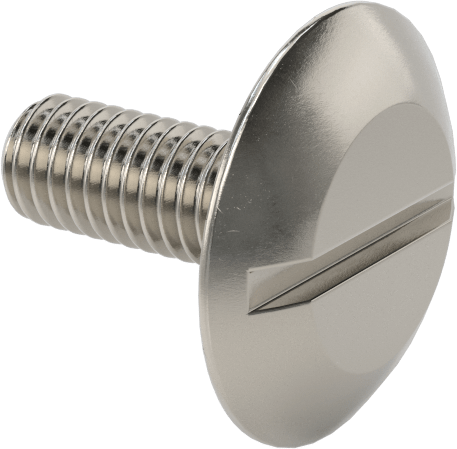

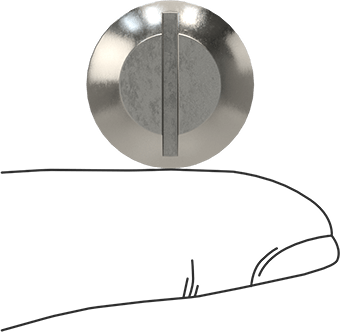

18-8 Stainless Steel Oversized Truss Head Slotted Screw
M6 x 1 mm Thread Size, 16 mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Size Designation | Oversized |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Low, Wide |
Height | 2.8 mm |
Diameter | 19.2 mm |
Drive Style | Slotted |
Material | 18-8 Stainless Steel |
Length | 16 mm |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Hardness | Rockwell B85 |
Passivation | Passivated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Up to twice the size of standard truss screws, these spread pressure even further to prevent crushing thin material, such as sheet metal. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them. Also known as shutter screws.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

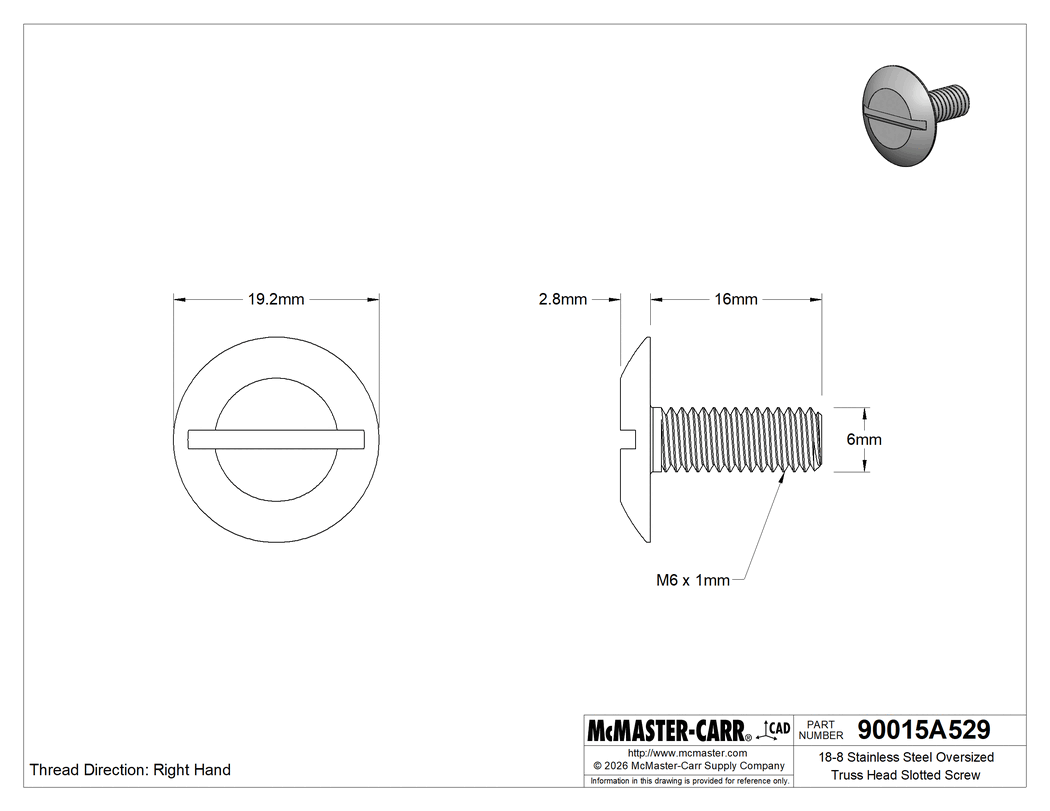

The information in this 3-D model is provided for reference only.
