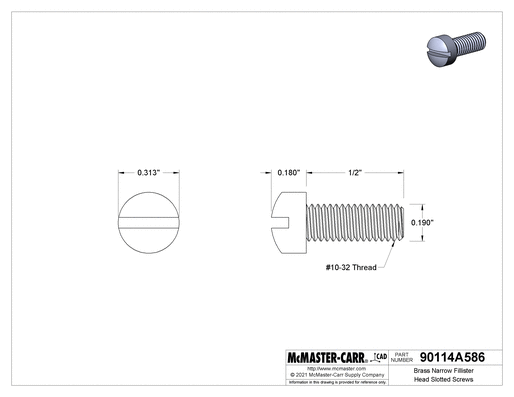

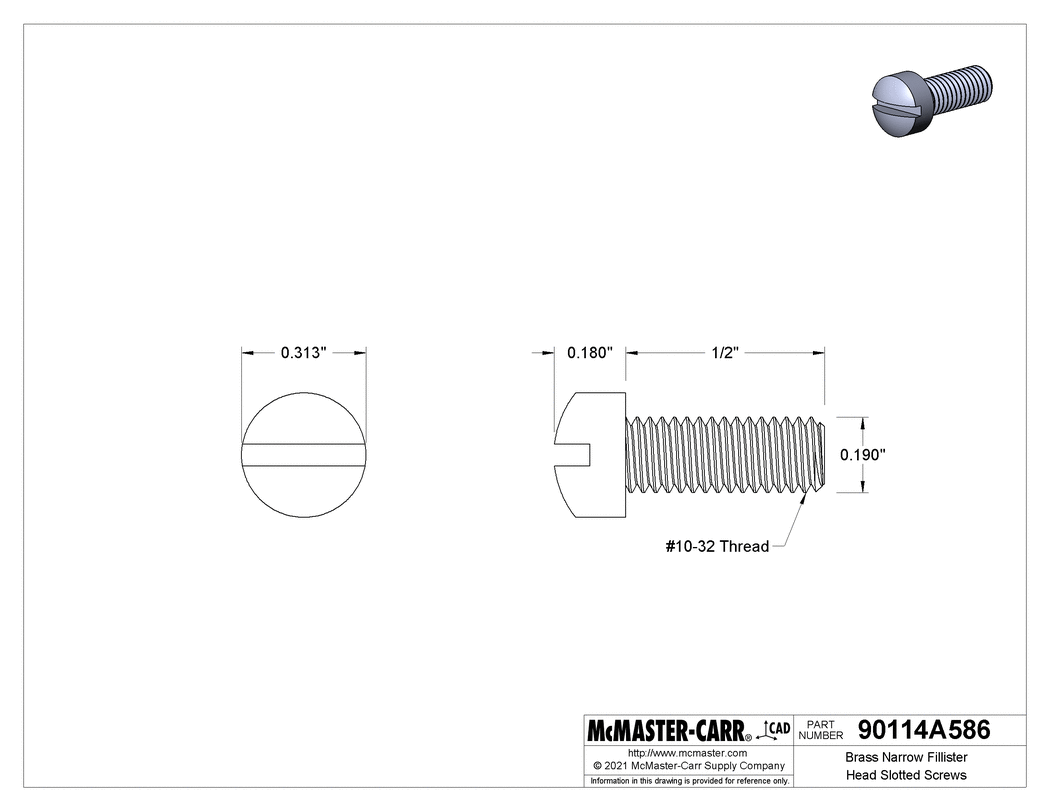

Brass Narrow Fillister Head Slotted Screws
High-Profile, 10-32 Thread, 1/2" Long
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Fillister |
Profile | High, Narrow |
Height | 0.18" |
Diameter | 0.313" |
Drive Style | Slotted |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B40 |
Material | Brass |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | China, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741533.8550 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

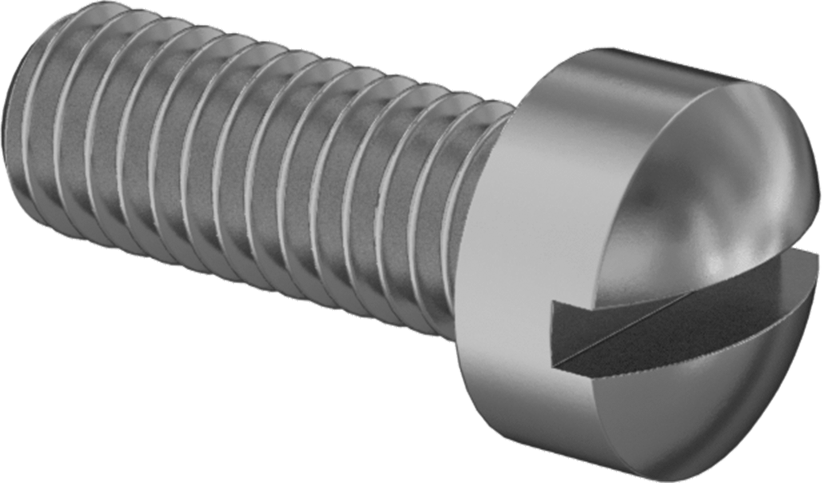

These fillister head slotted screws have a shiny look and won't rust in damp environments. Made of brass, they're also conductive and nonmagnetic, making them useful for electrical applications. With a deeper drive than others, fillister heads reduce the likelihood that basic slotted drivers slip as you hand-tighten them. Since they also have a narrow diameter, they fit into tight spaces, such as holes tucked away inside machinery.
Length is measured from under the head.

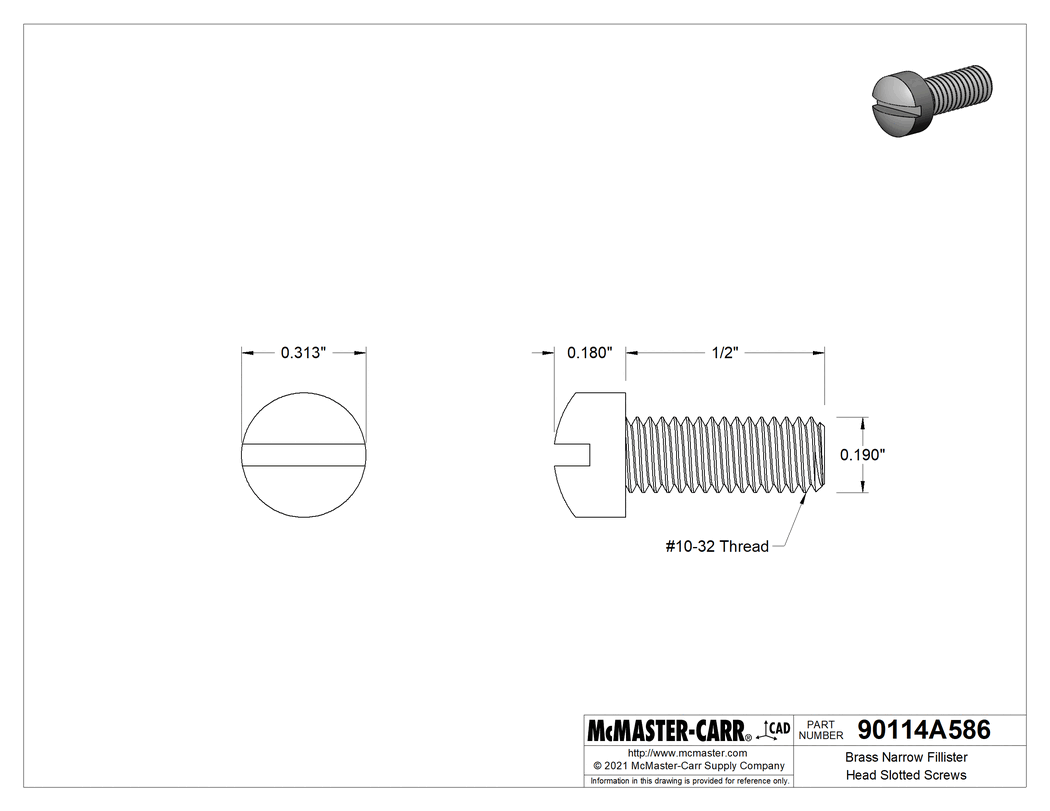

The information in this 3-D model is provided for reference only.
