    316 Stainless Steel Pan Head Phillips Screws

    M3 x 0.50 mm Thread, 6mm Long

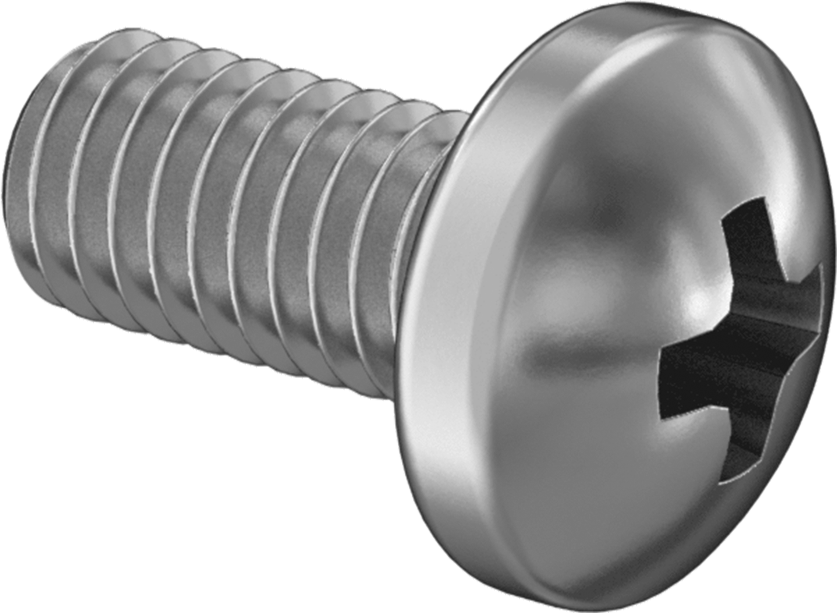

    Image of Product. Front orientation. 316 Stainless Steel Pan Head Phillips Screws, M3 x 0.50 mm Thread, 6mm Long.

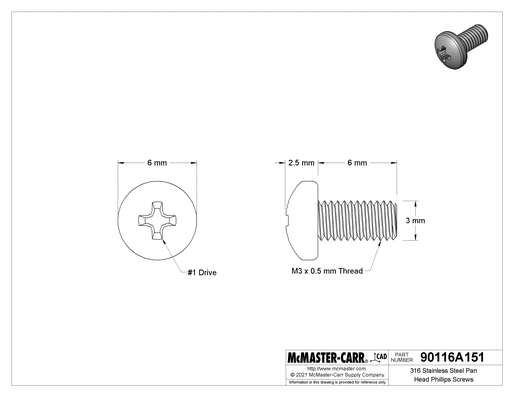

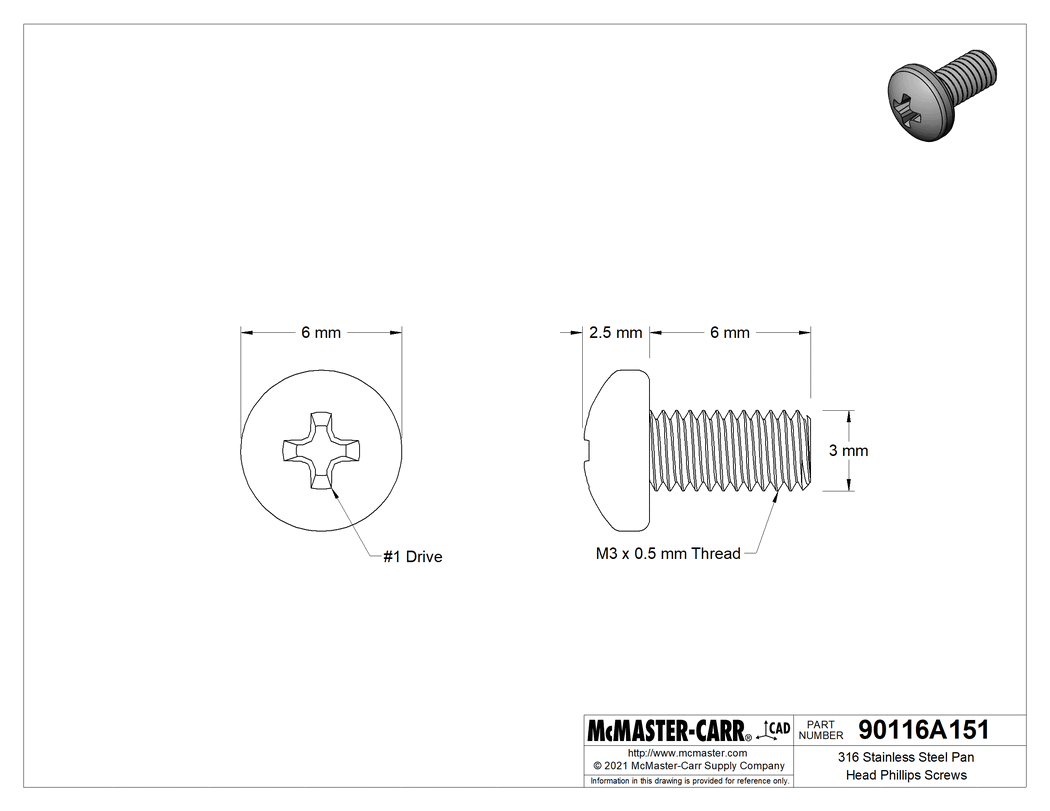

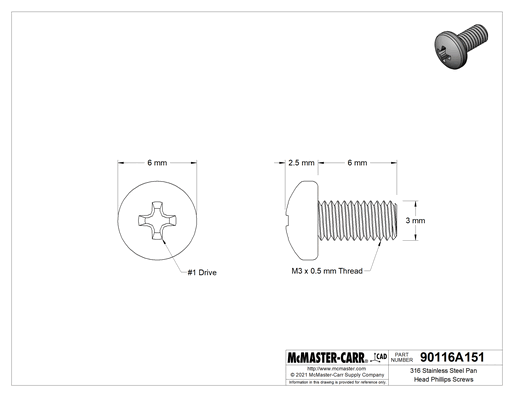

    Technical Drawing of 316 Stainless Steel Pan Head Phillips Screws, M3 x 0.50 mm Thread, 6mm Long.

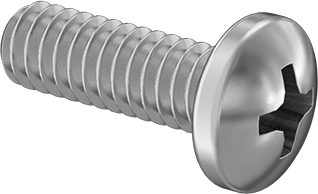

    Image of Product. Back orientation. 316 Stainless Steel Pan Head Phillips Screws, M3 x 0.50 mm Thread, 6mm Long.
    2-D PDF
    000000 per pack of 100
    90116A151
    Delivers tomorrow 7-9 am
    90116A151
    000000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M3

    Pitch

    0.5 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    2.5 mm

    Diameter

    6 mm

    Drive

    Style

    Phillips

    Size

    No. 1

    Material

    316 Stainless Steel

    Length

    6 mm

    Threading

    Fully Threaded

    Tensile Strength

    70,000 psi

    Specifications Met

    DIN 7985

    Hardness

    Not Rated

    Passivation

    Passivated

    Performance

    Chemical Resistant, Highly Corrosion Resistant

    System of Measurement

    Metric

    Country of Origin

    Taiwan

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These stainless steel pan head Phillips screws won't rust or corrode when exposed to moisture and chemicals. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from under the head.

    Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

    The information in this 3-D model is provided for reference only.
