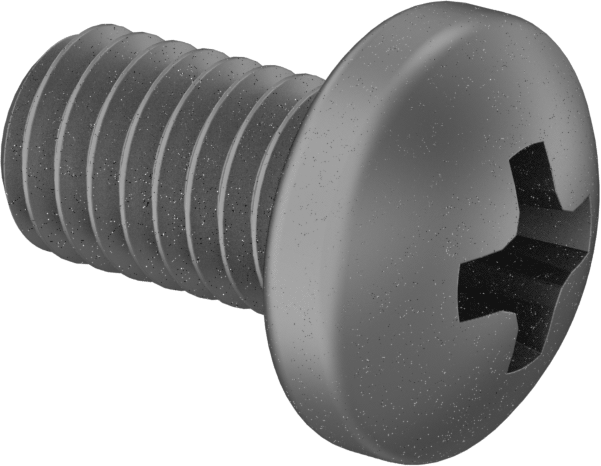

Titanium Pan Head Phillips Screw
M3 x 0.50 mm Thread, 5mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2.33 mm |
Diameter | 5.6 mm |
Drive | |
Style | Phillips |
Size | No. 1 |
Length | 5 mm |
Threading | Fully Threaded |
Tensile Strength | 40,000 psi |
Specifications Met | ISO 7045 |
Hardness | Rockwell B80 |
Material | Grade 2 Titanium |
Performance | Chemical Resistant, Lightweight, Nonmagnetic, Ultra Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | China |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 810890.8000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The best of both worlds, these Grade 2 titanium screws are lightweight like aluminum and more corrosion resistant than stainless steel. They stand up to salt water, strong acids, and harsh chemicals, so they're often used in chemical-processing and water-treatment facilities. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.
Length is measured from under the head.
Adhere

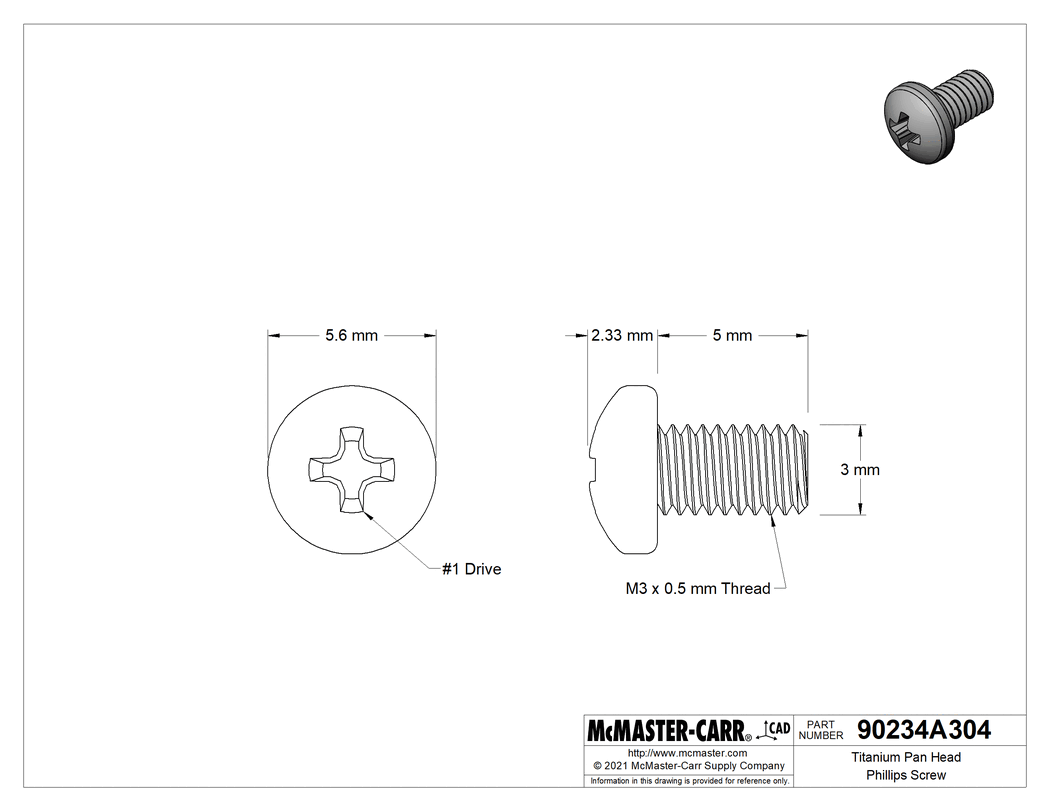

The information in this 3-D model is provided for reference only.
