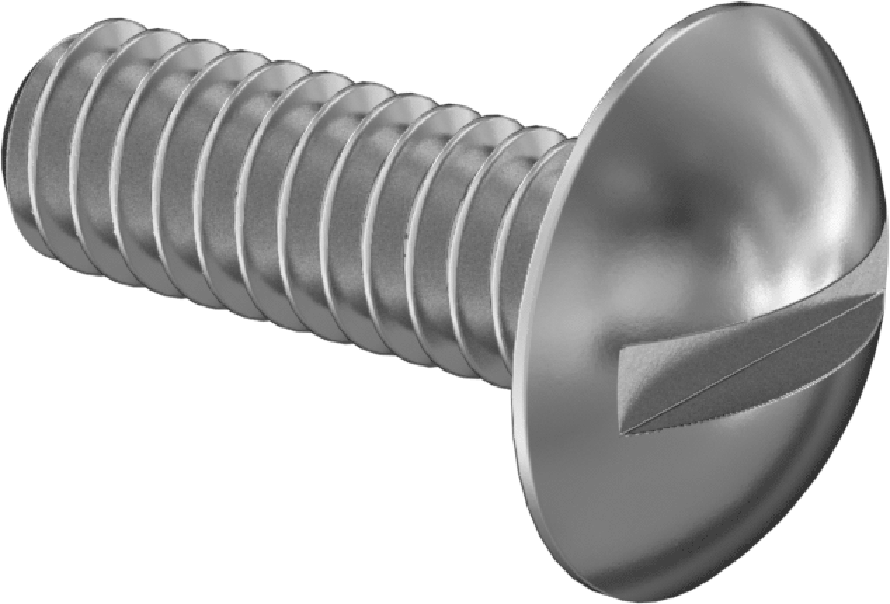

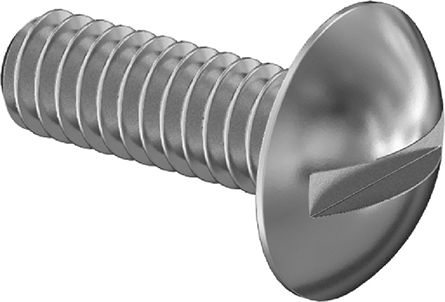

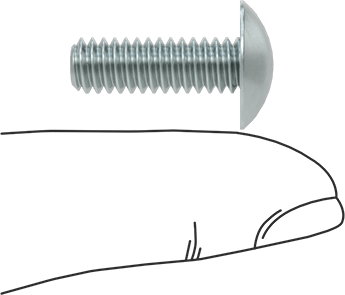

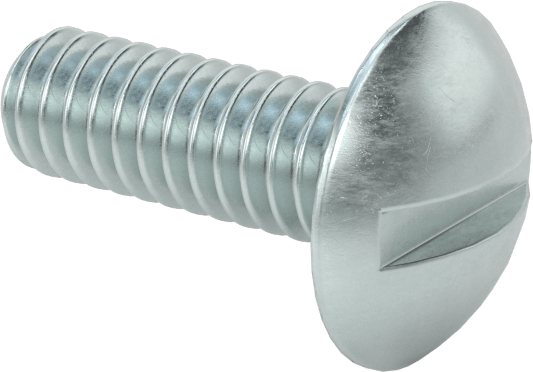

Steel Extra-Wide Truss Head Slotted Screws
Steel, 1/4"-20 Thread Size, 3/4" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Truss |
Profile | Wide |
Height | 0.15" |
Diameter | 0.573" |
Drive Style | Slotted |
Material | Zinc-Plated Steel |
Length | 3/4" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B69 |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Wider than other rounded heads, the truss head spreads pressure over a large area without adding a washer. This reduces the risk of crushing thin material, such as sheet metal. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

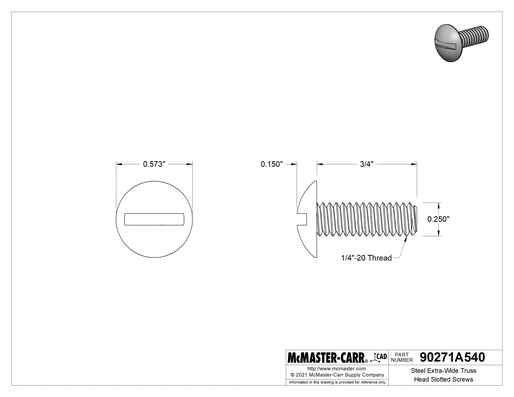

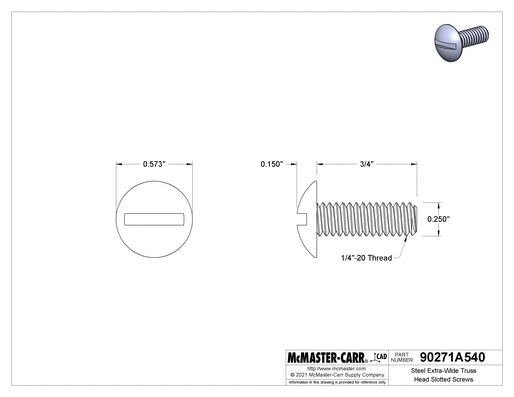

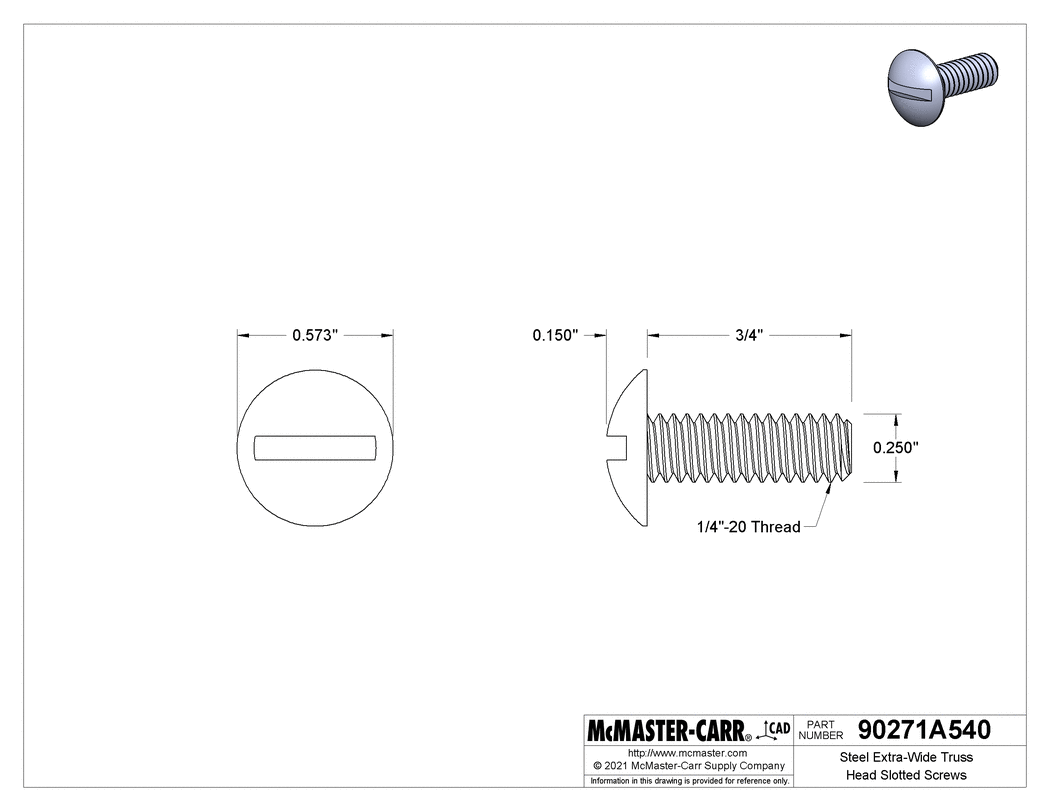

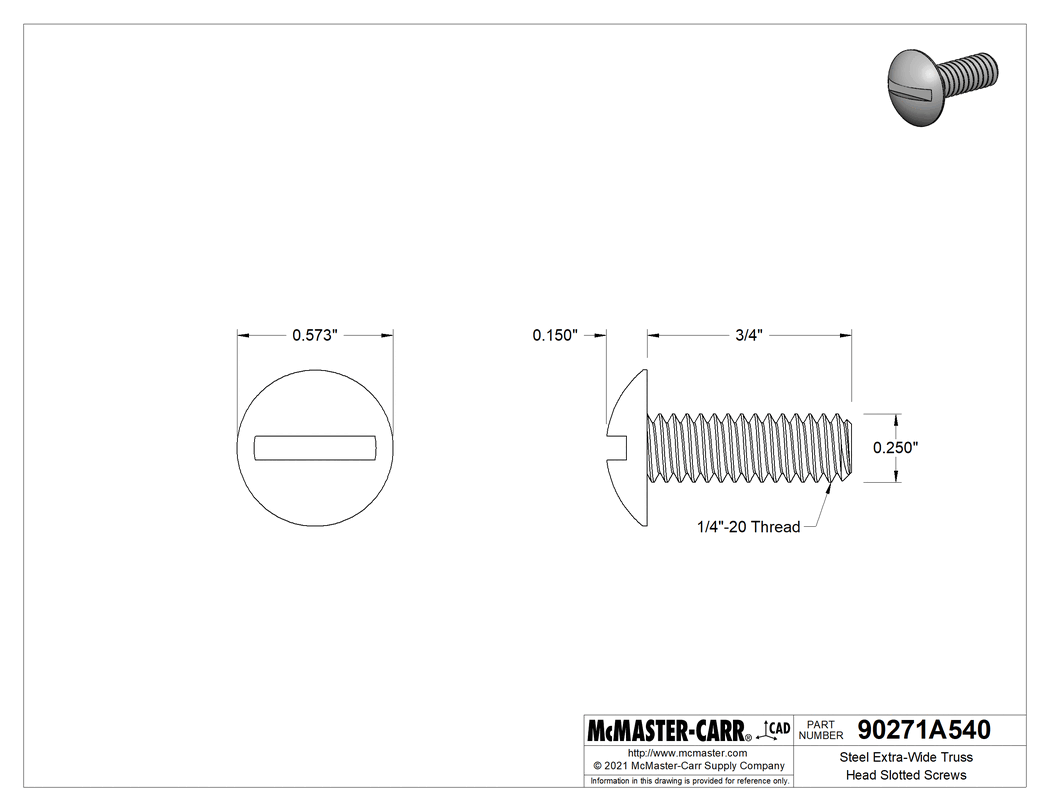

The information in this 3-D model is provided for reference only.
