    Zinc-Plated Steel Pan Head Phillips Screw

    10-32 Thread, 1/2" Long

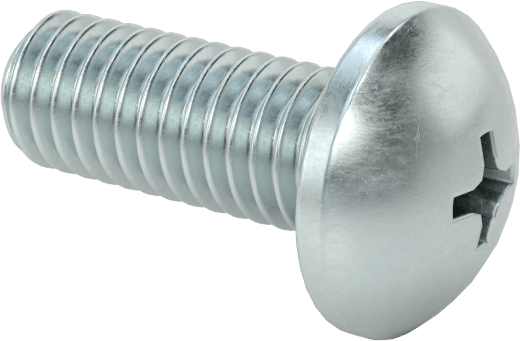

    Image of Product. Front orientation. Zinc-Plated Steel Pan Head Phillips Screw, 10-32 Thread, 1/2" Long.

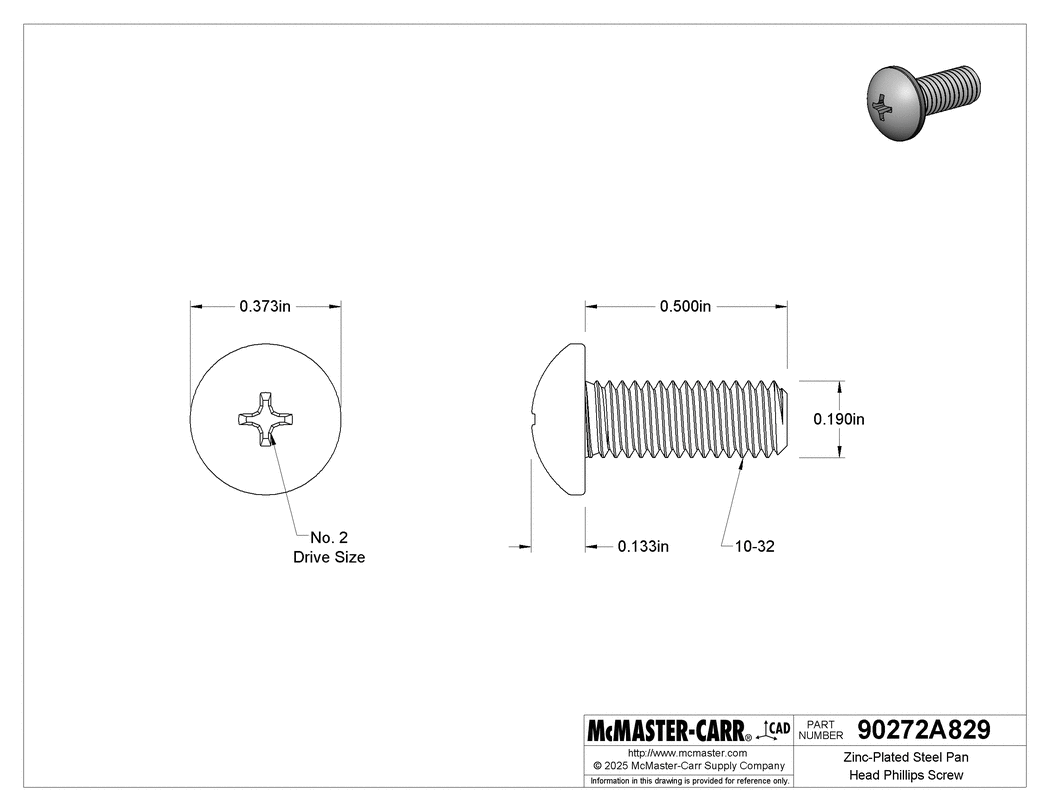

    Technical Drawing of Zinc-Plated Steel Pan Head Phillips Screw, 10-32 Thread, 1/2" Long.
    Image of Product. Back orientation. Zinc-Plated Steel Pan Head Phillips Screw, 10-32 Thread, 1/2" Long.

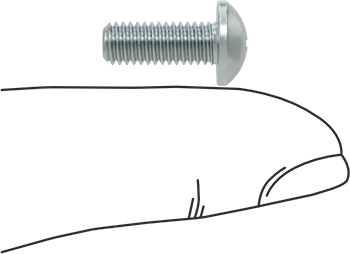

    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel Pan Head Phillips Screw, 10-32 Thread, 1/2" Long.
    2-D PDF
    00000 per pack of 100
    90272A829
    Delivers tomorrow 7-9 am
    90272A829
    00000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    10-32

    Direction

    Right Hand

    Spacing

    Fine

    Type

    UNF

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    0.133"

    Diameter

    0.373"

    Drive

    Style

    Phillips

    Size

    No. 2

    Material

    Zinc-Plated Steel

    Length

    1/2"

    Threading

    Fully Threaded

    Tensile Strength

    60,000 psi

    Specifications Met

    ASME B18.6.3

    Hardness

    Rockwell B70

    Screw Size Decimal Equivalent

    0.190"

    System of Measurement

    Inch

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Our most popular steel pan head screws. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from under the head.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

    The information in this 3-D model is provided for reference only.
