    Steel Decorative Round Head Slotted Screws

    6-32 Thread Size, 1/2" Long

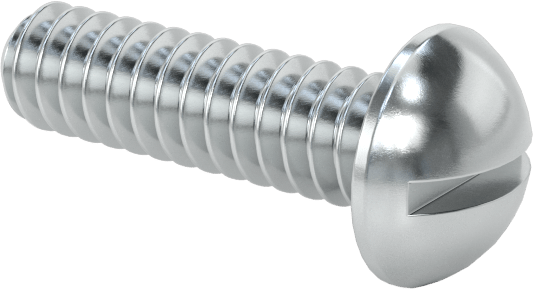

    Image of Product. Front orientation. Steel Decorative Round Head Slotted Screws, 6-32 Thread Size, 1/2" Long.

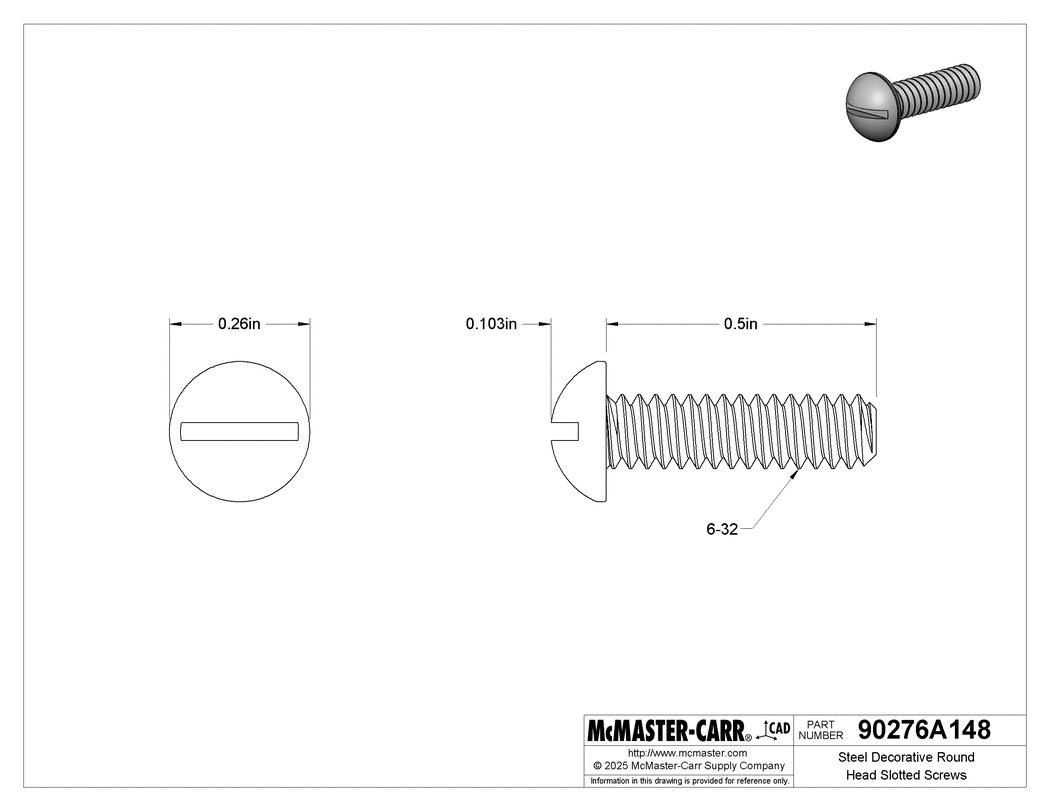

    Technical Drawing of Steel Decorative Round Head Slotted Screws, 6-32 Thread Size, 1/2" Long.
    Image of Product. Back orientation. Steel Decorative Round Head Slotted Screws, 6-32 Thread Size, 1/2" Long.

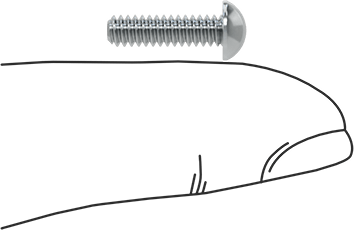

    Image of Product. Side1 orientation. Contains SizingReference. Steel Decorative Round Head Slotted Screws, 6-32 Thread Size, 1/2" Long.
    2-D PDF
    00000 per pack of 100
    90276A148
    Delivers tomorrow 7-9 am
    90276A148
    00000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    6-32

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 2A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Round

    Profile

    Standard

    Height

    0.103"

    Diameter

    0.26"

    Drive Style

    Slotted

    Material

    Zinc-Plated Steel

    Length

    1/2"

    Threading

    Fully Threaded

    Tensile Strength

    60,000 psi

    Specifications Met

    ASME B18.6.3

    Hardness

    Rockwell B69

    Screw Size Decimal Equivalent

    0.138"

    System of Measurement

    Inch

    Country of Origin

    Taiwan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These round head screws have the simplest drive style. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them. The round head has a domed profile that gives a smooth, decorative look to brackets and architectural features.

    Length is measured from under the head.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

    The information in this 3-D model is provided for reference only.
