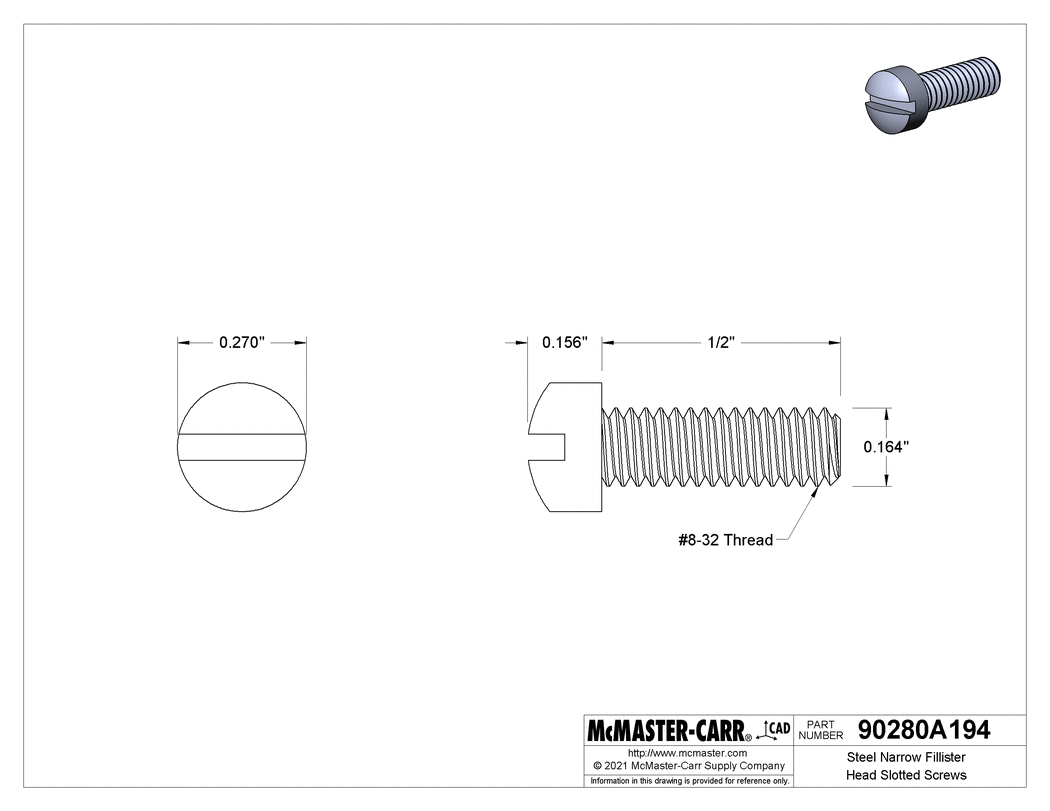

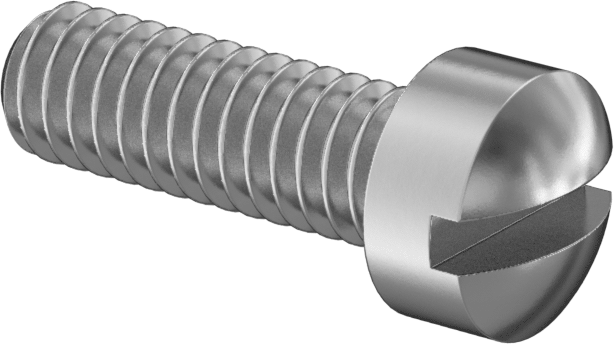

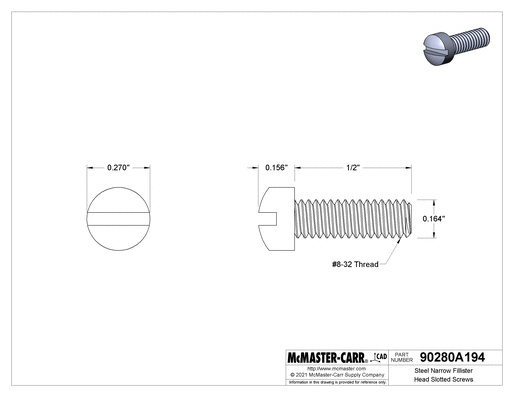

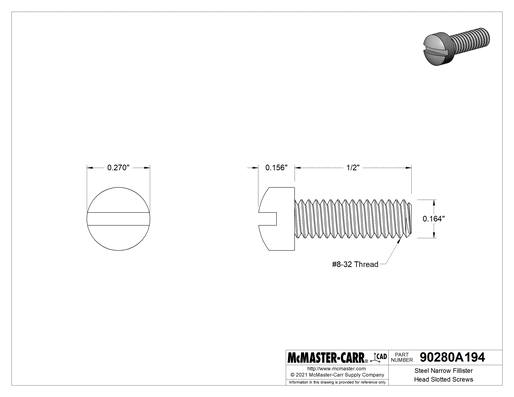

Steel Narrow Fillister Head Slotted Screws
High-Profile, 8-32 Thread, 1/2" Long
2-D PDF
00000 per pack of 100
90280A194
In stock
90280A194
00000 per pack of 100
Pack of 100
Select a compatible file type: Parasolid
Solidworks 2022 and Parasolid files now available
Solidworks 2022, PDF, and DWG files now available
Parasolid files now available
Available for Solidworks 2017 or newer.
Thread | |
Size | 8-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Fillister |
Profile | High, Narrow |
Height | 0.156" |
Diameter | 0.27" |
Drive Style | Slotted |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B69 |
Material | Zinc-Plated Steel |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Reduce the chance of slotted drivers slipping with a tall head that has a deep drive. These screws also have a narrow diameter to fit into tight spaces, such as holes deep inside machinery.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
