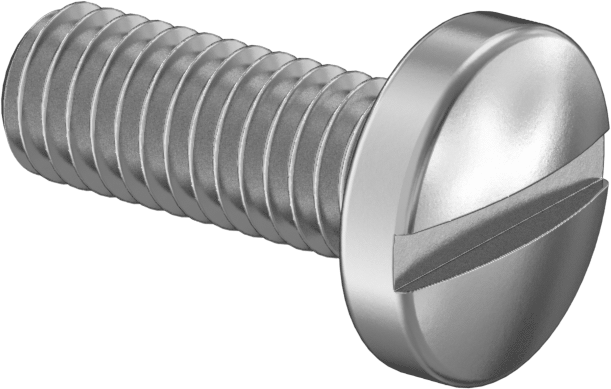

Steel Pan Head Slotted Screws
10-32 Thread Size, 1/2" Long
Thread | |
Size | 10-32 |
Direction | Right Hand |
Spacing | Fine |
Type | UNF |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.11" |
Diameter | 0.373" |
Drive Style | Slotted |
Material | Zinc-Plated Steel |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B60 |
Screw Size Decimal Equivalent | 0.190" |
System of Measurement | Inch |
Country of Origin | Belgium, China, Croatia, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, United Kingdom, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These pan head screws have the simplest drive style. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

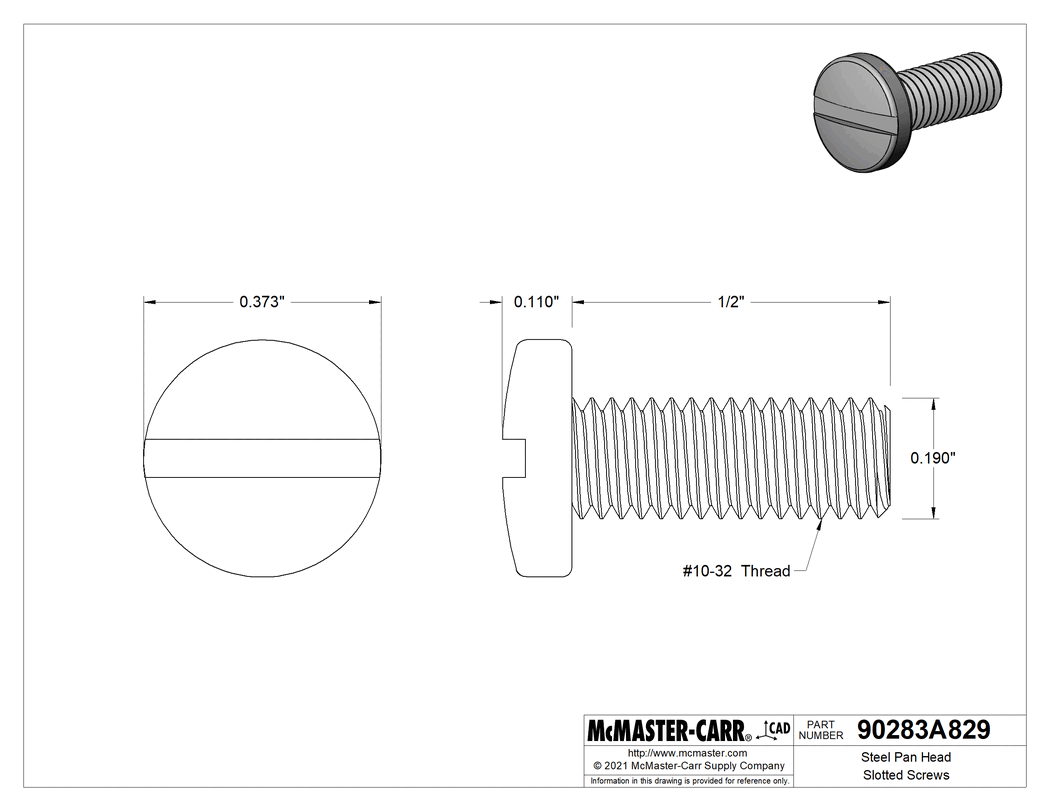

The information in this 3-D model is provided for reference only.
