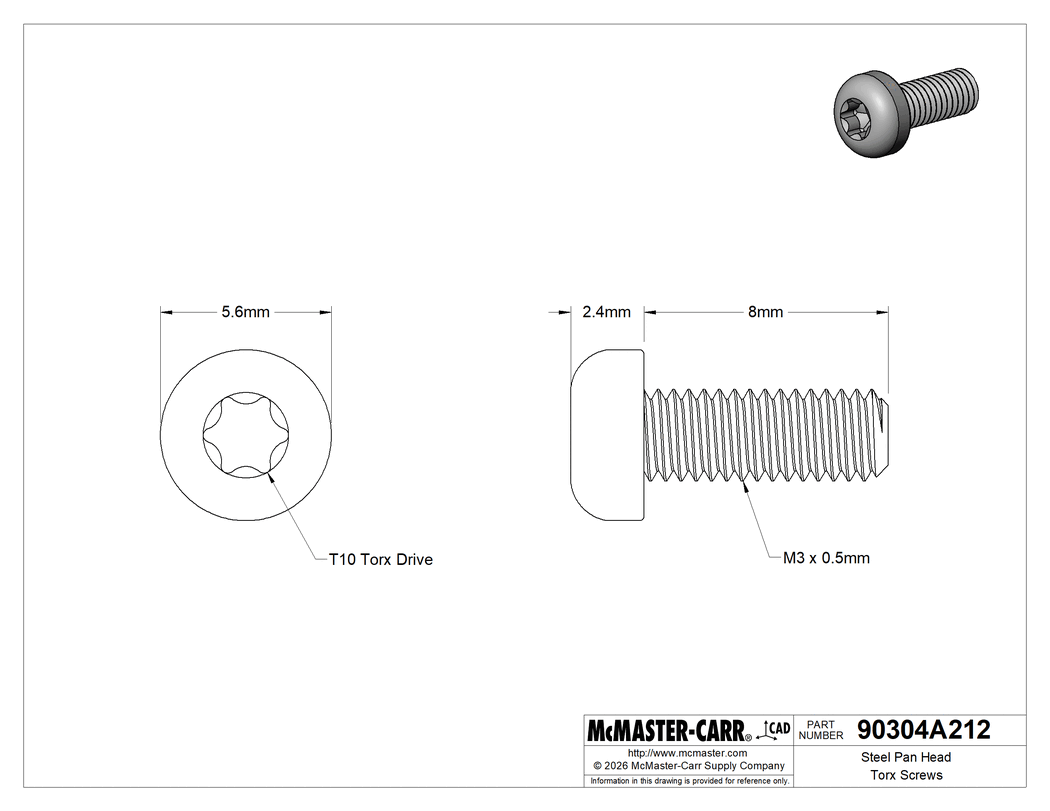

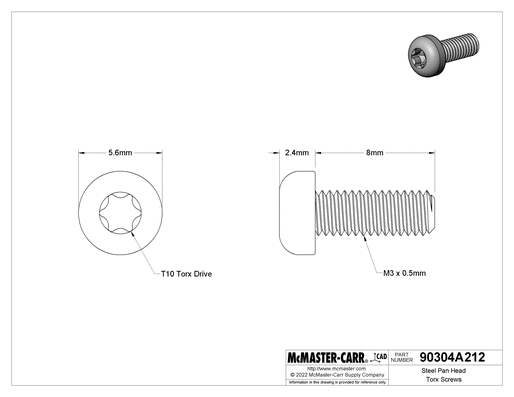

Steel Pan Head Torx Screws
Zinc Plated, M3 x 0.5 mm Thread, 8 mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2.4 mm |
Diameter | 5.6 mm |
Drive | |
Style | Torx |
Size | T10 |
Length | 8 mm |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | DIN 7985, ISO 14583 |
Hardness | Rockwell B71 |
Material | Zinc-Plated Steel |
System of Measurement | Metric |
Country of Origin | Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, United States, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Get a grip with less slip. With a deep six-lobe opening, these screws prevent drivers from slipping and stripping drives. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

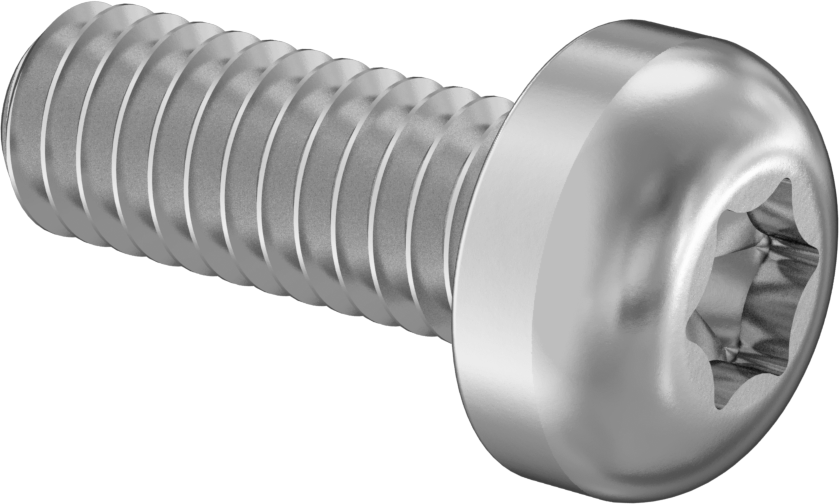

The information in this 3-D model is provided for reference only.
