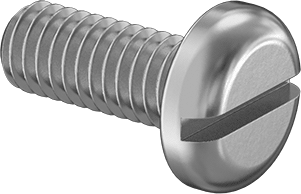

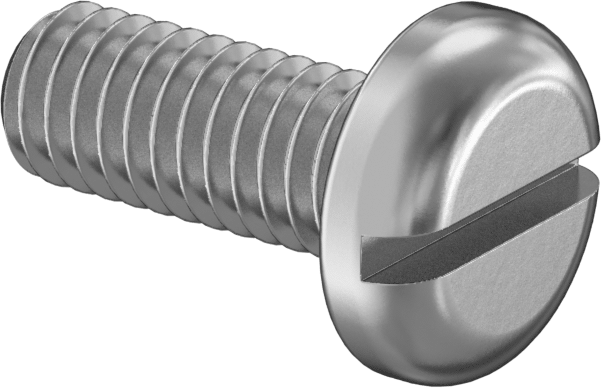

Steel Pan Head Slotted Screws
M4 x 0.7 mm Thread, 10 mm Long
Thread | |
Size | M4 |
Pitch | 0.7 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6h |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2.4 mm |
Diameter | 8 mm |
Drive Style | Slotted |
Material | Zinc-Plated Steel |
Length | 10 mm |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
Specifications Met | DIN 85, ISO 1580 |
Hardness | Rockwell B71 |
System of Measurement | Metric |
Country of Origin | Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These pan head screws have the simplest drive style. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.
Length is measured from under the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

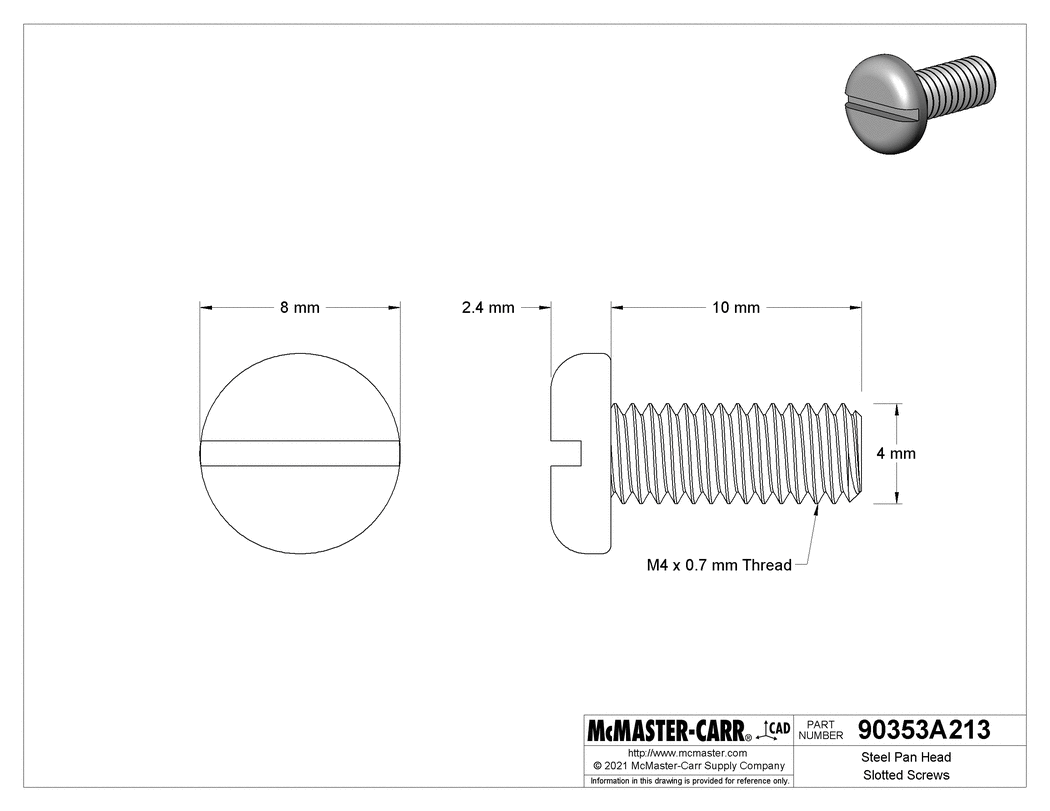

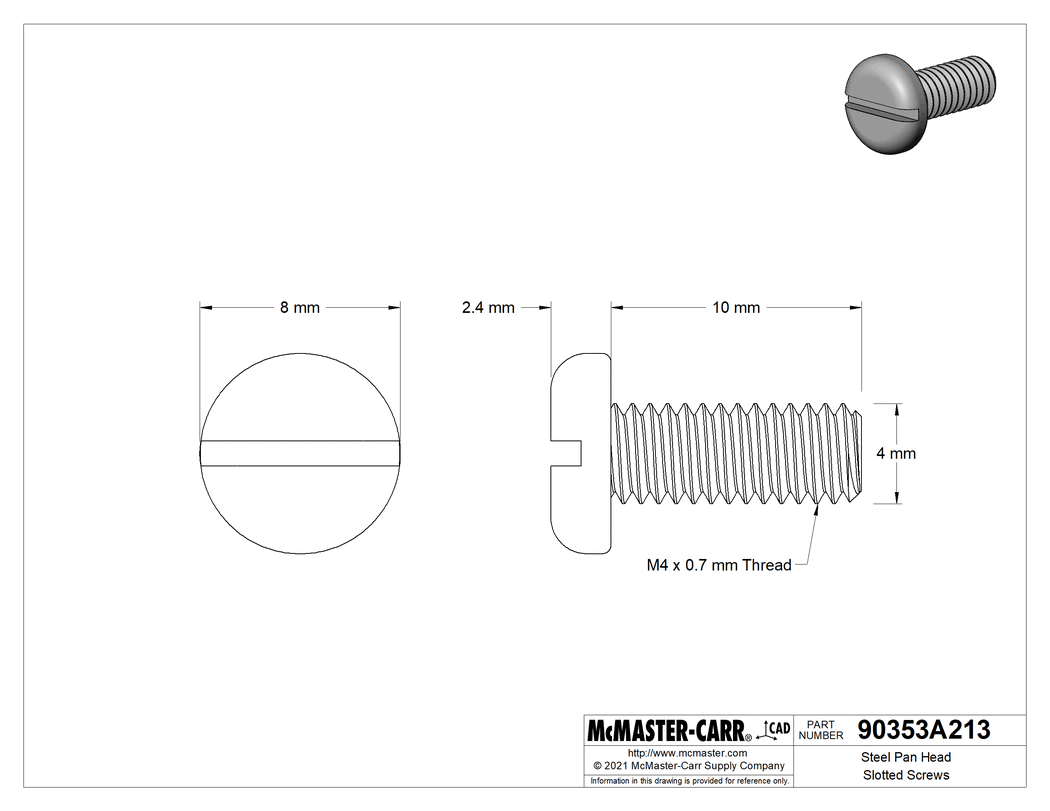

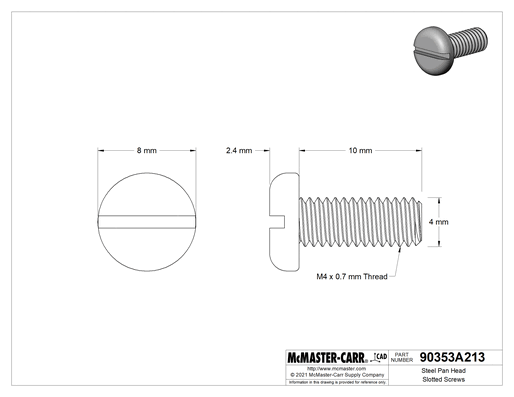

The information in this 3-D model is provided for reference only.
