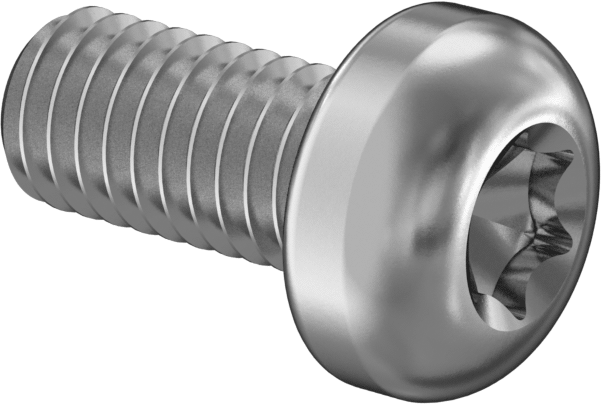

18-8 Stainless Steel Pan Head Torx Screws
M3 x 0.50 mm Thread Size, 6 mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2.4 mm |
Diameter | 5.6 mm |
Drive | |
Style | Torx |
Size | T10 |
Material | 18-8 Stainless Steel |
Length | 6 mm |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Specifications Met | ISO 14583 |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Hardness | Not Rated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Canada, China, Germany, India, Italy, Japan, Mexico, Taiwan, Thailand, United States, Vietnam |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The most corrosion-resistant pan head Torx screws we offer. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. With a deep six-lobe opening, the Torx drive prevents your driver from slipping and stripping the drive. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

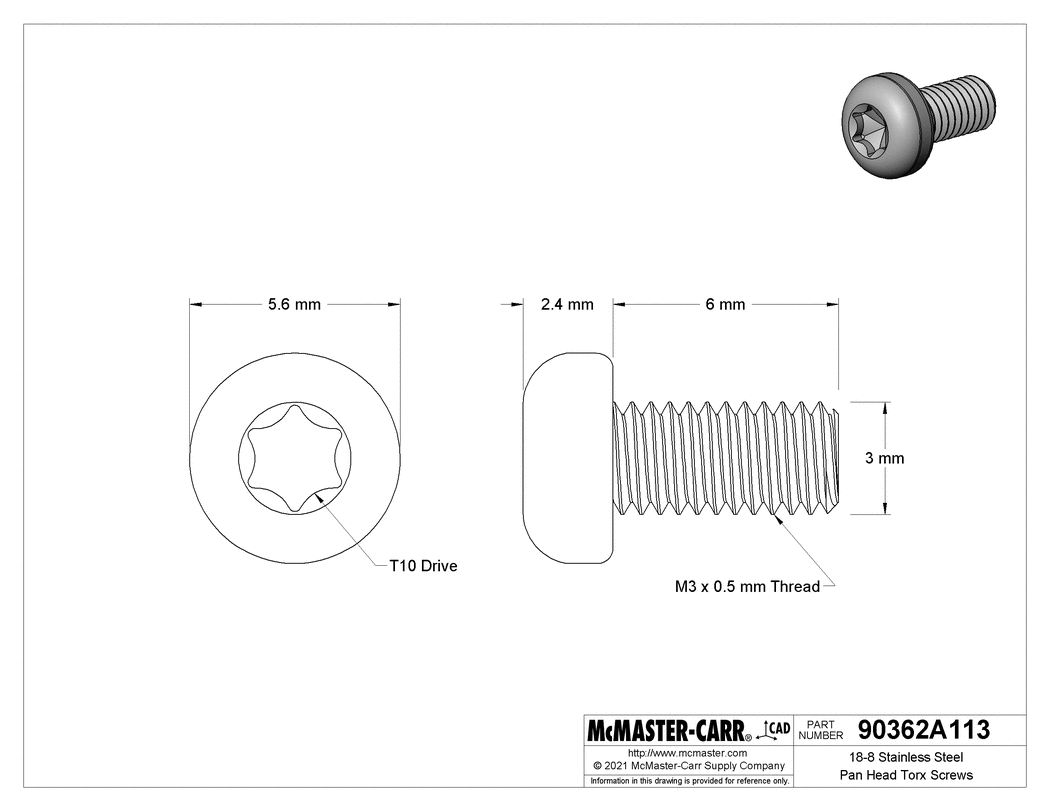

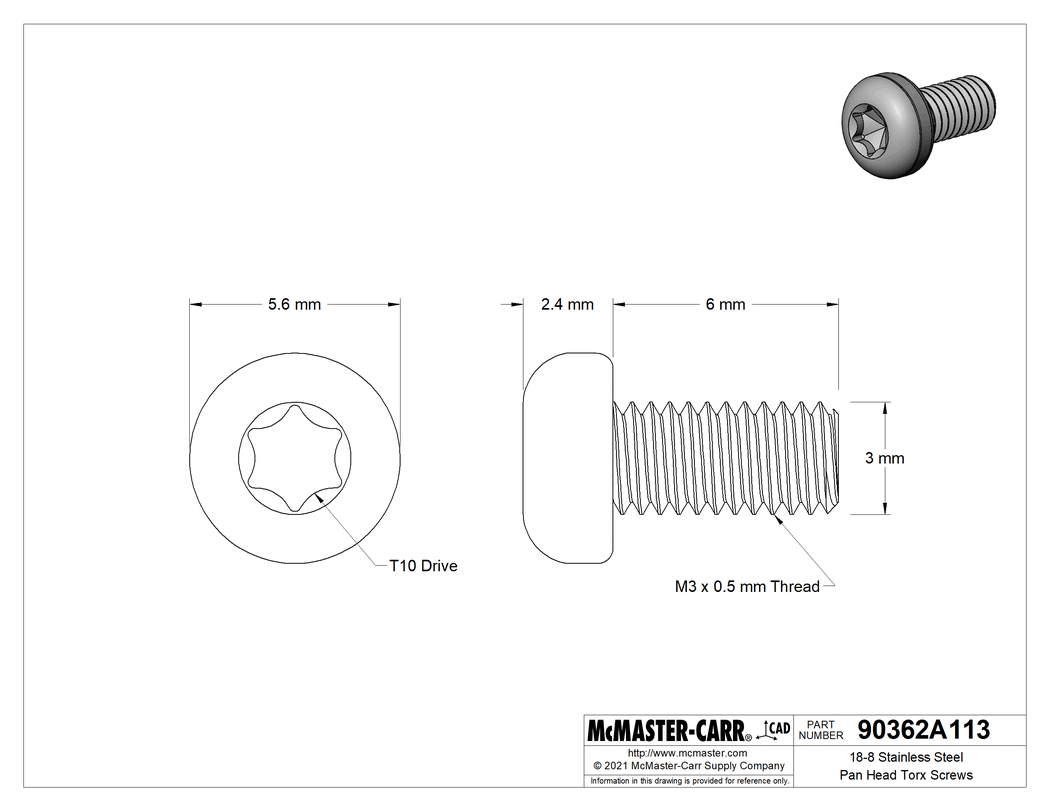

The information in this 3-D model is provided for reference only.
