    Zinc-Plated Steel Pan Head Screws

    with Split Lock Washer, M3 x 0.50 mm Thread Size, 6 mm Long

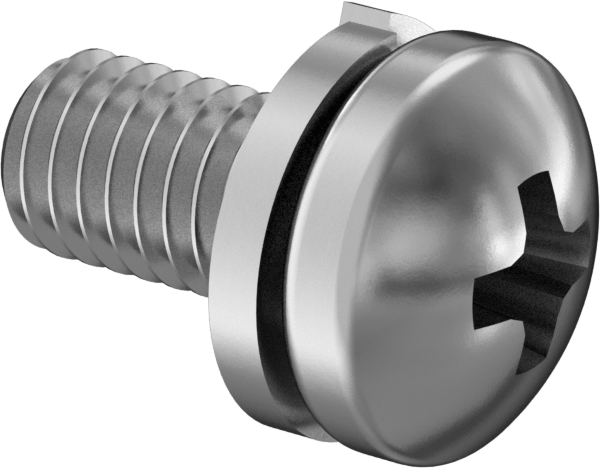

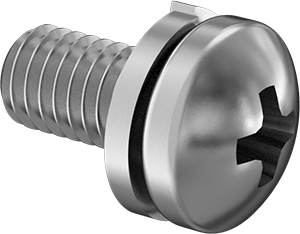

    Image of Product. Front orientation. Zinc-Plated Steel Pan Head Screws, with Split Lock Washer, M3 x 0.50 mm Thread Size, 6 mm Long.

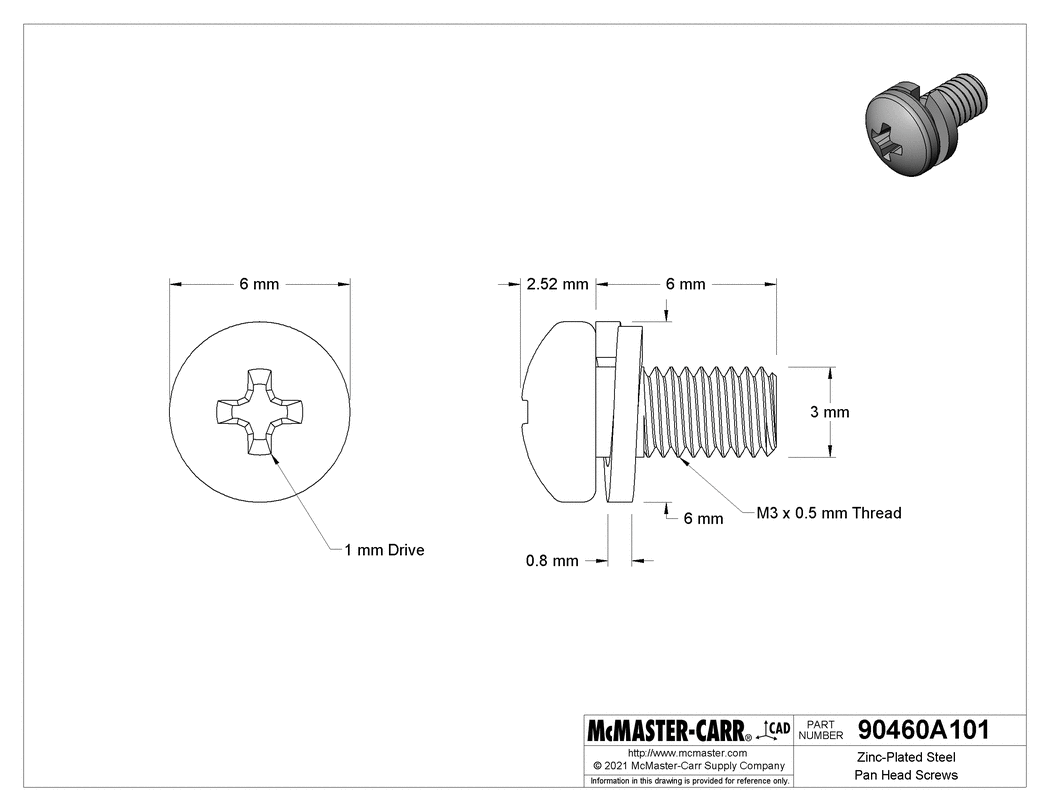

    Technical Drawing of Zinc-Plated Steel Pan Head Screws, with Split Lock Washer, M3 x 0.50 mm Thread Size, 6 mm Long.
    2-D PDF
    00000 per pack of 25
    90460A101
    Delivers tomorrow 7-9 am
    90460A101
    00000 per pack of 25
    Pack of 25
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Locking Type

    Lock Washer

    Thread

    Size

    M3

    Pitch

    0.5 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6h

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Pan

    Profile

    Standard

    Height

    2.52 mm

    Diameter

    6 mm

    Drive

    Style

    Phillips

    Size

    1 mm

    Washer

    Type

    Split

    Material

    Zinc-Plated Steel

    OD

    6 mm

    Thickness

    0.8 mm

    Material

    Zinc-Plated Steel

    Length

    6 mm

    Threading

    Fully Threaded

    Tensile Strength

    60,000 psi

    Specifications Met

    DIN 7985, ISO 7045

    Hardness

    Rockwell B71

    Performance

    Vibration Resistant

    System of Measurement

    Metric

    Country of Origin

    Belgium, China, Croatia, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, United Kingdom, Vietnam

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Stop screws from loosening due to light vibration. These screws have a washer with uneven ends that bite into the screw head and the mating surface as you tighten them. While they're not as vibration resistant as tooth lock washers, they're a good choice for electrical panels, light fixtures, and other light duty assemblies. Also known as Sems screws, the washer rotates freely but is permanently attached. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

    Length is measured from under the head.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
