    Tamper-Resistant Button Head Hex Drive Screws

    Alloy Steel, 1/4"-20 Thread, 3/4" Long

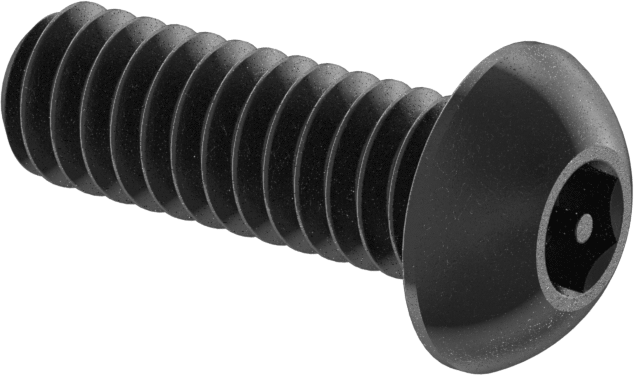

    Image of Product. Front orientation. Tamper-Resistant Button Head Hex Drive Screws, Alloy Steel, 1/4"-20 Thread, 3/4" Long.

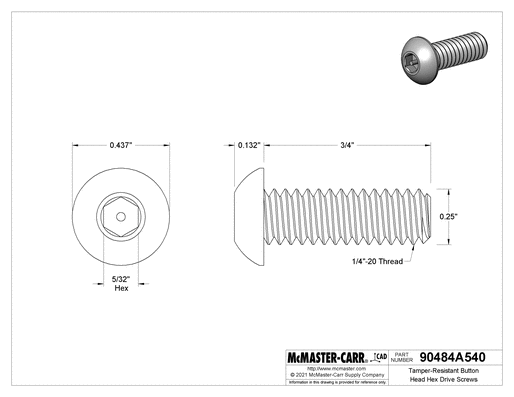

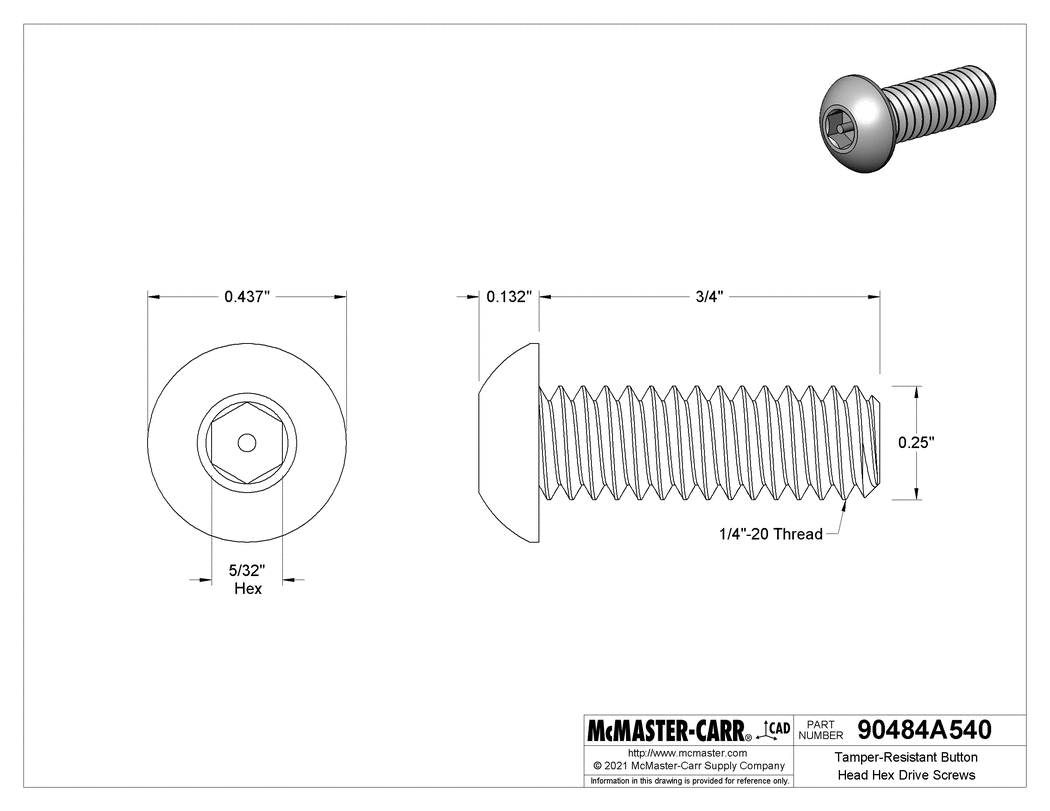

    Technical Drawing of Tamper-Resistant Button Head Hex Drive Screws, Alloy Steel, 1/4"-20 Thread, 3/4" Long.
    2-D PDF
    000000 per pack of 25
    90484A540
    Delivers tomorrow 7-9 am
    90484A540
    000000 per pack of 25
    Pack of 25
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    1/4"-20

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    UNC

    Fit

    Unified Standard Class 3A

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    0.132"

    Diameter

    0.437"

    Drive

    Style

    Tamper-Resistant Hex

    Size

    5/32"

    Material

    Black-Oxide Alloy Steel

    Length

    3/4"

    Threading

    Fully Threaded

    Tensile Strength

    130,000 psi

    Specifications Met

    ASME B18.3, ASTM F835

    Hardness

    Rockwell C39

    Performance

    High Strength, Tamper Resistant

    Screw Size Decimal Equivalent

    0.250"

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Products

    Our strongest hex-drive screws for deterring unauthorized access. Also known as pin-in-hex and pin-in-socket drives, these screws have a security pin in the drive that you can only turn with a tamper-resistant hex driver. The deep six-point opening helps them withstand torque without damaging the drive. Made of alloy steel, they have nearly twice the tensile strength of other screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space.

    Length is measured from under the head.

    Black-Oxide Alloy SteelTypically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.

    L-KeysTurn screws by hand for more control and less chance of overtightening compared to power tools.

    Power Tool BitsPair these bits with your power tools to turn screws more quickly than manual tools.
