18-8 Stainless Steel Button Head Torx Screws

1/4"-20 Thread, 3/4" Long

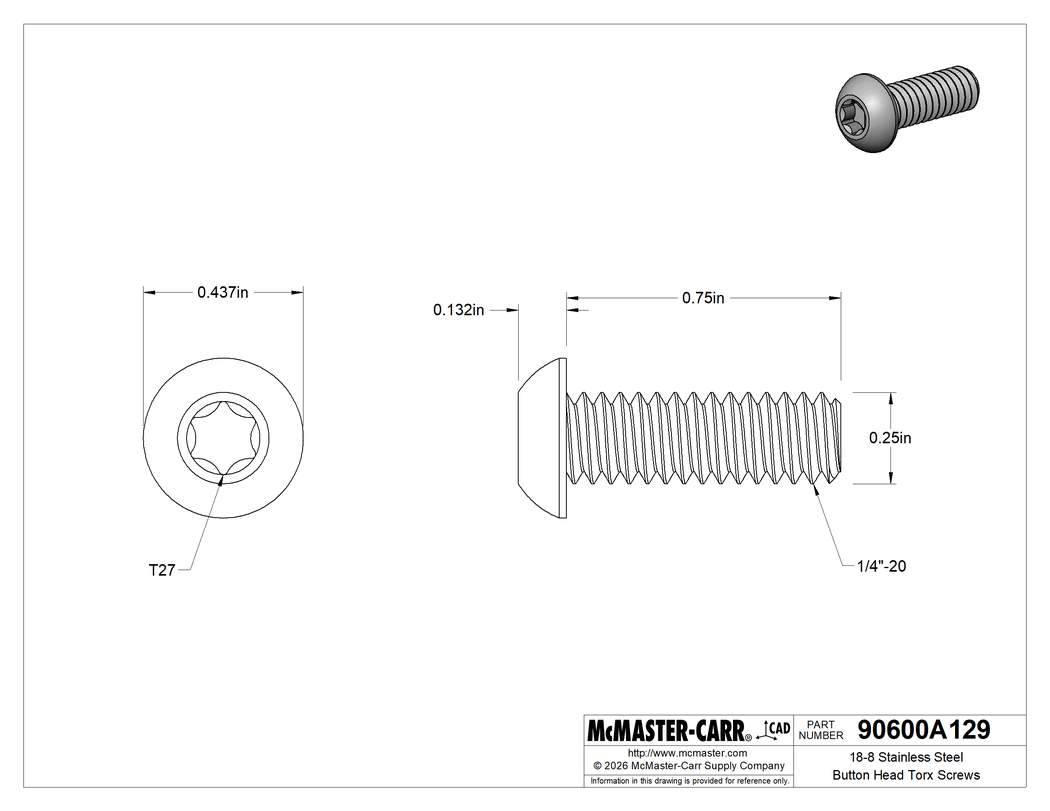

Technical Drawing of 18-8 Stainless Steel Button Head Torx Screws, 1/4"-20 Thread, 3/4" Long.

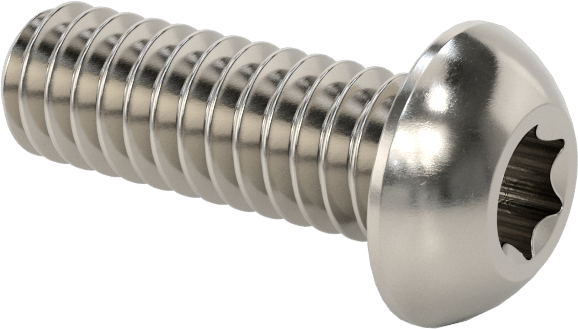

Image of Product. Back orientation. 18-8 Stainless Steel Button Head Torx Screws, 1/4"-20 Thread, 3/4" Long.

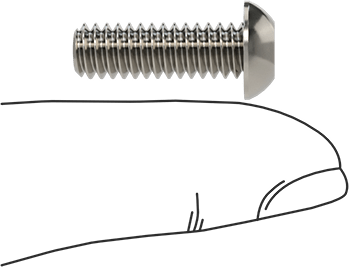

Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Button Head Torx Screws, 1/4"-20 Thread, 3/4" Long.

2-D PDF

000000 per pack of 25

90600A129

In stock

90600A129

000000 per pack of 25

QuantityPack of 25

In stock

Select a compatible file type: Parasolid

Solidworks 2022 and Parasolid files now available

Solidworks 2022, PDF, and DWG files now available

Parasolid files now available

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread
Size	1/4"-20
Direction	Right Hand
Spacing	Coarse
Type	UNC
Fit	Unified Standard Class 3A
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Button
Profile	Standard
Height	0.132"
Diameter	0.437"
Drive
Style	Torx
Size	T27
Length	3/4"
Threading	Fully Threaded
Tensile Strength	60,000 psi
Specifications Met	ASME B18.3
Hardness	Rockwell B55
Material	18-8 Stainless Steel
Passivation	Passivated
Performance	Corrosion Resistant
Screw Size Decimal Equivalent	0.250"
System of Measurement	Inch
Country of Origin	United States
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Our most corrosion-resistant button head Torx screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With a deep six-lobe opening, the Torx drive prevents your driver from slipping and stripping the drive. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives.

Length is measured from under the head.

18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
