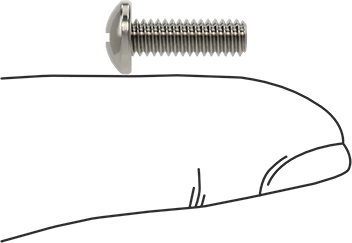

Pan Head Combination Phillips/Slotted Screws
18-8 Stainless Steel, 8-32 Thread Size, 1/2" Long
Thread | |
Size | 8-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 0.115" |
Diameter | 0.322" |
Drive | |
Style | Phillips, Slotted |
Size | No. 2 |
Material | 18-8 Stainless Steel |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 100,000 psi |
Specifications Met | ASME B18.6.3 |
Hardness | Rockwell B100 |
Passivation | Passivated |
Performance | Corrosion Resistant |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Country of Origin | Taiwan, Thailand |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

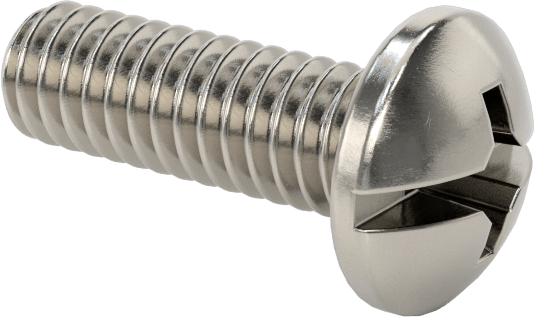

Our most corrosion-resistant combination Phillips/slotted screws. A Phillips driver easily aligns with the cross-shaped opening, while a slotted driver works in a pinch. However, the combination drive won't handle as much torque as a standard Phillips drive can. The pan head has a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

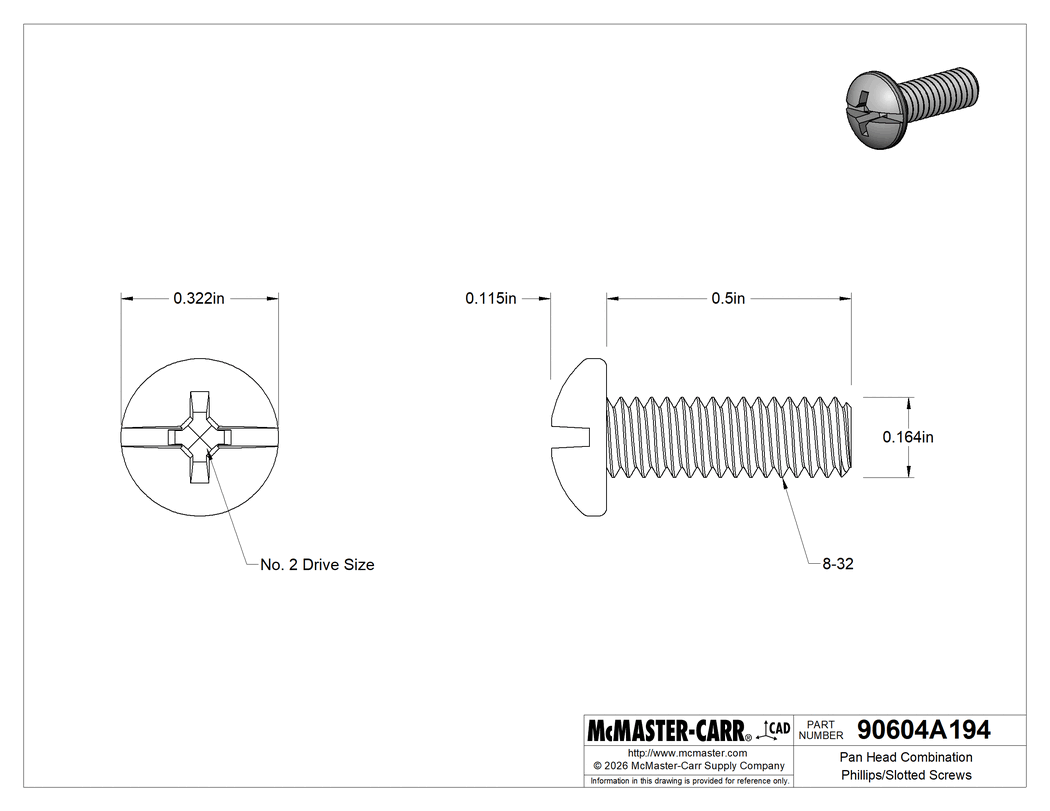

The information in this 3-D model is provided for reference only.
