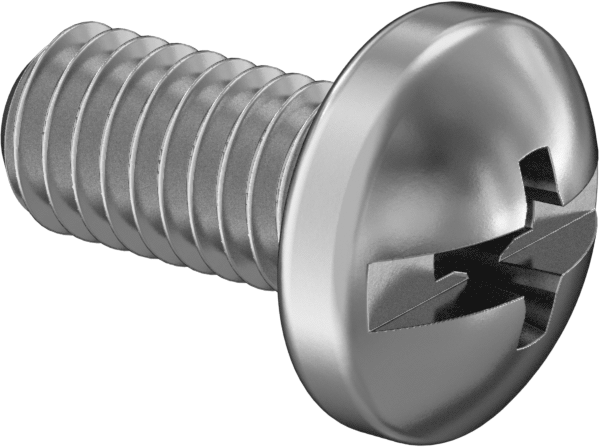

Pan Head Combination Phillips/Slotted Screws
18-8 Stainless Steel M3 x 0.5mm Thread, 6mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2.52 mm |
Diameter | 6 mm |
Drive | |
Style | Phillips, Slotted |
Size | No. 1 |
Length | 6 mm |
Threading | Fully Threaded |
Tensile Strength | 80,000 psi |
Specifications Met | DIN 7985 |
Hardness | Not Rated |
Material | 18-8 Stainless Steel |
Passivation | Passivated |
Performance | Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Taiwan, Thailand |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most corrosion-resistant combination Phillips/slotted screws. A Phillips driver easily aligns with the cross-shaped opening, while a slotted driver works in a pinch. However, the combination drive won't handle as much torque as a standard Phillips drive can. The pan head has a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads.
Length is measured from under the head.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.

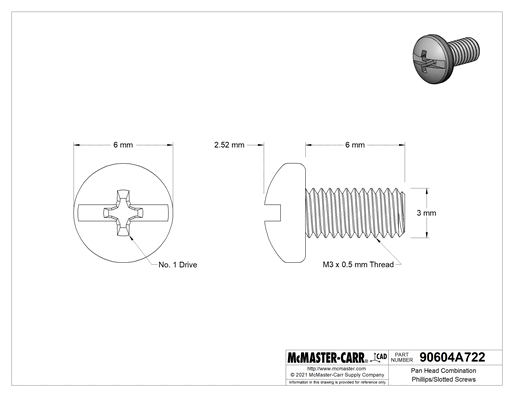

The information in this 3-D model is provided for reference only.
