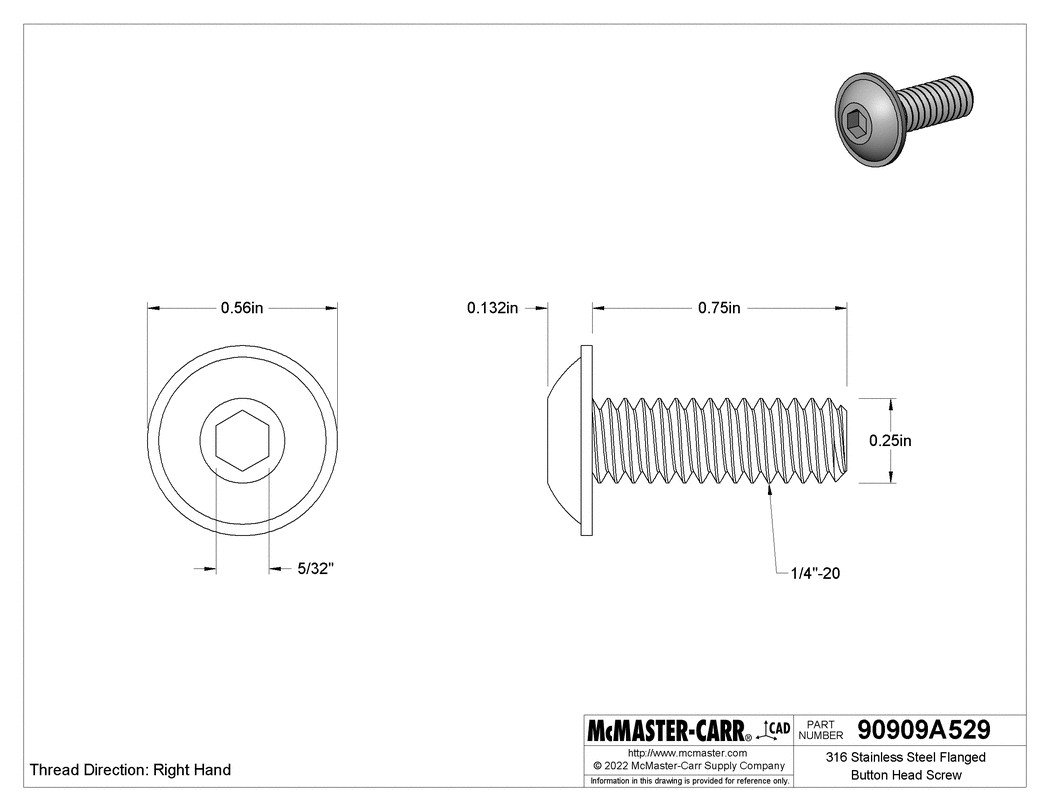

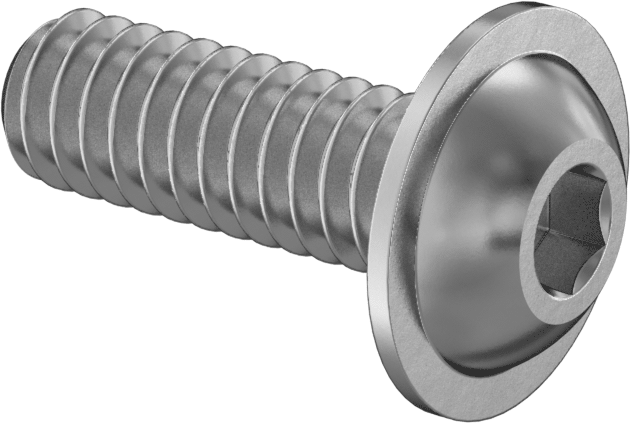

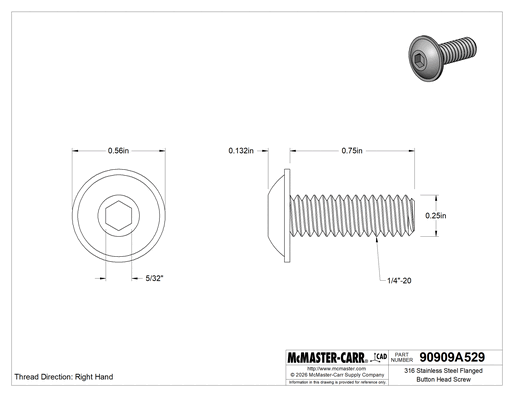

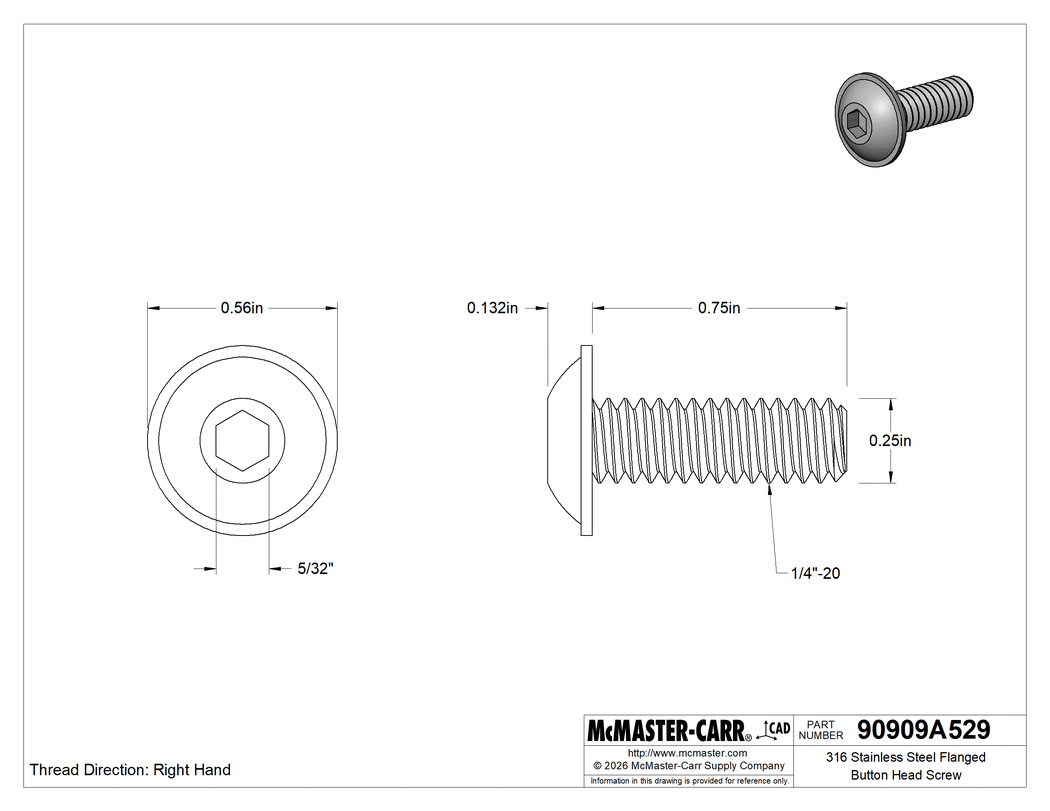

316 Stainless Steel Flanged Button Head Screw
1/4"-20 Thread, 3/4" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 3A |
Tip Type | Flat |
Fastener Head Type | Flanged, Rounded |
Head | |
Style | Button |
Profile | Wide |
Height | 0.132" |
Diameter | 0.429" |
Drive | |
Style | Hex |
Size | 5/32" |
Material | 316 Stainless Steel |
Length | 3/4" |
Flange Diameter | 0.560" |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Hardness | Rockwell B70 |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Secure thin and soft materials in corrosive environments without needing a separate washer. A flange on these screws spreads pressure evenly over a wide area. Made of stainless steel, they won't rust, but they're not as strong as alloy steel. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Head height includes the flange. Length is measured from under the flange.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.
The information in this 3-D model is provided for reference only.
