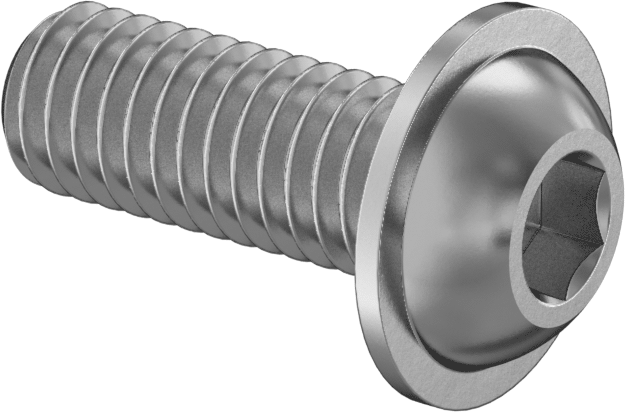

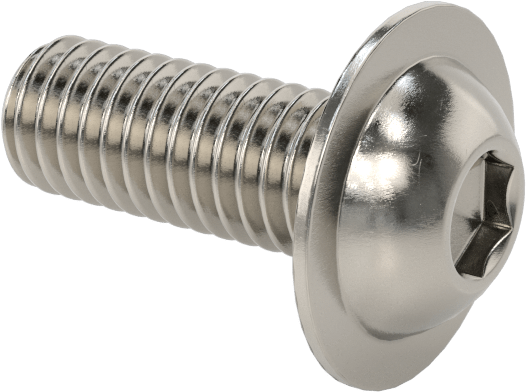

316 Stainless Steel Flanged Button Head Screw
M6 x 1mm Thread, 16mm Long
Thread | |
Size | M6 |
Pitch | 1 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Flanged, Rounded |
Head | |
Style | Button |
Profile | Wide |
Height | 3.3 mm |
Diameter | 10 mm |
Drive | |
Style | Hex |
Size | 4 mm |
Material | 316 Stainless Steel |
Length | 16 mm |
Flange Diameter | 13.6 mm |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Specifications Met | ISO 7380 |
Hardness | Not Rated |
Passivation | Passivated |
Performance | Chemical Resistant, Highly Corrosion Resistant |
System of Measurement | Metric |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Secure thin and soft materials in corrosive environments without needing a separate washer. A flange on these screws spreads pressure evenly over a wide area. Made of stainless steel, they won't rust, but they're not as strong as alloy steel. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Head height includes the flange. Length is measured from under the flange.
Highly Corrosion-Resistant 316 Stainless Steel—Superior to 18-8 stainless steel, these screws won't degrade when exposed to harsh weather, salt water, and most chemicals.

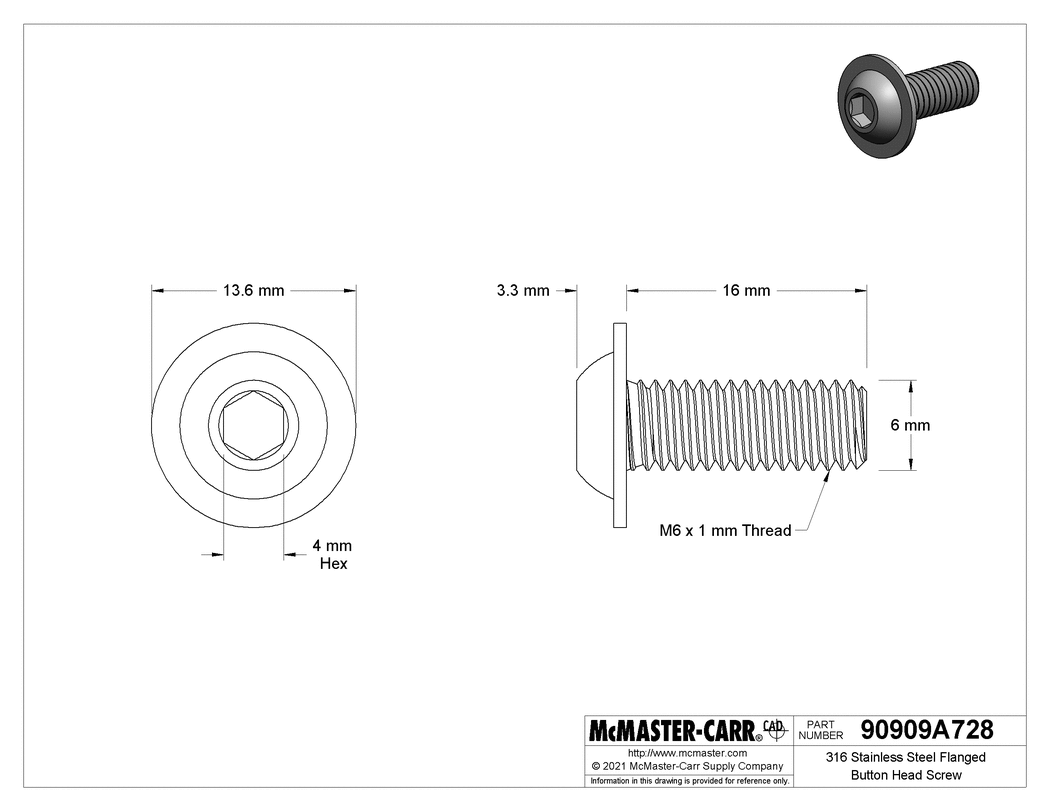

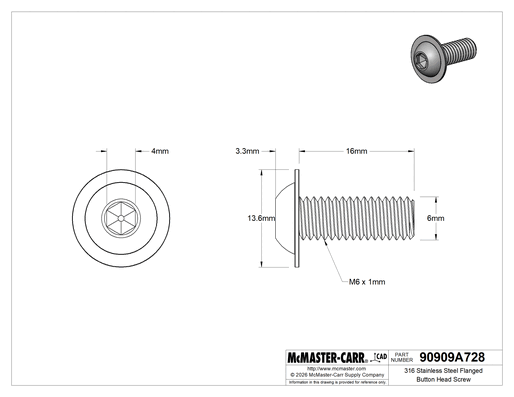

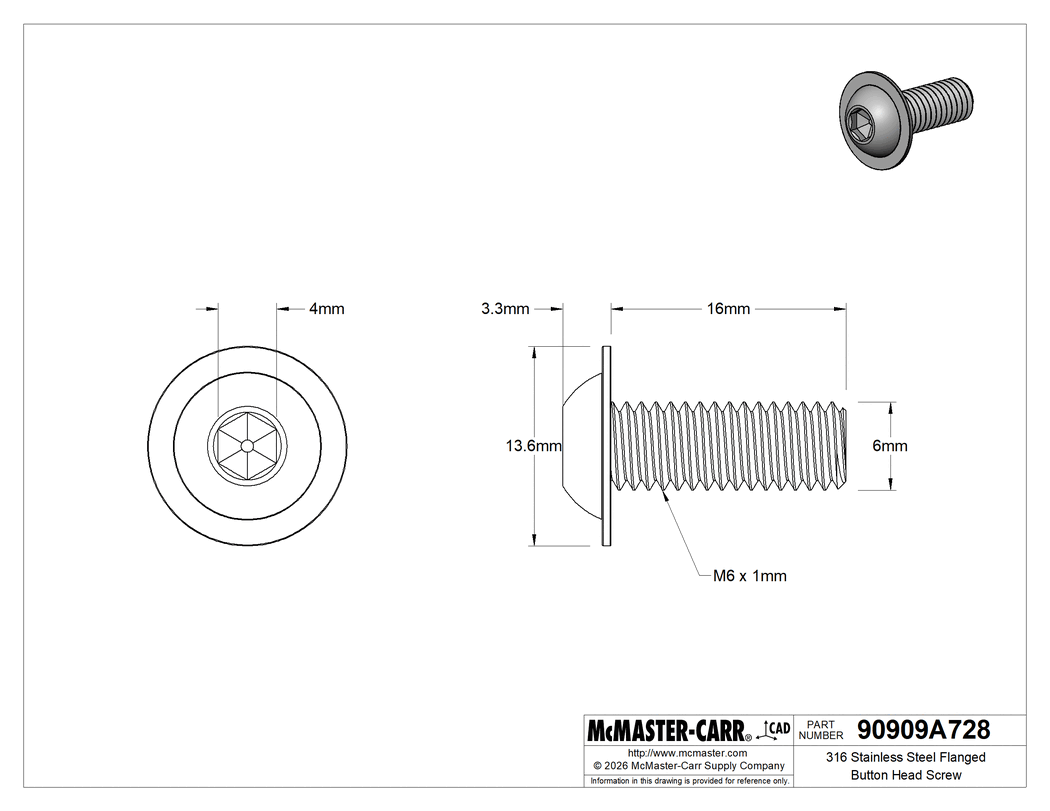

The information in this 3-D model is provided for reference only.
