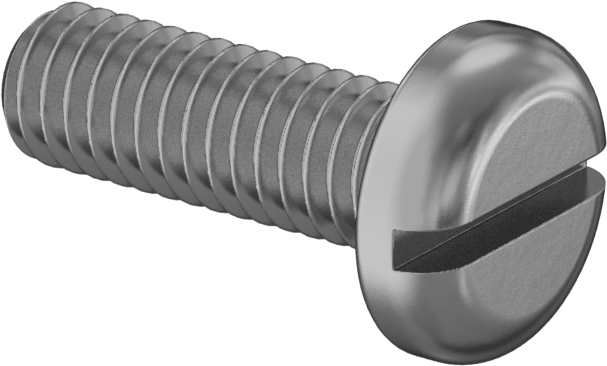

Brass Pan Head Slotted Screws
M4 x 0.7mm Thread, 12mm Long
Thread | |
Size | M4 |
Pitch | 0.7 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Pan |
Profile | Standard |
Height | 2.4 mm |
Diameter | 8 mm |
Drive Style | Slotted |
Material | Brass |
Length | 12 mm |
Threading | Fully Threaded |
Tensile Strength | 50,000 psi |
Specifications Met | DIN 85, ISO 1580 |
Hardness | Not Rated |
Performance | Conductive, Corrosion Resistant, Nonmagnetic |
System of Measurement | Metric |
Country of Origin | China, India, Italy |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 741533.8550 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These pan head slotted screws have a shiny look and won't rust in damp environments. Made of brass, they're also conductive and nonmagnetic, making them useful for electrical applications. Pan heads have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.
Length is measured from under the head.

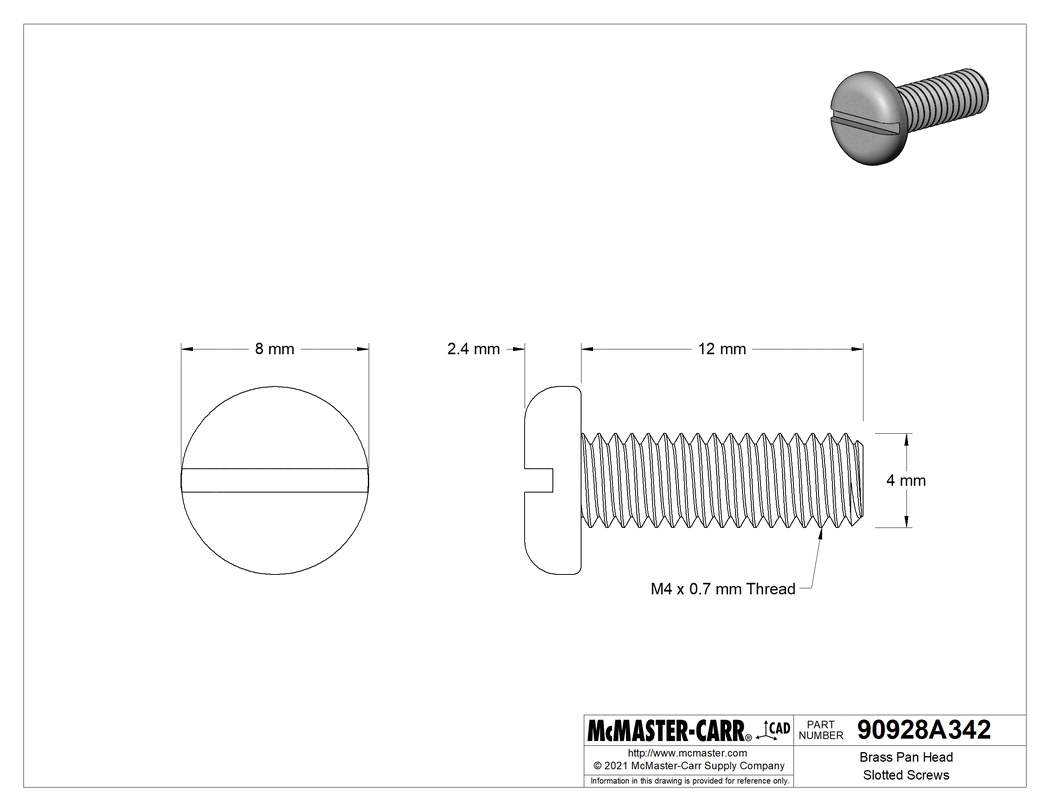

The information in this 3-D model is provided for reference only.
