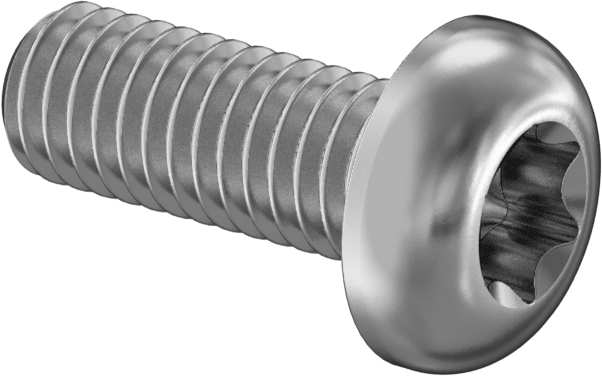

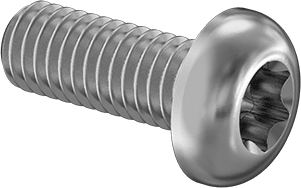

High-Strength A286 Stainless Steel Button Head Torx Screw
M3 x 0.50 mm Thread, 8mm Long
Thread | |
Size | M3 |
Pitch | 0.5 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 1.65 mm |
Diameter | 5.7 mm |
Drive | |
Style | Torx |
Size | T10 |
Length | 8 mm |
Threading | Fully Threaded |
Tensile Strength | 140,000 psi |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Hardness | Rockwell C31 |
Material | A286 Stainless Steel |
Performance | Chemical Resistant, Corrosion Resistant, High Strength, High Temperature |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Our most corrosion-resistant button head Torx screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With a deep six-lobe opening, the Torx drive prevents your driver from slipping and stripping the drive. Also known as star drives, they withstand more torque than slotted, Phillips, and hex drives.
Length is measured from under the head.
High-Temperature High-Strength A286 Stainless Steel—These screws are stronger than 18-8 stainless steel and withstand higher temperatures. They also won't corrode from chemicals, such as bleach and chlorine. However, they don't hold up to salt water as well as 316 stainless steel.
Install
Adhere

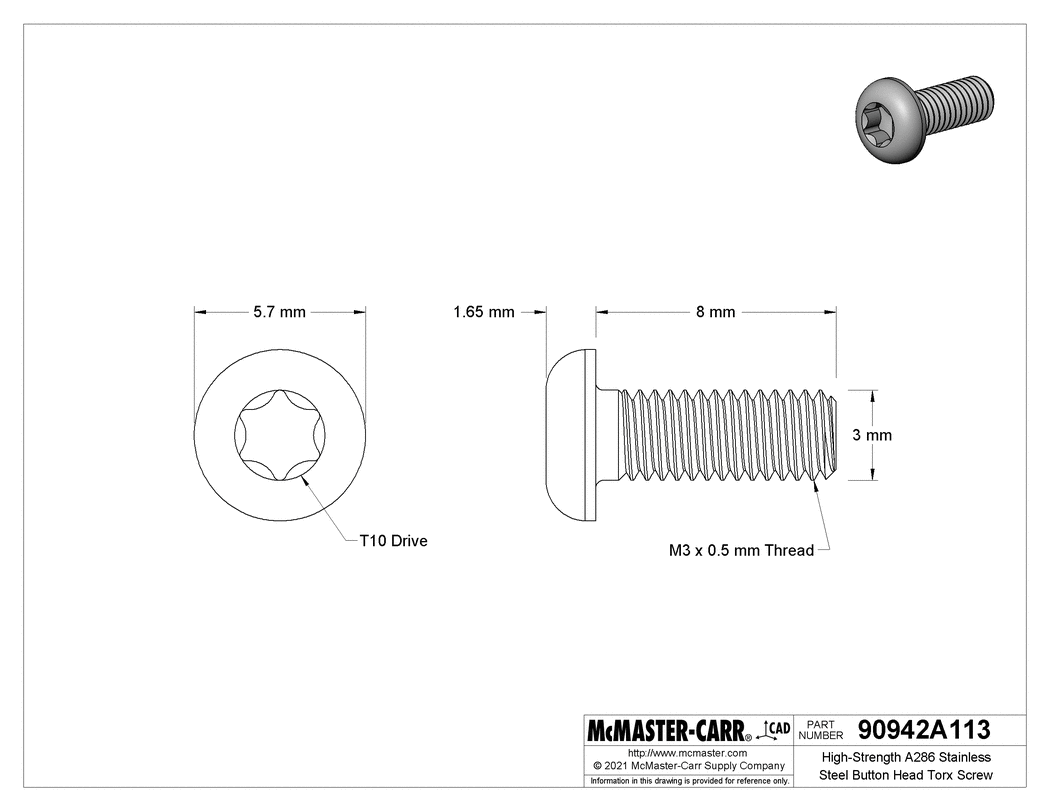

The information in this 3-D model is provided for reference only.
