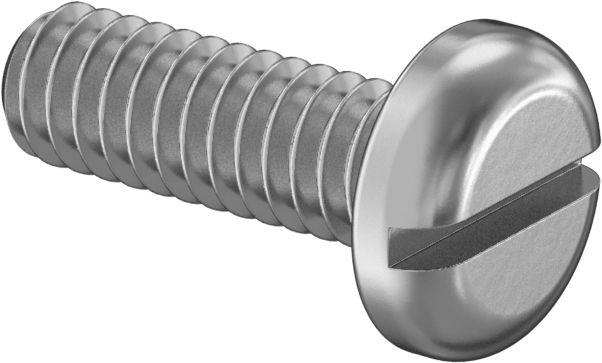

18-8 Stainless Steel Pan Head Slotted Screws

Standard Head, M2 x 0.4 mm Thread, 6 mm Long

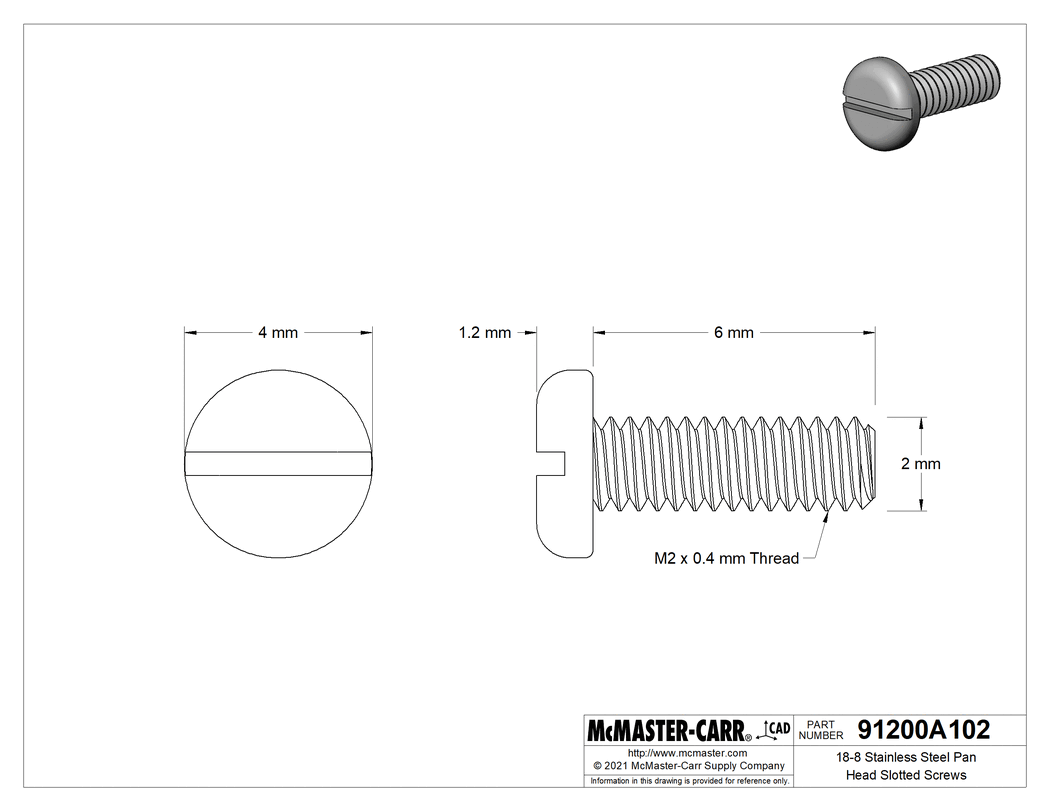

Technical Drawing of 18-8 Stainless Steel Pan Head Slotted Screws, Standard Head, M2 x 0.4 mm Thread, 6 mm Long.

2-D PDF

00000 per pack of 100

91200A102

In stock

91200A102

00000 per pack of 100

QuantityPack of 100

In stock

Select a compatible file type: Parasolid

Solidworks 2022 and Parasolid files now available

Solidworks 2022, PDF, and DWG files now available

Parasolid files now available

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Thread
Size	M2
Pitch	0.4 mm
Direction	Right Hand
Spacing	Coarse
Type	Metric
Fit	Metric Class 6g
Tip Type	Flat
Fastener Head Type	Rounded
Head
Style	Pan
Profile	Standard
Height	1.2 mm
Diameter	4 mm
Drive Style	Slotted
Length	6 mm
Threading	Fully Threaded
Tensile Strength	70,000 psi
Specifications Met	DIN 85, ISO 1580
Hardness	Not Rated
Material	18-8 Stainless Steel
Passivation	Passivated
Performance	Corrosion Resistant
System of Measurement	Metric
Country of Origin	Thailand
DFARS Compliance	Not Specialty Metals Compliant
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731815.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No

The most corrosion-resistant pan head slotted screws we offer. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.

Length is measured from under the head.

18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they don't hold up to the harsh chemicals that 316 stainless steel can.
