    Button Head Hex Drive Screw

    Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 12 mm Long

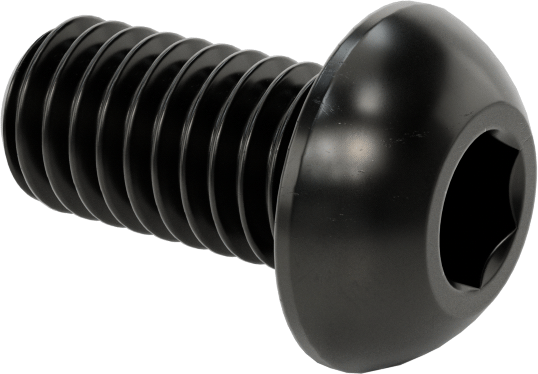

    Image of Product. Front orientation. Button Head Hex Drive Screw, Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 12 mm Long.

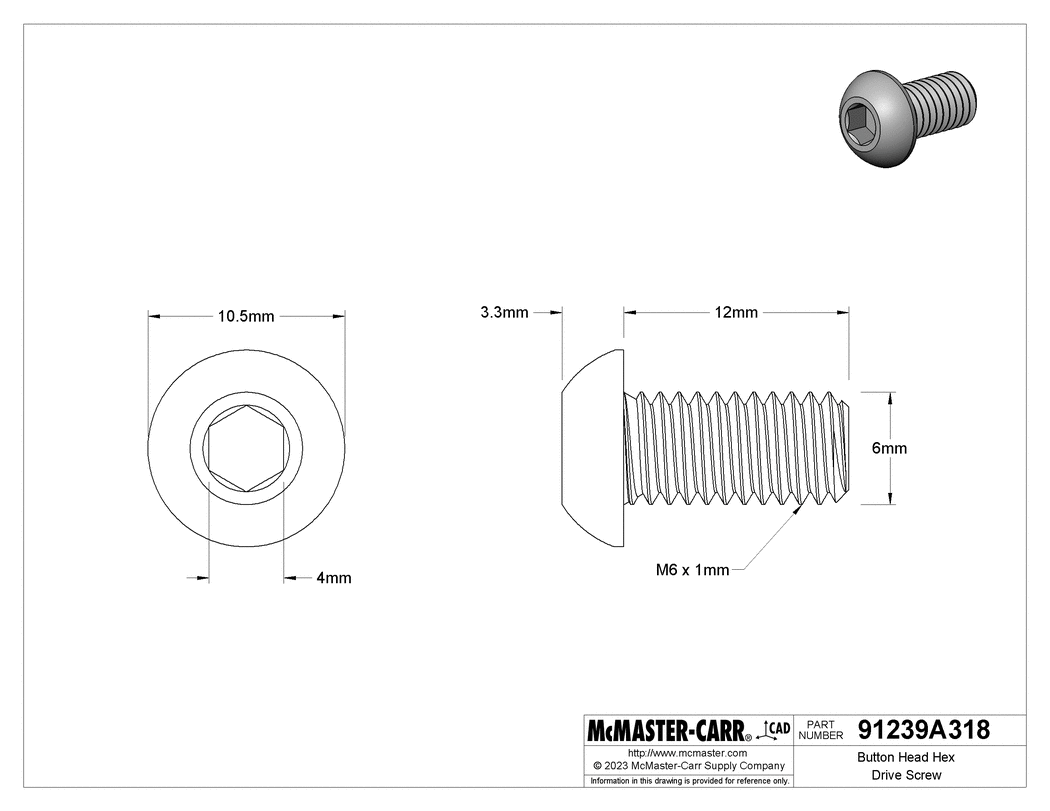

    Technical Drawing of Button Head Hex Drive Screw, Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 12 mm Long.
    Image of Product. Back orientation. Button Head Hex Drive Screw, Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 12 mm Long.

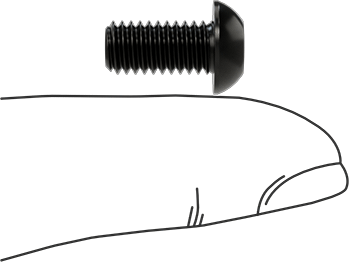

    Image of Product. Side1 orientation. Contains SizingReference. Button Head Hex Drive Screw, Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 12 mm Long.
    2-D PDF
    000000 per pack of 100
    91239A318
    In stock
    91239A318
    000000 per pack of 100
    Pack of 100
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M6

    Pitch

    1 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    3.3 mm

    Diameter

    10.5 mm

    Drive

    Style

    Hex

    Size

    4 mm

    Length

    12 mm

    Threading

    Fully Threaded

    Tensile Strength

    120,000 psi

    Specifications Met

    ISO 7380

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Fastener Strength Grade/Class

    Class 10.9

    Hardness

    Rockwell C32

    Material

    Black-Oxide Alloy Steel

    Performance

    High Strength

    System of Measurement

    Metric

    Country of Origin

    Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Made of alloy steel, these screws have nearly twice the tensile strength of other steel screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.

    Length is measured from under the head.

    Black-Oxide Alloy Steel—Typically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.

    Compatible Products for This Rounded Head Screw
    Adhere

    Threadlockers

    2 products

    The information in this 3-D model is provided for reference only.
