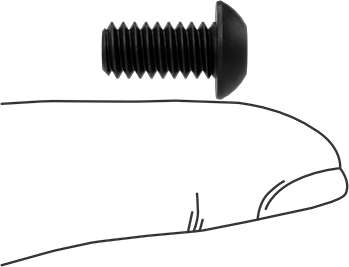

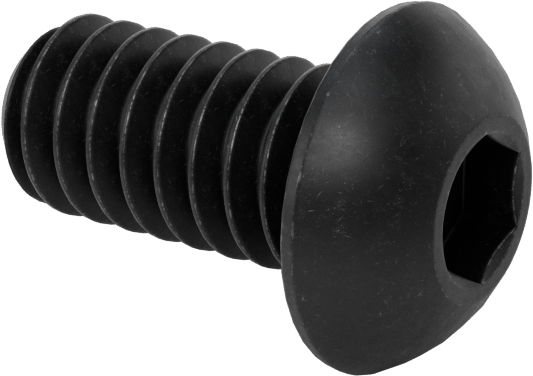

Black-Oxide Button Head Hex-Drive Screw
Alloy Steel, 1/4"-20 Thread Size, 1/2" Long
Thread | |
Size | 1/4"-20 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 3A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 0.132" |
Diameter | 0.437" |
Drive | |
Style | Hex |
Size | 5/32" |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 140,000 psi |
Specifications Met | ASME B18.3, ASTM F835 |
Hardness | Rockwell C39 |
Material | Black-Oxide Alloy Steel |
Performance | High Strength |
Screw Size Decimal Equivalent | 0.250" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made of alloy steel, these screws have nearly twice the tensile strength of other steel screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.
Black-Oxide Alloy Steel—Typically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.
Adhere

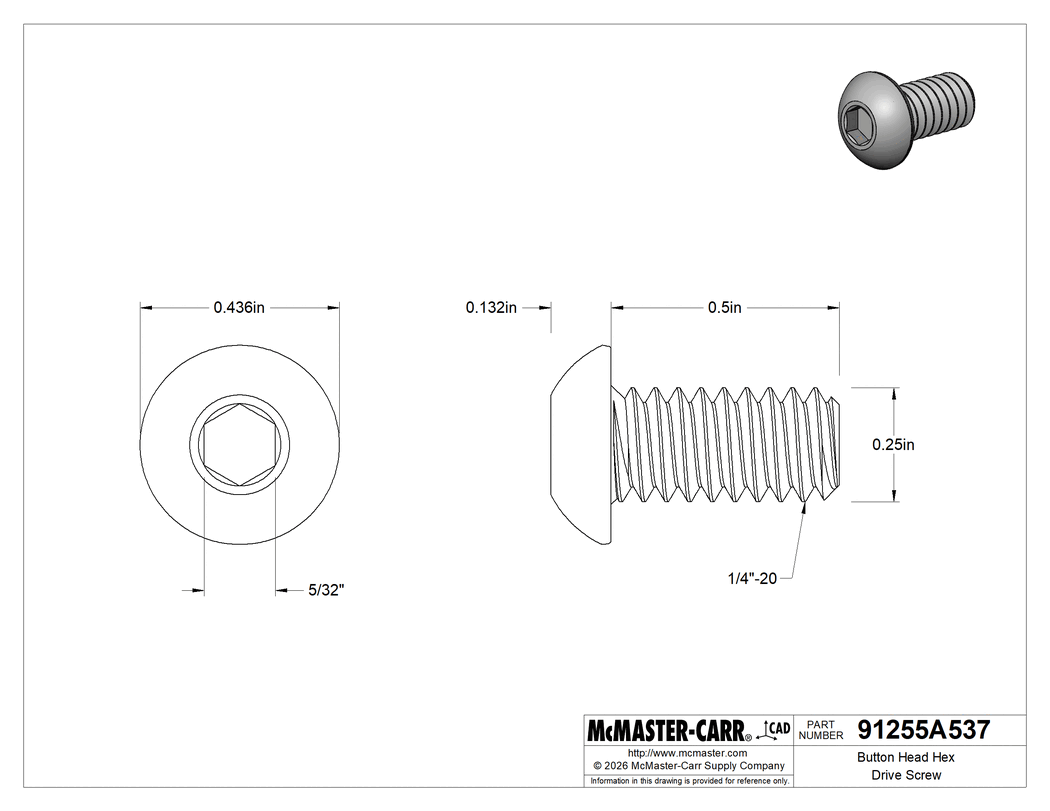

The information in this 3-D model is provided for reference only.
