    Zinc-Plated Steel Narrow Cheese Head Slotted Screw

    M6 x 1 mm Thread, 12 mm Long, 10 mm Head Diameter

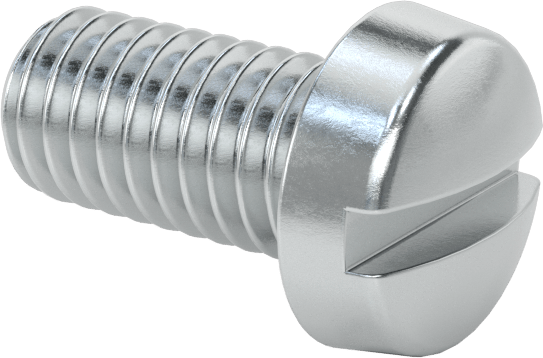

    Image of Product. Front orientation. Zinc-Plated Steel Narrow Cheese Head Slotted Screw, M6 x 1 mm Thread, 12 mm Long, 10 mm Head Diameter.

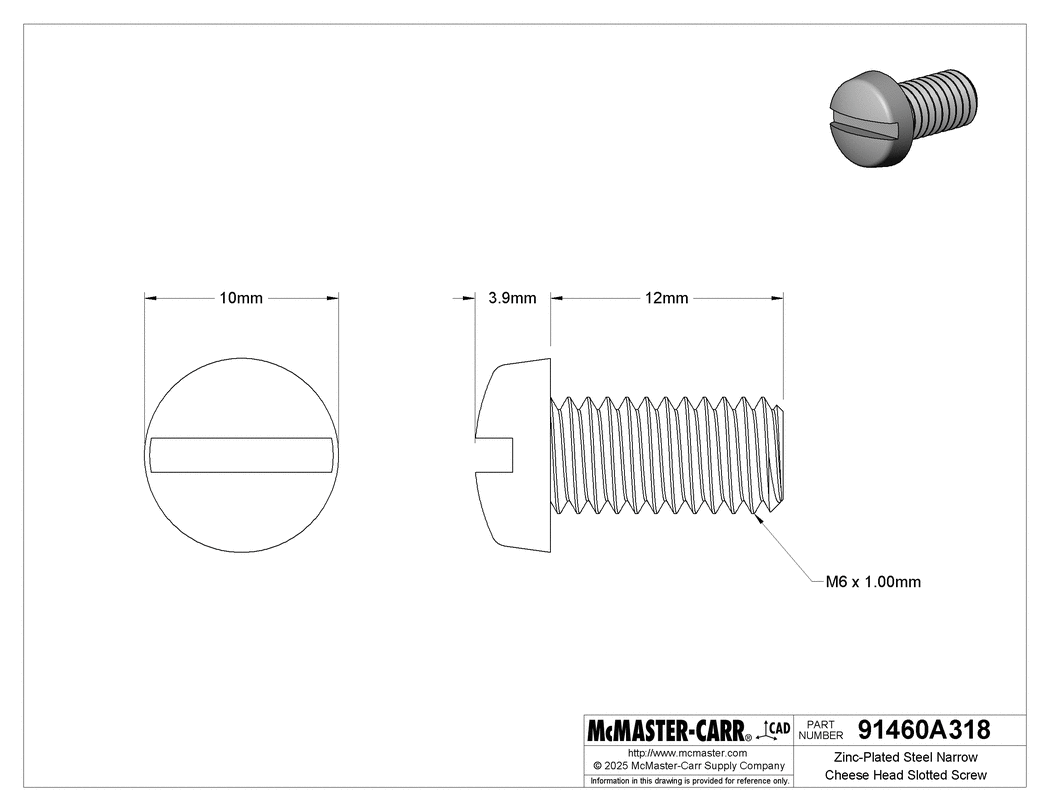

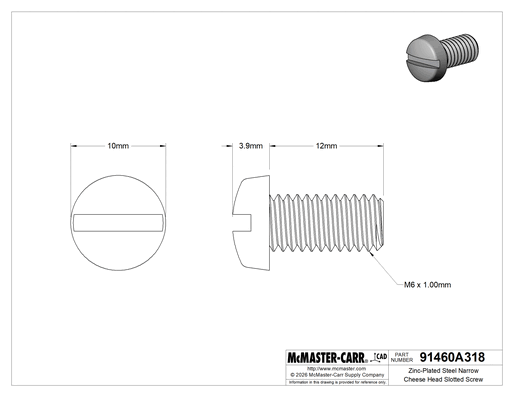

    Technical Drawing of Zinc-Plated Steel Narrow Cheese Head Slotted Screw, M6 x 1 mm Thread, 12 mm Long, 10 mm Head Diameter.
    Image of Product. Back orientation. Zinc-Plated Steel Narrow Cheese Head Slotted Screw, M6 x 1 mm Thread, 12 mm Long, 10 mm Head Diameter.

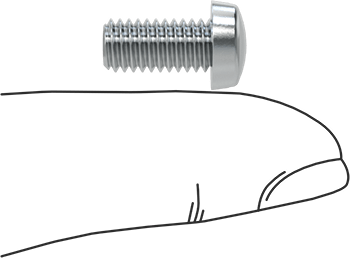

    Image of Product. Side1 orientation. Contains SizingReference. Zinc-Plated Steel Narrow Cheese Head Slotted Screw, M6 x 1 mm Thread, 12 mm Long, 10 mm Head Diameter.
    2-D PDF
    000000 per pack of 100
    91460A318
    Delivers tomorrow 7-9 am
    91460A318
    000000 per pack of 100
    Pack of 100
    Delivers tomorrow 7-9 am
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M6

    Pitch

    1 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6h

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Cheese

    Profile

    Narrow

    Height

    3.9 mm

    Diameter

    10 mm

    Drive Style

    Slotted

    Material

    Zinc-Plated Steel

    Length

    12 mm

    Threading

    Fully Threaded

    Tensile Strength

    60,000 psi

    Specifications Met

    DIN 84, ISO 1207

    Hardness

    Rockwell B71

    System of Measurement

    Metric

    Country of Origin

    Belgium, China, France, Germany, India, Indonesia, Italy, Japan, Malaysia, Philippines, Poland, South Korea, Switzerland, Taiwan, Thailand, Vietnam

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    One of the narrowest rounded head styles, the cheese head fits into tight spaces, such as crowded electrical panels. With only two contact points, the slotted drive can't withstand much torque, so it's best to hand-tighten them.

    Length is measured from under the head.

    Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.

    The information in this 3-D model is provided for reference only.
